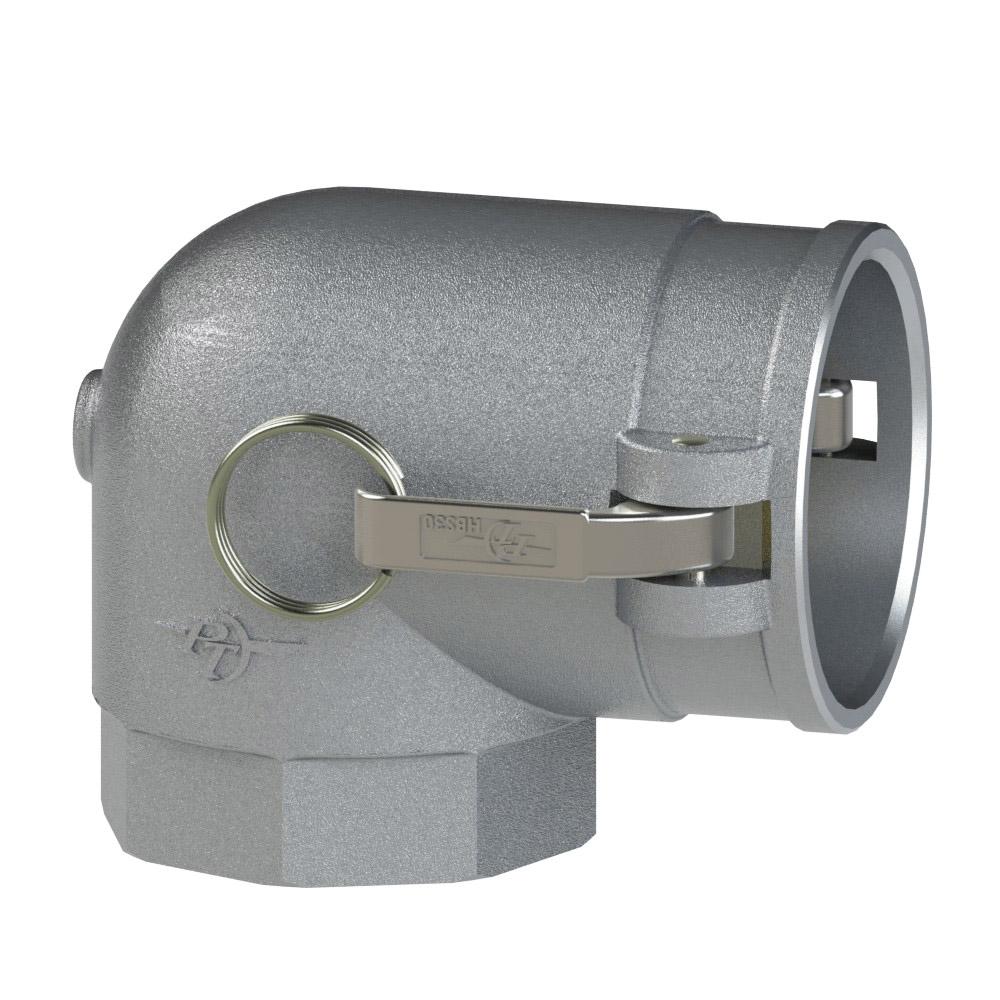

1000812 (12H) by PT-Coupling | Cam & Groove Adapter | Type H | 90° Elbow | 1-1/4" Female NPT x 1-1/4" Coupler | Aluminum/HBS | Buna-N Seal
PT Coupling
Cam & Groove (Camlock) Adapter | Type H | 90° Elbow | Female NPT x Coupler | Aluminum/HBS | Buna-N Seal
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $47.63 |
| 40–79 | $43.07 |
| 80+ | $38.00 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Cam & Groove Type:
Type D
Ends Configuration:
Material(s):
Seal Material(s):
| Features & Applications: | |||
|---|---|---|---|
|
| Part Name |
Item # | Orientation | Female NPT Thread |
Coupler Size |
Max. Allowable Working Press. (PSI)* |
|---|---|---|---|---|---|
| 10H | 1000810 | 90° | 1" | 1" | 250 PSI |
| 12H | 1000812 | 90° | 1-1/4" | 1-1/4" | 250 PSI |
| 20H | 1000820 | 90° | 2" | 2" | 250 PSI |
| 25H | 1000825 | 90° | 2-1/2" | 2-1/2" | 200 PSI |
| 30H | 1000830 | 90° | 3" | 3" | 200 PSI |
| 40H | 1000840 | 90° | 4" | 4" | 150 PSI |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
