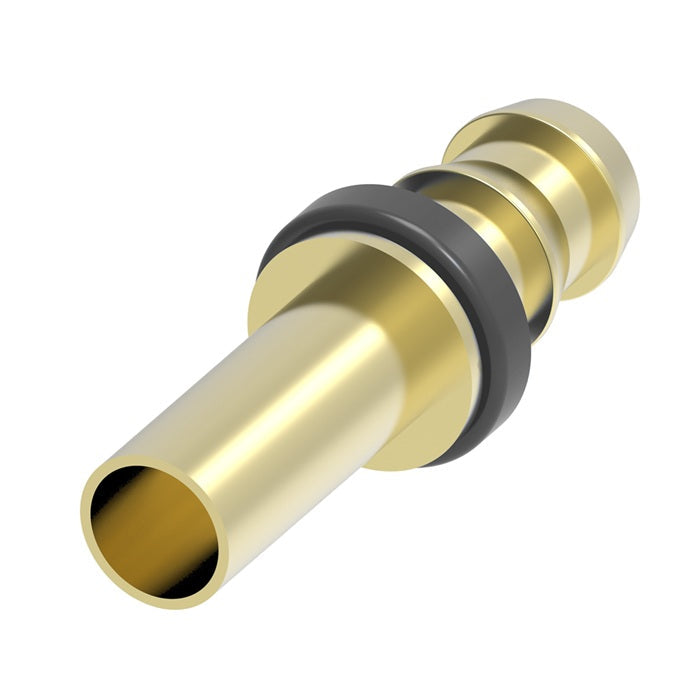

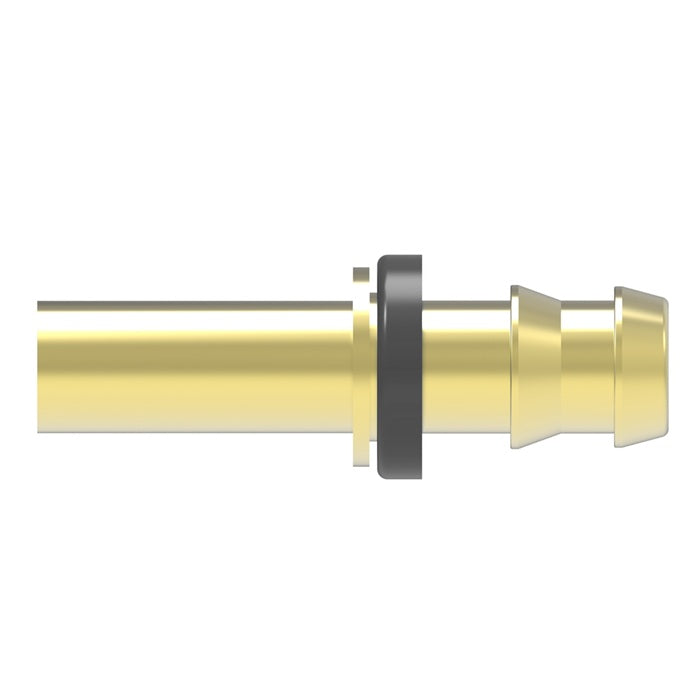

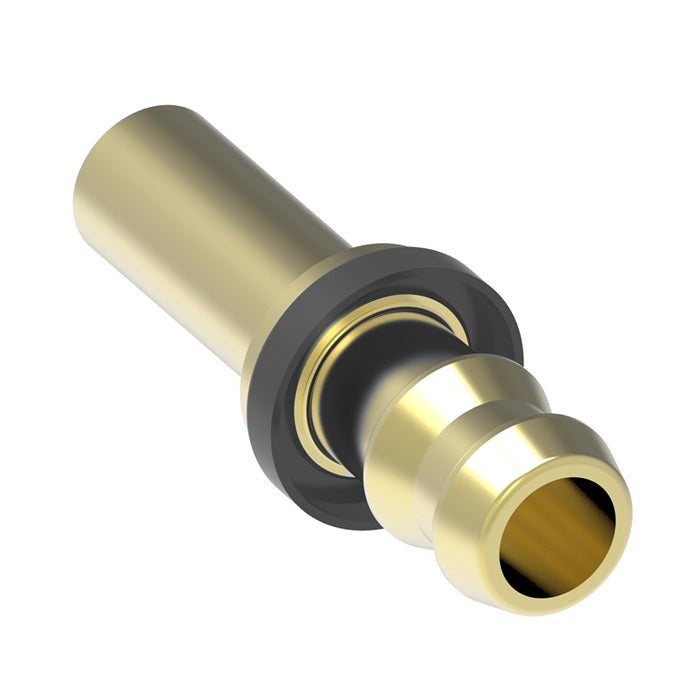

10006B-X06 Weatherhead by Danfoss | Straight Tube Rigid Field Attachable Push-On Fitting | 100 'B' Series Barb-Tite | -06 Tube Size x -06 Push-On Hose Barb | Brass
Minimum Order Quantity: 5 Units
Weatherhead by Danfoss
Push-On Field Attachable Fitting - 100 'B' Series Barb-Tite - Straight Tube Rigid - Straight
Ideal Fitting for low pressure shop or service air lines. Often used for low pressure lube and oil lines.
Easy to assemble - just push the Fitting into the hose. No clamps needed.
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $7.60 |
| 40–79 | $6.87 |
| 80+ | $6.06 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Material(s):
Compatible Series:
| Note: | |||
|---|---|---|---|
|
|||
| Material: | |||
|
|||
| Compatible Hose: | |||
|
|||
| Assembly instructions: | |||
|
|||
| Disassembly instructions: | |||
|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Brass Part Number |
Hose I.D. |
Tube Size |
Thread Size |
A | Hose Cut-off Factor |
Hole Diameter |
Hex F |
| 10004B-X03 | 1/4" | 3/16" | 0.188" | 1.53" | 0.78" | 0.172" | 13/32" |
| 10004B-X04 | 1/4" | 1/4" | .250" | 1.55" | 0.80" | 0.172" | 13/32" |
| 10004B-X05 | 1/4 " | 5/16" | 0.312" | 1.65" | 0.90" | 0.172" | 13/32" |
| 10005B-X05 | 5/16" | 5/16" | 0.312" | 2.02" | 1.21" | 0.228" | 7/16" |
| 10006B-X06 | 3/8" | 3/8" | 0.375" | 2.13" | 1.26" | 0.297" | 1/2" |
Note: Drawings may differ from actual parts.
