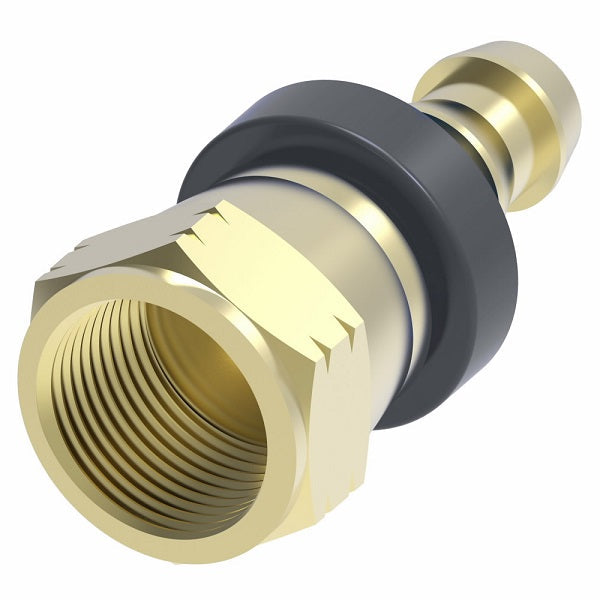

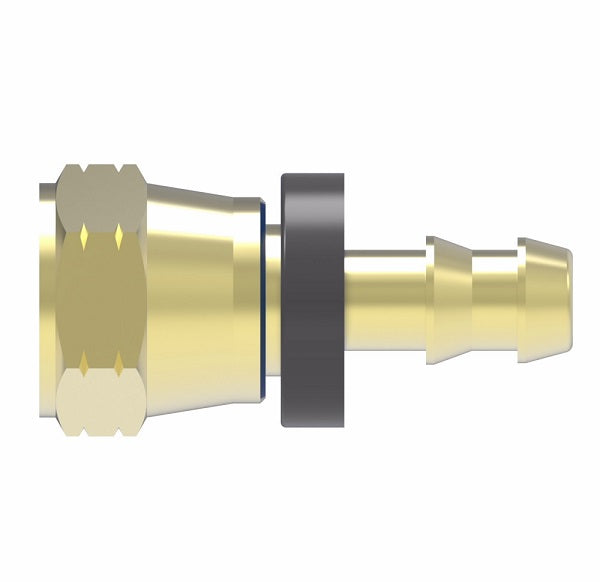

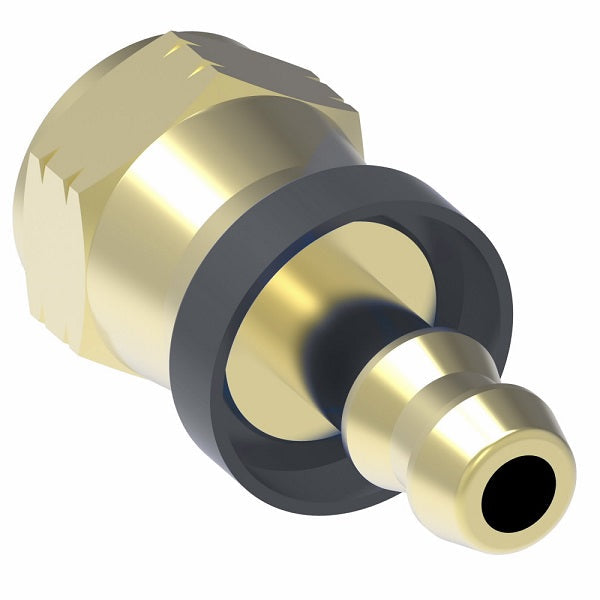

10006B-605 Weatherhead by Danfoss | Female JIC 37° Swivel Field Attachable Push-On Fitting | 100 'B' Series Barb-Tite | -05 Female JIC 37° Swivel x -06 Push-On Hose Barb | Brass
10006B-605 Weatherhead by Danfoss | Female JIC 37° Swivel Field Attachable Push-On Fitting | 100 'B' Series Barb-Tite | -05 Female JIC 37° Swivel x -06 Push-On Hose Barb | Brass
10006B-605 Weatherhead by Danfoss | Female JIC 37° Swivel Field Attachable Push-On Fitting | 100 'B' Series Barb-Tite | -05 Female JIC 37° Swivel x -06 Push-On Hose Barb | Brass

10006B-605 Weatherhead by Danfoss | Female JIC 37° Swivel Field Attachable Push-On Fitting | 100 'B' Series Barb-Tite | -05 Female JIC 37° Swivel x -06 Push-On Hose Barb | Brass

Sale price$15.50

Weatherhead by Danfoss
Push-On Field Attachable Fitting - 100 'B' Series Barb-Tite - Female JIC 37° Swivel - Straight

Ideal Fitting for low pressure shop or service air lines. Often used for low pressure lube and oil lines.

Easy to assemble - just push the Fitting into the hose. No clamps needed.
Buy More, Save More!
Quantity Price Each
10–39 $14.57
40–79 $13.18
80+ $11.63
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 5/16in Female JIC
  • 3/8in Push-On Hose Barb
Material(s):
  • Brass
Note:
  • Pressure: Determined by maximum working pressure for hose size.
  • CAUTION: Sealing integrity may be damaged by the use of clamps.
  • Label Set: FS-500
Material:
  • CA360 Brass
Compatible Hose:
  • H100, H101, H201, H332, 35FH
Assembly instructions:
  • To determine the correct length of hose, subtract the cut-off factor for each end Fitting from the overall length of assembly.
  • 1. Lubricate insert.
  • 2. Hold hose at angle as shown and push on and up over first barb.
  • 3. Continue to push straight on until hose is seated under protective plastic cap. (Keep hand back from hose end area so that hose can expand.)
  • Assembly Lubricant:
Disassembly instructions:
  • 1. Split hose as shown. Do not cut completely through hose. Sealing edge of barb could be damaged.
  • 2. Bend hose and remove with quick pull.
Brass
Part Number 		Hose
I.D.		 Tube
Size		 Thread
Size		 A Hose Cut-off
Factor		 Hole
Diameter		 Hex
F
10004B-604* 1/4" 1/4" 7/16-20 1.38" 0.74" 0.172" 9/16"
10004B-605* 1/4" 5/16" 1/2-20 1.42" 0.81" 0.172" 5/8"
10005B-605* 5/16" 5/16" 1/2-20 1.54" 0.83" 0.234" 11/16"
10006B-605* 3/8" 5/16" 1/2-20 1.60" 0.88" 0.297" 11/16"
10006B-606 3/8" 3/8" 9/16-18 1.66" 0.88" 0.297" 11/16"
10008B-608* 1/2" 1/2" 3/4-16 2.06" 1.06" 0.391" 7/8"
10010B-610* 5/8" 5/8" 7/8-14 2.67" 1.19" 0.484" 1"
10012B-610* 3/4" 5/8" 7/8-14 2.69" 1.25" 0.511" 1"
10012B-612 3/4" 3/4" 1-1/16-12 2.69" 1.19" 0.609" 1-1/4"

* Swivel nuts are universal - both SAE 37° and 45° connections.

Note: Drawings may differ from actual parts.
