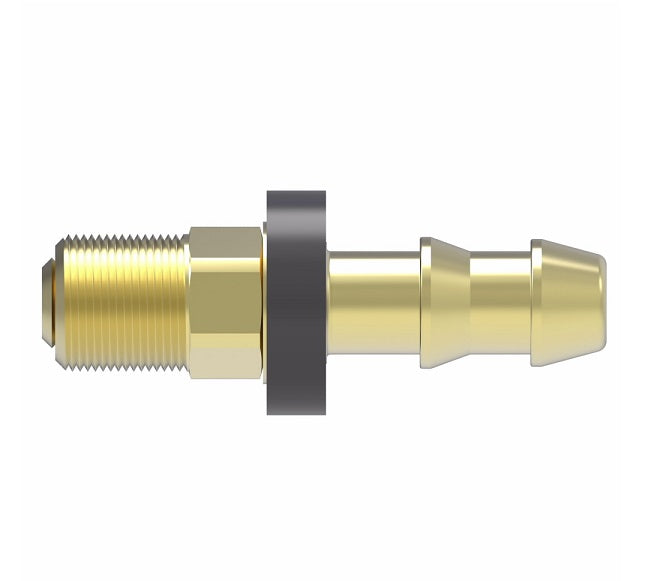

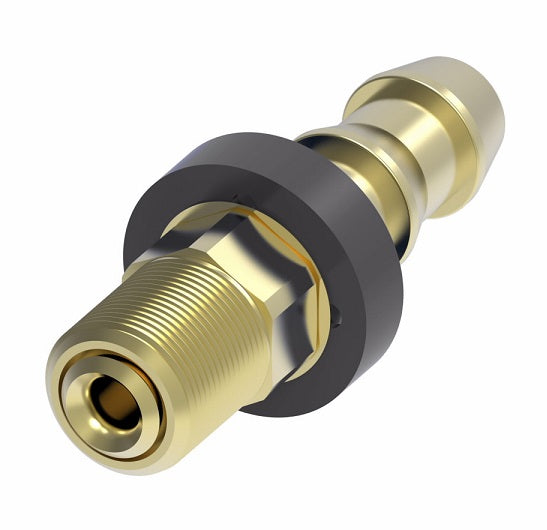

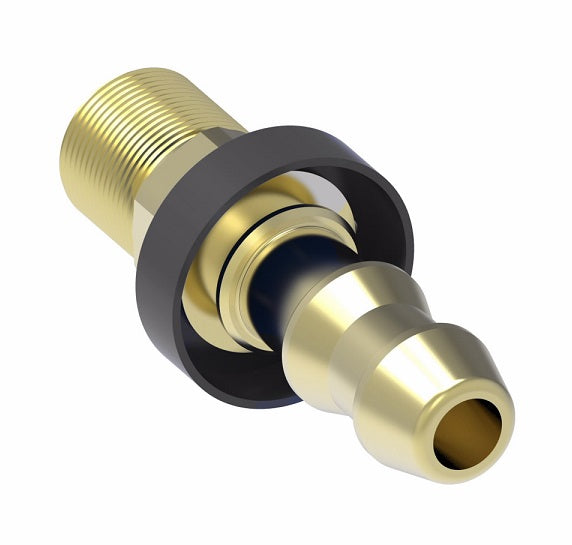

10005B-B04 Weatherhead by Danfoss | Male Inverted Swivel Field Attachable Push-On Fitting | 100 'B' Series Barb-Tite | -04 Male Inverted Swivel x -05 Push-On Hose Barb | Brass
10005B-B04 Weatherhead by Danfoss | Male Inverted Swivel Field Attachable Push-On Fitting | 100 'B' Series Barb-Tite | -04 Male Inverted Flare Swivel x -05 Push-On Hose Barb | Brass
10005B-B04 Weatherhead by Danfoss | Male Inverted Swivel Field Attachable Push-On Fitting | 100 'B' Series Barb-Tite | -04 Male Inverted Flare Swivel x -05 Push-On Hose Barb | Brass

10005B-B04 Weatherhead by Danfoss | Male Inverted Swivel Field Attachable Push-On Fitting | 100 'B' Series Barb-Tite | -04 Male Inverted Flare Swivel x -05 Push-On Hose Barb | Brass

Sale price$12.70
Buy more, save moreDiscounts applied in cart/checkout.
Note:
  • Pressure: Determined by maximum working pressure for hose size.
  • CAUTION: Sealing integrity may be damaged by the use of clamps.
  • Label Set: FS-500
Material:
  • CA360 Brass
Compatible Hose:
  • H100, H101, H201, H332, 35FH
Assembly instructions:
  • To determine the correct length of hose, subtract the cut-off factor for each end Fitting from the overall length of assembly.
  • 1. Lubricate insert.
  • 2. Hold hose at angle as shown and push on and up over first barb.
  • 3. Continue to push straight on until hose is seated under protective plastic cap. (Keep hand back from hose end area so that hose can expand.)
  • Assembly Lubricant:
Disassembly instructions:
  • 1. Split hose as shown. Do not cut completely through hose. Sealing edge of barb could be damaged.
  • 2. Bend hose and remove with quick pull.
Brass
Part Number		 Hose
I.D.		 Tube
Size		 Thread
Size		 A Hose Cut-off
Factor		 Hole
Diameter		 Hex
F
10004B-B03 1/4" 3/16" 3/8-24 1.39" 1.13" 0.109" 3/8"
10004B-B04 1/4" 1/4" 7/16-24 1.42" 1.13" 0.172" 7/16"
10004B-B05 1/4" 5/16" 1/2-20 1.52" 1.19" 0.188" 1/2"
10005B-B04 5/16" 1/4" 7/16-24 1.81" 1.11" 0.184" 7/16"
10005B-B06 5/16" 3/8" 5/8-18 1.60" 1.19" 0.234" 5/8"
10006B-B05 3/8" 5/16" 1/2-20 1.64" 1.19" 0.234" 1/2"
10006B-B06 3/8" 3/8" 5/8-18 1.70" 0.97 0.297" 5/8"
10008B-B08 1/2" 1/2" 3/4-18 2.24" 1.25" 0.391" 3/4"

Note: Drawings may differ from actual parts.

Additional Product Data:

Shape:

Straight

Ends Configuration:
  • 1/4in Male Inverted Flare
  • 5/16in Push-On Hose Barb
Material(s):
  • Brass
