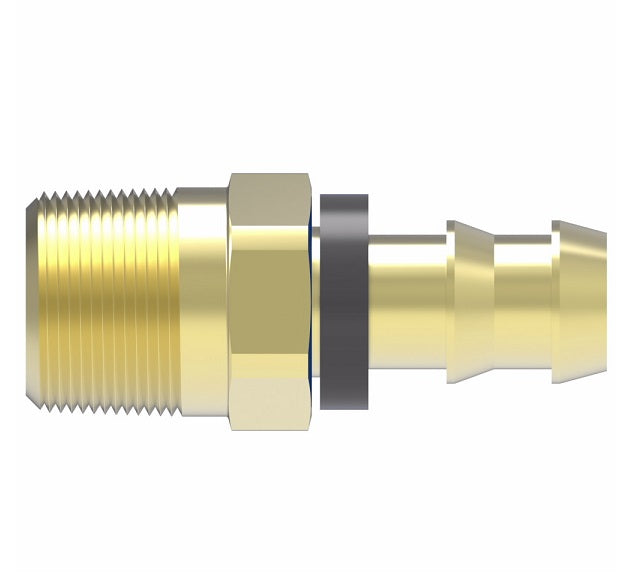

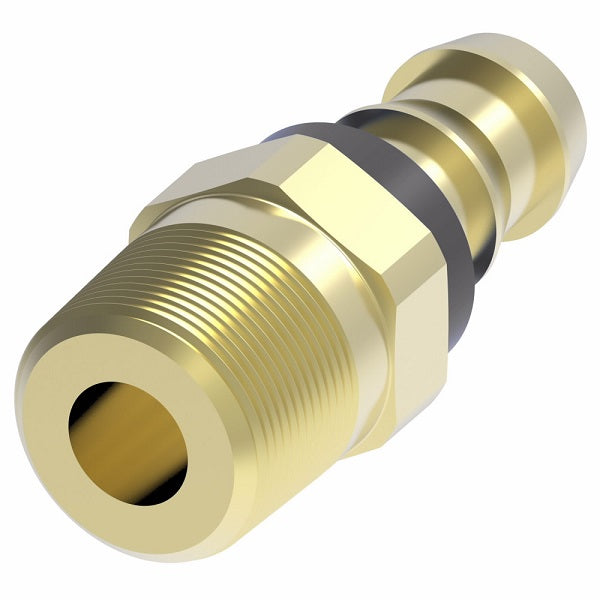

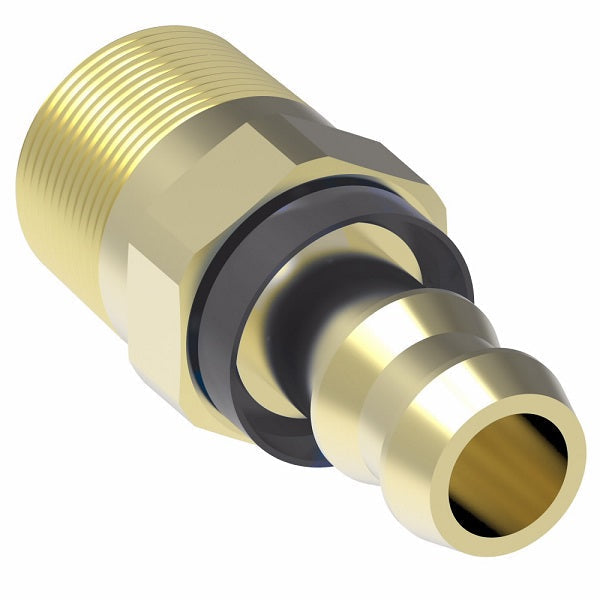

10005B-104 Weatherhead by Danfoss | Male Pipe Rigid Field Attachable Push-On Fitting | 100 'B' Series Barb-Tite | -04 Male NPTF x -05 Push-On Hose Barb | Brass
Minimum Order Quantity: 5 Units
Weatherhead by Danfoss
Push-On Field Attachable Fitting - 100 'B' Series Barb-Tite - Male Pipe Rigid - Straight
Ideal Fitting for low pressure shop or service air lines. Often used for low pressure lube and oil lines.
Easy to assemble - just push the Fitting into the hose. No clamps needed.
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $5.09 |
| 40–79 | $4.60 |
| 80+ | $4.06 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Note: | |||
|---|---|---|---|
|
|||
| Material: | |||
|
|||
| Compatible Hose: | |||
|
|||
| Assembly instructions: | |||
|
|||
| Disassembly instructions: | |||
|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Brass Part Number |
Hose I.D. |
Pipe Size |
Thread Size |
A | Hose Cut-off Factor |
Hole Diameter |
Hex E |
| 10004B-102 | 1/4" | 1/8" | 1/8-27 | 1.29" | 0.65" | 0.172" | 7/16" |
| 10004B-104 | 1/4" | 1/4" | 1/4-18 | 1.52" | 0.88" | 0.172" | 9/16" |
| 10005B-104 | 5/16" | 1/4" | 1/4-18 | 1.57" | 0.87" | 0.234" | 9/16" |
| 10006B-102 | 3/8" | 1/8" | 1/8-27 | 1.46" | 0.69" | 0.297" | 1/2" |
| 10006B-104 | 3/8" | 1/4" | 1/4-18 | 1.65" | 0.88" | 0.297" | 9/16" |
| 10006B-106 | 3/8" | 3/8" | 3/8-18 | 1.65" | 0.88" | 0.297" | 11/16" |
| 10008B-106 | 1/2" | 3/8" | 3/8-18 | 1.85" | 0.94" | 0.391" | 11/16" |
| 10008B-108 | 1/2" | 1/2" | 1/2-14 | 2.10" | 1.19" | 0.391" | 7/8" |
| 10010B-108 | 5/8" | 1/2" | 1/2-14 | 2.60" | 1.19" | 0.484" | 7/8" |
| 10012B-112 | 3/4" | 3/4" | 3/4-14 | 2.66" | 1.25" | 0.609" | 1-1/16" |
| 10016B-116 | 1" | 1" | 1-11-1/2 | 3.08" | 1.45" | 0.85" | 1-3/8" |
Note: Drawings may differ from actual parts.
