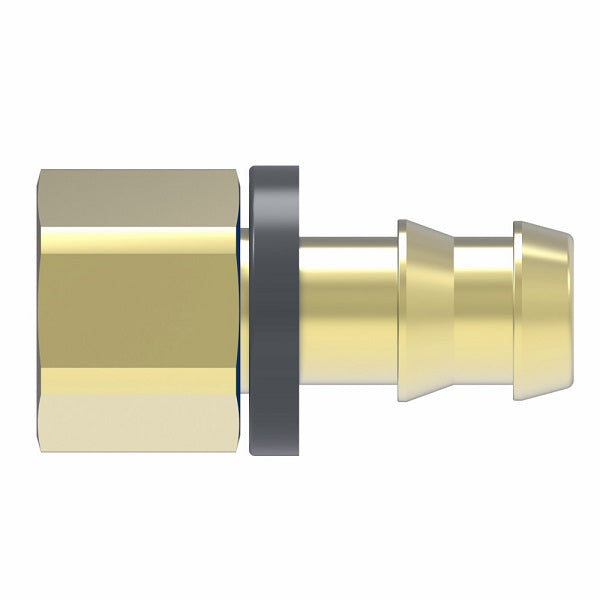

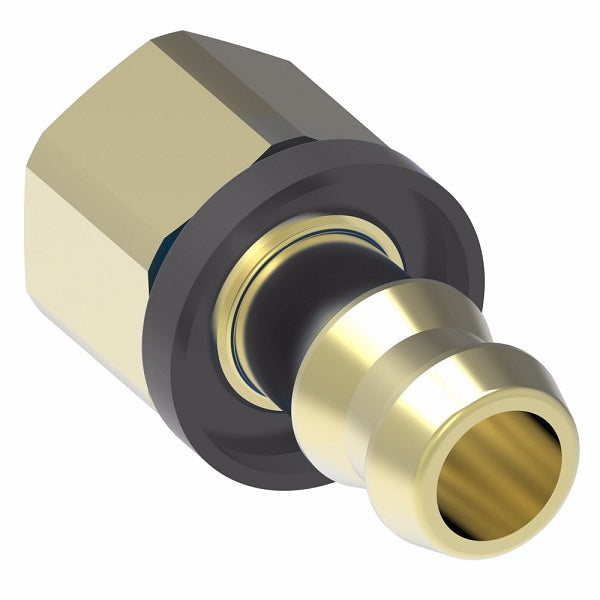

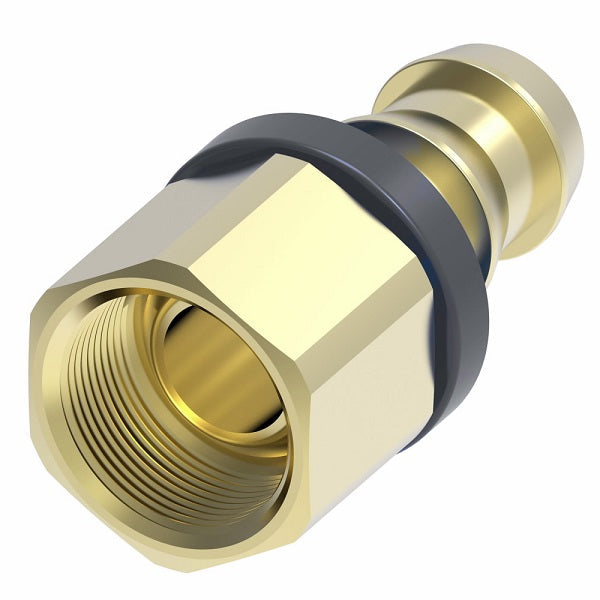

Push-On Field Attachable Fitting - 100 'B' Series Barb-Tite - Female Inverted Rigid - Straight

Ideal Fitting for low pressure shop or service air lines. Often used for low pressure lube and oil lines.

Easy to assemble - just push the Fitting into the hose. No clamps needed.
Buy More, Save More!
Quantity Price Each
10–39 $8.79
40–79 $7.95
80+ $7.01
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/4in Female Inverted Flare
  • 1/4in Push-On Hose Barb
Material(s):
  • Brass
Note:
  • Pressure: Determined by maximum working pressure for hose size.
  • CAUTION: Sealing integrity may be damaged by the use of clamps.
  • Label Set: FS-500
Material:
  • CA360 Brass
Compatible Hose:
  • H100, H101, H201, H332, 35FH
Assembly instructions:
  • To determine the correct length of hose, subtract the cut-off factor for each end Fitting from the overall length of assembly.
  • 1. Lubricate insert.
  • 2. Hold hose at angle as shown and push on and up over first barb.
  • 3. Continue to push straight on until hose is seated under protective plastic cap. (Keep hand back from hose end area so that hose can expand.)
  • Assembly Lubricant:
Disassembly instructions:
  • 1. Split hose as shown. Do not cut completely through hose. Sealing edge of barb could be damaged.
  • 2. Bend hose and remove with quick pull.
Brass
Part Number 		Hose
I.D.		 Tube
Size		 Thread
Size		 A Hose Cut-off
Factor		 Hole
Diameter		 Hex
F
10004B-A03 1/4" 3/16" 3/8-24 1.12" 0.48" 0.172" 1/2"
10004B-A04 1/4" 1/4" 7/16-24 1.14" 0.50" 0.172" 9/16"
10004B-A05 1/4" 5/16" 1/2-20 1.18" 0.56" 0.172" 5/8"
10005B-A05 5/16" 5/16" 1/2-20 1.25" 0.56" 0.220" 5/8"
10006B-A05 3/8" 5/16" 1/2-20 1.32" 0.55" 0.297" 5/8"
10006B-A06 3/8" 3/8" 5/18-18 1.35" 0.63" 0.297" 3/4"
10008B-A08 1/2" 1/2" 3/4-18 1.73" 0.75" 0.391" 7/8"
