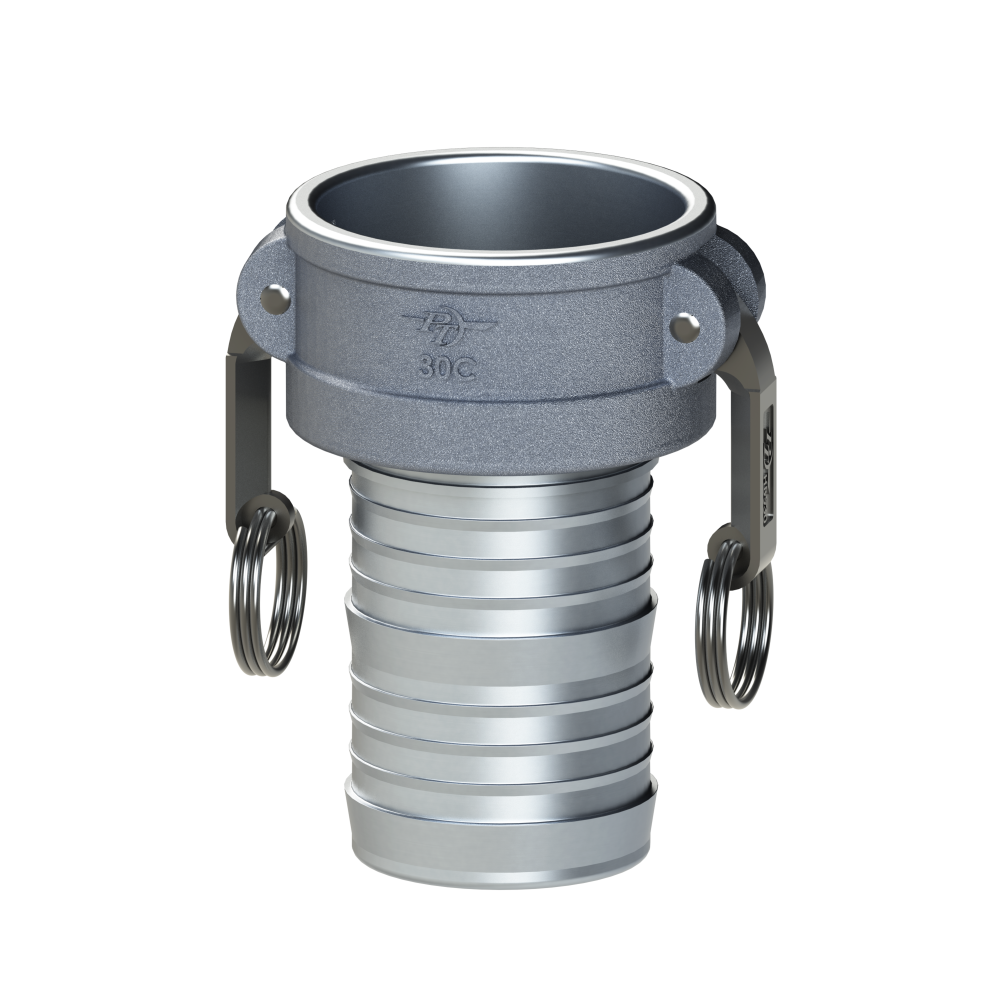

Cam and Groove (Camlock) Fitting | Type C | Coupler x Hose Shank | Aluminum/HBS | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Buy More, Save More!
Quantity Price Each
10–39 $20.15
40–79 $18.22
80+ $16.08
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Cam & Groove Type:

Type C

Ends Configuration:
  • 1/2in Female Cam & Groove
  • 1/2in Hose Barb
Overview:
  • PT Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (coupler/socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. This seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both arms must be lifted / opened simultaneously to release the seal and release the connection.
Features & Applications:
  • PT's specially designed multi-barbed shank with interlocking ring allows for attachment via original PUNCH-LOK® center punch clamps, or by an interlocked PROGRIP™ C-50 ferrule or sleeve.
  • HBS cam arms are made of 300 series Stainless Steel.
  • 8, 10 and 12 in. couplers are 4-cam designs with the STA-LOK® positive locking feature.
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
Part
Name		 Item # Coupler
Size		 Hose
Shank
Size		 O.D. with
Cam Arms
Extended
(A)		 Outside
Diameter
(B)		 Overall
Length
(C)		 Exposed
Length
(D)		 Inside
Diameter
(E)		 Min.
Inside
Diameter
(E)		 Engagement
Length		 Max. Allowable
Working Press.
(PSI)*		 Weight
E05C 1000301 1/2" 1/2" 4.21" 1.82" 2.69" 1.25" 0.38" 0.33" 1.03" 250 PSI 0.215 lbs.
07C 1000307 3/4" 3/4" 4.51" 2.11" 3.55" 1.25" 0.53" 0.40" 0.97" 250 PSI 0.285 lbs.
10C 1000310 1" 1" 5.10" 2.44" 4.06" 1.56" 0.78" 0.69" 1.19" 250 PSI 0.409 lbs.
12C 1000312 1-1/4" 1-1/4" 6.86" 3.26" 4.44" 1.84" 0.97" 0.88" 1.44" 250 PSI 0.741 lbs.
15C 1000315 1-1/2" 1-1/2" 7.16" 3.56" 4.82" 1.88" 1.22" 1.15" 1.48" 250 PSI 0.844 lbs.
20C 1000320 2" 2" 7.54" 3.94" 5.53" 2.15" 1.71" 1.60" 1.75" 250 PSI 1.094 lbs.
25C 1000325 2-1/2" 2-1/2" 8.03" 4.43" 5.93" 2.18" 2.16" 2.06" 1.75" 200 PSI 1.524 lbs.
30C 1000330 3" 3" 9.56" 5.46" 6.32" 2.27" 2.65" 2.55" 1.84" 200 PSI 2.112 lbs.
40C 1000340 4" 4" 10.66" 6.56" 6.64" 2.34" 3.53" 3.43" 1.87" 150 PSI 3.307 lbs.
50C 1000350 5" 5" 11.67" 7.57" 7.24" 2.44" 4.53" 4.43" 1.97" 75 PSI 3.977 lbs.
60C 1000360 6" 6" 16.26" 10.16" 9.50" 2.70" 5.53" 5.43" 2.19" 75 PSI 6.955 lbs.
80C 1000380** 8" 8" 18.23" 12.13" 9.50" 2.72" 7.53" 7.38" 2.15" 50 PSI 11.141 lbs.
100C 1000390** 10" 10" 20.66" 14.56" 12.00" 3.20" 9.40" 9.20" 2.55" 50 PSI 19.171 lbs.
120C 1000392** 12" 12" 22.72" 16.62" 12.00" 3.30" 11.40" 11.30" 2.55" 50 PSI 22.021 lbs.

** 8, 10 and 12 in. couplers are 4-cam designs with the STA-LOK® positive locking feature.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
