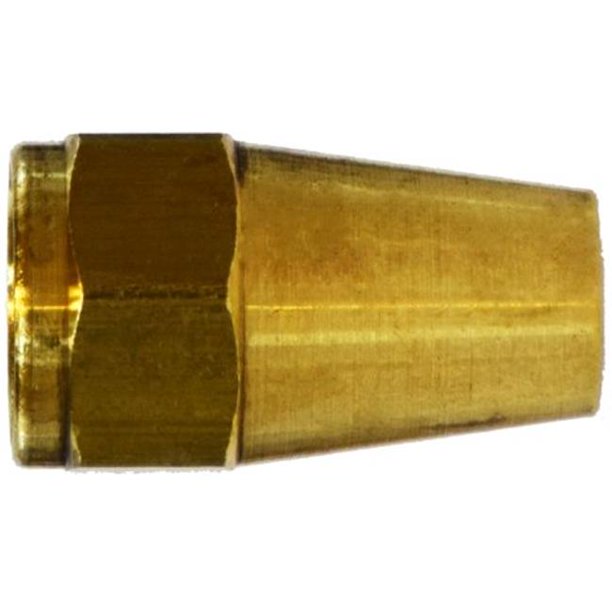

10002 by Midland | SAE 45° Flare Fitting | Long Rod Nut | 3/16" Female SAE 45° Flare | Brass
Midland Industries
Brass Fitting - SAE 45° Flare - Long Rod Nut - Brass
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $10.10 |
| 40–79 | $9.13 |
| 80+ | $8.06 |
Discounts applied in cart/checkout.
Product Data:
Shape:
No Orientation
Material(s):
Specifications and Approvals:
| Applications: | LP and Natural Gas, Flammable Liquids, Instrumentation, Refrigeration, Power Steering, Hydraulic and Pneumatic Systems. | Used With: | Copper, Brass, Aluminum and Steel hydraulic tubing that can be flared. |
|---|---|---|---|
| SAE Rating: | SAE# 010111 | Conformance: | Meets specifications and standards of ASA, ASME, SAE and MS (Military standards). |
| Vibration: | Good resistance - use long nut when greater vibration resistance is required. | Temperature Range: | -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures |
| Tolerance: | +/- .03 on all dimensions. Dimension data can change without notice. Please call us when dimensions are critical. | Lead Free: | Not Lead Free |
| Working Pressure Ranges: | |||
|---|---|---|---|
|
|||
| Assembly Instructions: | |||
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Tube OD | 1/8" | 3/16" | 1/4" | 5/16" | 3/8" | 7/16" | 1/2" | 5/8" | 3/4" |
| Thread Size B | 5/16-24 | 3/8-24 | 7/16-20 | 1/2-20 | 5/8-18 | 11/16-16 | 3/4-16 | 7/8-14 | 1-1/16-14 |
| Crossover Series: | |||||
|---|---|---|---|---|---|
| 41L | 41FL | N2 | 241 | 441 | 41 |
 |
|||||
|---|---|---|---|---|---|
| Part Number | Thread Size UNF | A | Hex | Approx. Weight (Lbs.) |
|
| 10001 (10-001) |
1/8" | 0.75" | 0.37" | 0.01 | |
| 10002 (10-002) |
3/16" | 0.81" | 0.43" | 0.02 | |
| 10003L* (10-003L) |
1/4" | 0.98" | 0.55" | 0.03 | |
| 10003 (10-003) |
1/4" | 0.94" | 0.56" | 0.03 | |
| 10004 (10-004) |
5/16" | 1.12" | 0.62" | 0.04 | |
| 10005 (10-005) |
3/8" | 1.31" | 0.75" | 0.06 | |
| 10006 (10-006) |
1/2" | 1.62" | 0.87" | 0.12 | |
| 10007 (10-007) |
5/8" | 1.88" | 1.06" | 0.20 | |
| 10008 (10-008) |
3/4" | 2.19" | 1.25" | 0.34 | |
* "L" means light pattern: These fittings are completely interchangeable with full pattern fittings, but have been modified in some way. This modification is usually in the length of the pipe threads. Used in plumbing and light industrial applications
