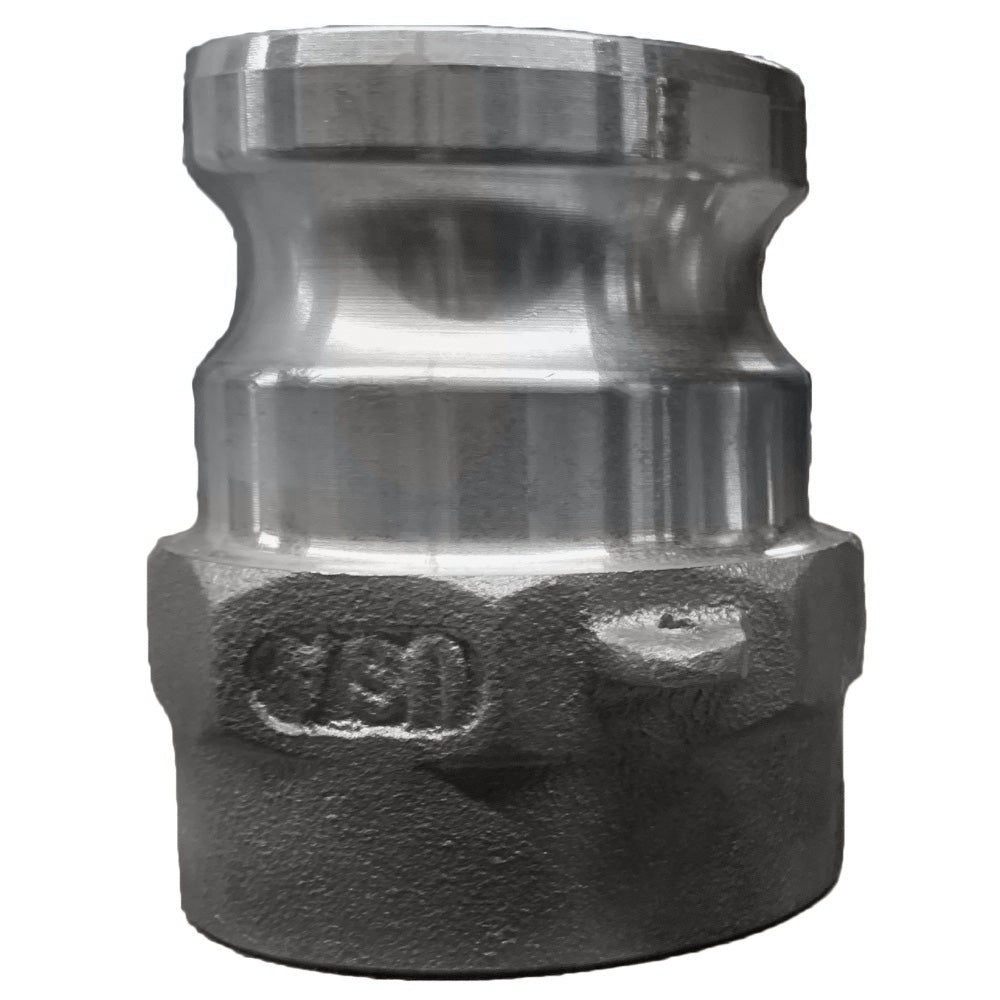

1000115H (15AHD) by PT-Coupling | Heavy Duty Cam & Groove Adapter | Type AHD | 1-1/2" Adapter x 1-1/2" Female NPT | Aluminum | Buna-N Seal

1000115H (15AHD) by PT-Coupling | Heavy Duty Cam & Groove Adapter | Type AHD | 1-1/2" Adapter x 1-1/2" Female NPT | Aluminum | Buna-N Seal

Sale price$37.52
Buy more, save moreDiscounts applied in cart/checkout.
Features & Applications:
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
Part
Name		 Item # Heavy Duty
Adapter		 Female NPT
Thread		 Max. Allowable
Working Press.
(PSI)*
15AHD 1000115H 1-1/2" 1-1/2" 500 PSI
20AHD 1000120H 2" 2" 500 PSI
40AHD 1000140H 4" 4" 300 PSI
60AHD 1000160H 6" 6" 150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

Additional Product Data:

Shape:

Straight

Cam & Groove Type:

Type A

Ends Configuration:
  • 1-1/2in Male Cam & Groove
  • 1-1/2in Female NPT

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
