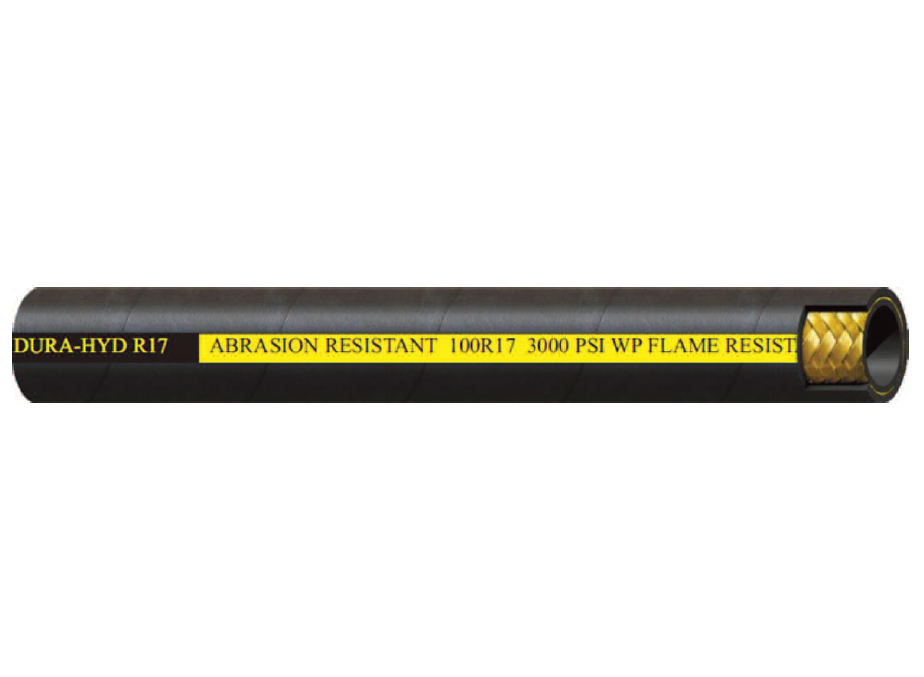

1" WDH17 by Couplamatic | Import DURA-HYD Wrapped Cover Abrasion Resistant | One or Two Wire Hydraulic Hose | SAE 100R17 | 1" ID | 200ft
Package Quantity: 200 FT
Buy more, save moreDiscounts applied in cart/checkout.
SAE 100R17 — Wrapped Cover, Abrasion Resistant
WDH17 Dura-Hyd Wrapped Cover Hydraulic Hose
SAE 100R17 hose with an extra abrasion resistant wrapped cover and yellow layline, holding 3,000 PSI constant working pressure from 1/4" through 1".
1
What is this hose used for?
- High Pressure Hydraulics
- Industrial
- Agricultural
2
What are the key specifications?
SAE Rating
SAE 100R17
Cover
Flame Resistant, Extra Abrasion Resistant, Yellow layline, MSHA
Reinforcement
One or Two Wire Braids
Temperature
-40°F to +212°F (-40°C to +100°C)
3
What are the main product features?
- 3000 PSI constant working pressure — same rating across every size.
- Wrapped cover — extra abrasion resistance for equipment that drags and rubs.
- Yellow layline — identifies the hose clearly on the machine.
- One or two wire braids — reinforcement varies by size.
- Flame resistant, MSHA — approved for mining service.
4
Which sizes are available?
| Part Number | Hose ID | Hose OD | Working Pressure (lbs) |
Min. Burst Pressure (lbs) |
Min. Bend Radius | Weight per 100ft | Reel Footage |
|---|---|---|---|---|---|---|---|
| 1/4" WDH17 | 1/4" | 0.535" | 3,000 lbs. | 12,000 lbs. | 2" | 16 lbs. | 500ft |
| 3/8" WDH17 | 3/8" | 0.690" | 3,000 lbs. | 12,000 lbs. | 2.5" | 23 lbs. | 500ft |
| 1/2" WDH17 | 1/2" | 0.810" | 3,000 lbs. | 12,000 lbs. | 3.5" | 29 lbs. | 350ft |
| 5/8" WDH17 | 5/8" | 0.950" | 3,000 lbs. | 12,000 lbs. | 5" | 38 lbs. | 250ft |
| 3/4" WDH17 | 3/4" | 1.100" | 3,000 lbs. | 12,000 lbs. | 5" | 55 lbs. | 250ft |
| 1" WDH17 | 1" | 1.410" | 3,000 lbs. | 12,000 lbs. | 6" | 82 lbs. | 200ft |
Sold as bulk hose by the reel or coil. Reel and coil footage for each size is listed in the size chart above; cut lengths and hose assemblies are available — contact us for pricing.
Additional Product Data:
Series:
Color(s):
Dash Size:
Internal Diameter:
Outer Diameter:
MAWP:
3000
Specifications and Approvals:
Compatible Series:
