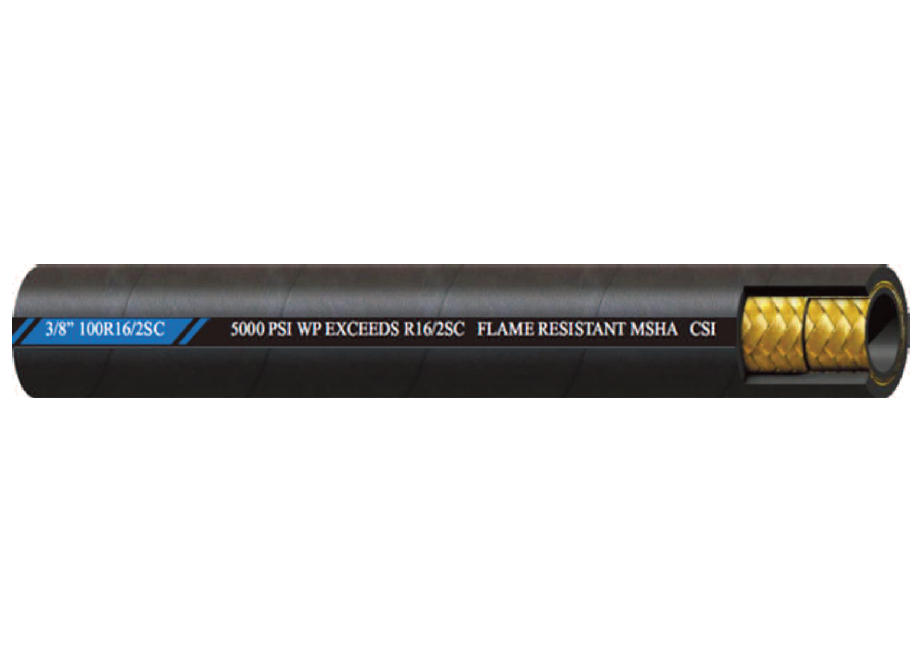

1" R16 by Couplamatic | Import Two Wire Hi-Pressure Extremely Flexible Hydraulic Hose | SAE 100R16/DIN 2SC | 1" ID
Buy more, save moreDiscounts applied in cart/checkout.
SAE 100R16 / DIN 2SC — Two Wire
R16 Import Two Wire Hi-Pressure Hydraulic Hose
Two-wire SAE 100R16 / DIN 2SC hose with a tighter bend radius than standard R1 and R2, crimping to 100R1AT one-wire thin cover specifications.
1
What is this hose used for?
- High Pressure Hydraulics
- Industrial
- Agricultural
2
What are the key specifications?
SAE Rating
SAE 100R16 / DIN 2SC
Cover
Abrasion and Flame Resistant Cover, MSHA Approved
Reinforcement
Two Wire Braids
Temperature
-40°F to +212°F (-40°C to +100°C)
3
What are the main product features?
- Tighter bend radius than R1 and R2 — routes into spaces standard braid hose will not.
- Crimps to 100R1AT specifications — one-wire thin cover crimp dimensions.
- Two wire braids — full SAE 100R16 / DIN 2SC working pressures.
- MSHA approved cover — abrasion and flame resistant.
4
Which sizes are available?
| Part Number | Hose ID | Hose OD | Working Pressure (lbs) |
Min. Burst Pressure (lbs) |
Min. Bend Radius | Weight per 100ft | Reel Footage |
|---|---|---|---|---|---|---|---|
| 1/4" R16 | 1/4" | 0.530" | 5,800 lbs. | 23,200 lbs. | 2" | 18 lbs. | 500ft |
| 3/8" R16 | 3/8" | 0.687" | 5,000 lbs. | 20,000 lbs. | 2.5" | 27 lbs. | 400ft |
| 1/2" R16 | 1/2" | 0.812" | 4,250 lbs. | 17,000 lbs. | 3.5" | 35 lbs. | 300ft |
| 5/8" R16 | 5/8" | 0.937" | 3,625 lbs. | 14,500 lbs. | 4" | 40 lbs. | 250ft |
| 3/4" R16 | 3/4" | 1.090" | 3,125 lbs. | 12,500 lbs. | 4.8" | 54 lbs. | 250ft |
| 1" R16 | 1" | 1.405" | 2,500 lbs. | 10,000 lbs. | 6" | 74 lbs. | 200ft |
Sold as bulk hose by the reel or coil. Reel and coil footage for each size is listed in the size chart above; cut lengths and hose assemblies are available — contact us for pricing.
Additional Product Data:
Series:
Color(s):
Dash Size:
Internal Diameter:
Outer Diameter:
MAWP:
2500
