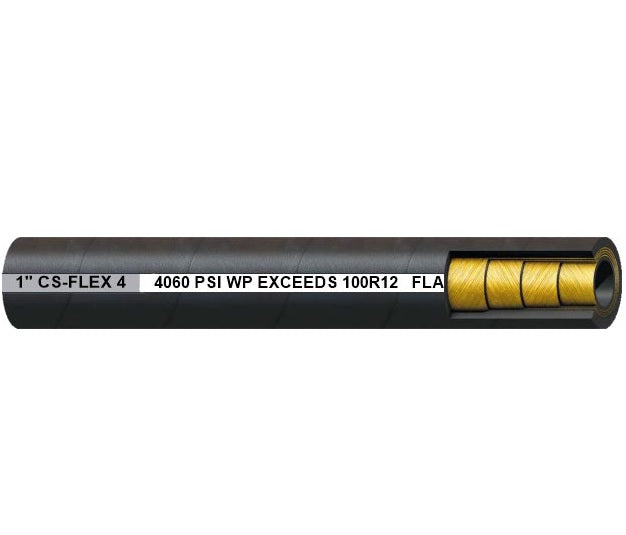

1" CS-FLEX 4 by Couplamatic | Four Spiral High Pressure Import Hydraulic Hose | SAE 100R12 | 1" ID | 50ft Bulk Length
Couplamatic Systems Inc.
4 High Tensile Steel Spirals - CS-FLEX 4 Four Spiral High Pressure Import Hydraulic Hose - (SAE 100R12)
Replaces RC12B
Reduced Bend Radius and Higher Working Pressures
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $491.55 |
| 15–29 | $444.49 |
| 30+ | $392.20 |
Discounts applied in cart/checkout.
Product Data:
Series:
Color(s):
Dash Size:
Internal Diameter:
Outer Diameter:
Specifications and Approvals:
| Applications: | High Pressure Hydraulics, Industrial or Agricultural | SAE Rating: | SAE 100R12 |
|---|---|---|---|
| Cover: | Abrasion and Flame Resistant Black Cover, MSHA Approved | Reinforcement: | 4 High Tensile Steel Spirals |
| Temperature: | -40F to +250F (-40C to +121C) | Compatible Coupling Series: |
GW Series 4GC Series |
| Part Number | Hose ID | Hose OD | Working Pressure (lbs) |
Min. Burst Pressure (lbs) |
Min. Bend Radius | Weight per 100ft | Coil Footage |
|---|---|---|---|---|---|---|---|
| 1/2" CS-FLEX 4 | 1/2" | 0.937" | 4,060 lbs. | 16,240 lbs. | 3.5" | 56 lbs. | Bulk |
| 5/8" CS-FLEX 4 | 5/8" | 1.100" | 4,060 lbs. | 16,240 lbs. | 4" | 76 lbs. | Bulk |
| 3/4" CS-FLEX 4 | 3/4" | 1.208" | 4,060 lbs. | 16,240 lbs. | 4.75" | 95 lbs. | Bulk |
| 1" CS-FLEX 4 | 1" | 1.496" | 4,060 lbs. | 16,240 lbs. | 6" | 131 lbs. | Bulk |
| 1-1/4" CS-FLEX 4 | 1-1/4" | 1.790" | 4,060 lbs. | 16,240 lbs. | 8.25" | 154 lbs. | Bulk |
| 1-1/2" CS-FLEX 4 | 1-1/2" | 2.100" | 4,060 lbs. | 16,240 lbs. | 10" | 219 lbs. | Bulk |
