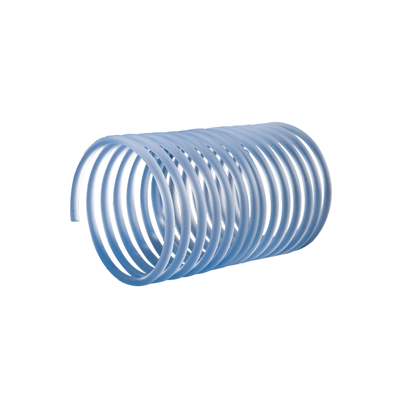

1.5-SLINKY by Texcel | SIGMA-COIL™ Series | Banding Coil | 1-1/2" Coil Diameter | PVC
Minimum Order Quantity: 5 Units
Buy more, save moreDiscounts applied in cart/checkout.
Hose Accessories
SIGMA-COIL™ Banding Coils
Use banding coils to level external corrugations, or when using sleeves or bands, for increased surface area and improved compression and fitting retention.
1
How are banding coils used?
Each piece makes two hose ends (one hose assembly); the operator must cut it into two pieces. Recommended with SIGMA™ tank drop and vapor recovery hose, alongside or instead of SIGMA™ banding sleeves.
- Leveling external corrugations
- Sleeve and band clamp assemblies
- Fitting retention
2
What are the key specifications?
Material
PVC
Yield
Two hose ends (one hose assembly) per piece
3
Which sizes are available?
| Part Number | Hose Diameter | Length (in./each) | Weight (lbs/each) |
|---|---|---|---|
| 1.5-SLINKY | 1-1/2" | 2.75" | 0.07 |
| 2.0-SLINKY | 2" | 3.0" | 0.12 |
| 2.5-SLINKY | 2-1/2" | 3.25" | 0.16 |
| 3.0-SLINKY | 3" | 3.5" | 0.23 |
| 4.0-SLINKY | 4" | 3.75" | 0.45 |
| 5.0-SLINKY | 5" | 6.0" | 1.27 |
| 6.0-SLINKY | 6" | 8.0" | 1.93 |
| 8.0-SLINKY | 8" | 8.5" | 3.71 |
