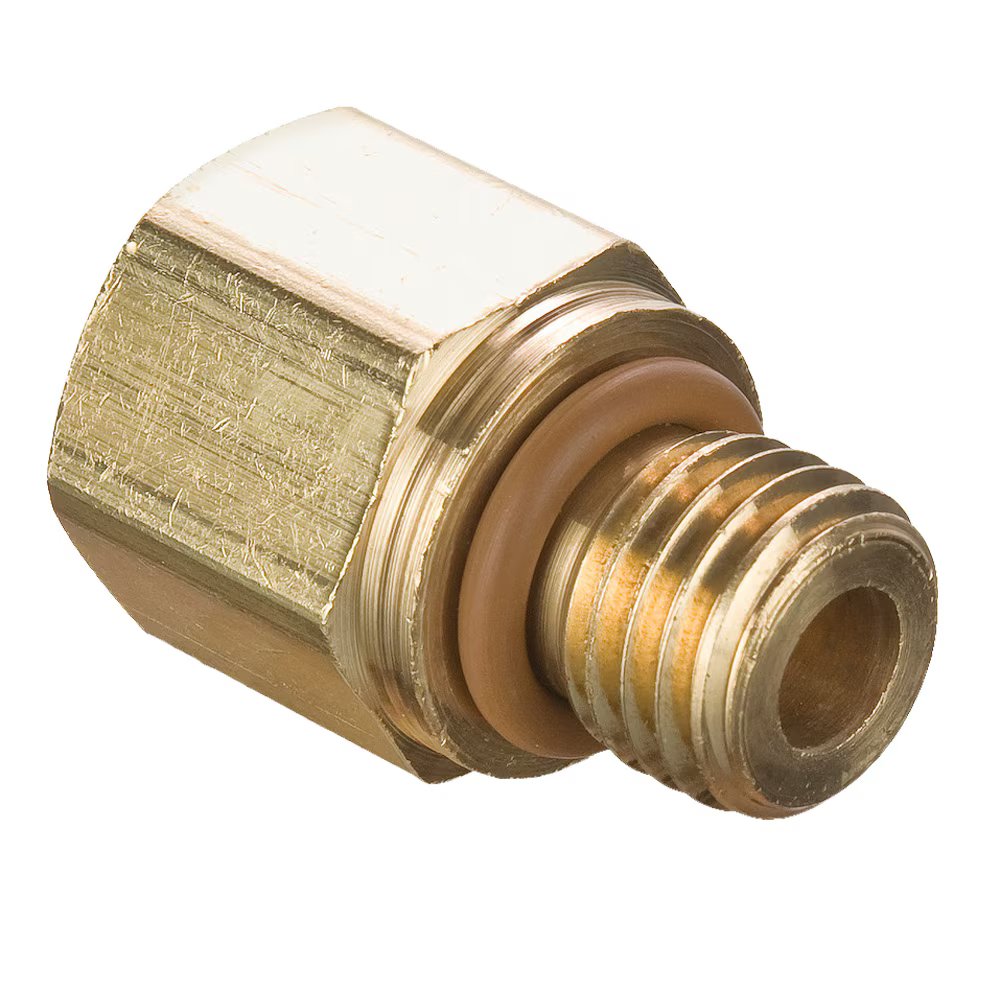

1/4F3HG-B by Parker | Adapters | 1/4" Female NPTF Thread x 1/8" Male BSPT Thread | 3/4" Hex | 1.35" Length | Straight | Brass | Pack of 10

1/4F3HG-B by Parker | Adapters | 1/4" Female NPTF Thread x 1/8" Male BSPT Thread | 3/4" Hex | 1.35" Length | Straight | Brass | Pack of 10

Sale price$67.79

by Parker Hannifin
Metric Adapters:F3HG Adapter NPTF Male BSPT

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
20–39 $63.72
40–79 $57.62
80+ $50.84
Discounts applied in cart/checkout.

Product Data:

Series:
  • F3HG Series
Shape:

Straight

Ends Configuration:
  • 1/4in Female NPTF
  • 1/4in Male BSPT
Product Features:
  • All brass construction
  • Nickel plated adapters
  • Robust design
  • Reusable
Markets:
  • Industrial
  • Construction
  • Heavy duty truck
  • Mobile
  • Factory/process automation
Applications:
  • Air Lines
  • Water Line
  • Cooling Lines
Specification:
  • Pressure Range Brass: 1/8" to 1/2": 2900 PSI (200 bar), 3/4" and 1": 2175 PSI (150 bar), without sealing washer
  • Pressure Range Nickel-Plated Brass: 870 PSI (59.9 bar)
  • Temperature Range Nickel-Plated Brass: -76F to +302F (-60°C to +150°C) without sealing washer, -4F to +34F (-20°C to +100°C) with sealing washer
  • Temperature Range Brass: +14F to +176F (-10°C to +80°C)
Part Number NPTF 1 BSPT 2 Hex (C) L Flow Diameter (D)
1/8F3HG-B 1/8" 1/8" 9/16" .93" .22"
1/4F3HG-B 1/4" 1/4" 3/4" 1.35" .31"
3/8F3HG-B 3/8" 3/8" 7/8" 1.35" .44"
1/2F3HG-B 1/2" 1/2" 1-1/16" 1.76" .56"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
