1/4" H7NC by Couplamatic | Non-Conductive | Thermoplastic Hydraulic Hose | Polyester Braid | SAE 100R7 | 1/4" ID | 250ft
Package Quantity: 250 FT
Buy more, save moreDiscounts applied in cart/checkout.
SAE 100R7 — Non-Conductive

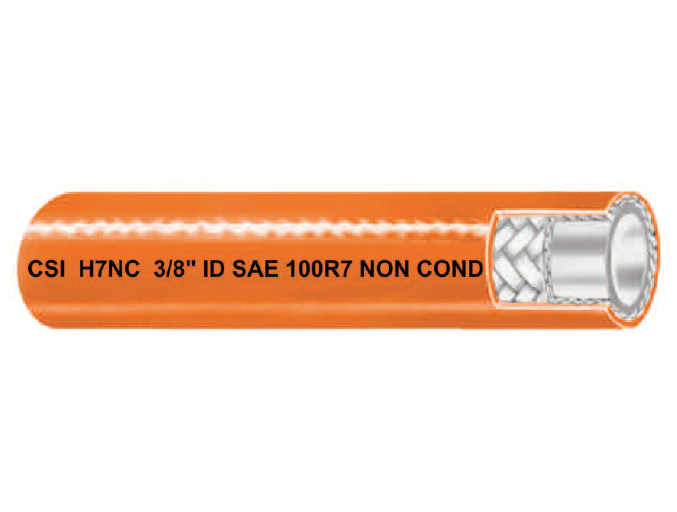

H7NC Non-Conductive Thermoplastic Hydraulic Hose
Medium pressure SAE 100R7 thermoplastic hose with an orange non-conductive polyurethane cover, for aerial lifts, bucket trucks and utility equipment.
1
What is this hose used for?
- Medium Pressure Hydraulics
- Industrial
- Agricultural
2
What are the key specifications?
SAE Rating
SAE 100R7
Cover
Orange Non-Conductive Polyurethane, Non-Perforated
Tube
Nylon
Reinforcement
Polyester Braid
Temperature
-40°F to +212°F (-40°C to +100°C)
Size Range
1/4" to 1"
3
What are the main product features?
- Non-conductive cover — orange polyurethane, non-perforated, for work near energized conductors.
- High visibility orange — the standard identification color for non-conductive hydraulic hose.
- Nylon tube, polyester braid — lightweight medium pressure construction.
- Sizes 1/4" through 1" — covers most utility boom circuits.
4
Which sizes are available?
| Part Number | Hose ID | Hose OD | Working Pressure (lbs) |
Min. Burst Pressure (lbs) |
Min. Bend Radius | Weight per 100ft | Coil Footage |
|---|---|---|---|---|---|---|---|
| 1/4" H7NC | 1/4" | 0.508" | 2,750 lbs. | 11,000 lbs. | 1.5" | 6 lbs. | 250ft |
| 5/16" H7NC | 5/16" | 0.585" | 2,500 lbs. | 10,000 lbs. | 1.75" | 7.5 lbs. | 250ft |
| 3/8" H7NC | 3/8" | 0.650" | 2,250 lbs. | 9,000 lbs. | 2" | 10 lbs. | 250ft |
| 1/2" H7NC | 1/2" | 0.815" | 2,000 lbs. | 8,000 lbs. | 3" | 15.6 lbs. | 250ft |
| 3/4" H7NC | 3/4" | 1.062" | 1,250 lbs. | 5,000 lbs. | 6.5" | 19 lbs. | 100ft |
| 1" H7NC | 1" | 1.335" | 1,000 lbs. | 4,000 lbs. | 8" | 27 lbs. | 100ft |
Cut lengths are available in multiples of 50'. Sold as bulk hose by the reel or coil. Reel and coil footage for each size is listed in the size chart above; cut lengths and hose assemblies are available — contact us for pricing.
Additional Product Data:
Series:
Color(s):
Dash Size:
Internal Diameter:
Outer Diameter:
MAWP:
2750
Tubing Construction:
Cover Construction:
Specifications and Approvals:
Compatible Series:
