1/4" RD7TL by Couplamatic | Twin Line Thermoplastic Hydraulic Hose | Reduced OD | Polyester Braid | SAE 100R7 | 1/4" ID | 250ft
Package Quantity: 250 FT
Buy more, save moreDiscounts applied in cart/checkout.
SAE 100R7 — Reduced OD, Twin Line

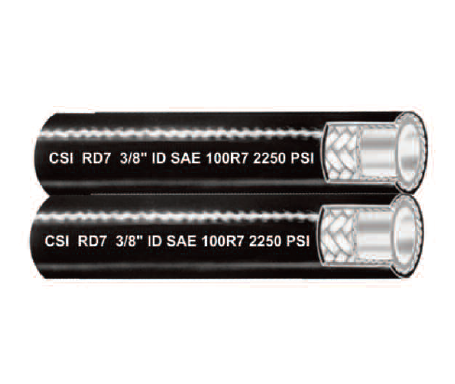

RD7TL Twin Line Reduced OD Thermoplastic Hydraulic Hose
Bonded twin line SAE 100R7 hose in a reduced outside diameter, keeping supply and return paired through tight boom and tool routing.
1
What is this hose used for?
- Medium Pressure Hydraulics
- Industrial
- Agricultural
2
What are the key specifications?
SAE Rating
SAE 100R7
Cover
Black Polyurethane, Perforated
Tube
Nylon
Reinforcement
Polyester Braid
Temperature
-40°F to +212°F (-40°C to +100°C)
Size Range
1/4" to 3/8"
3
What are the main product features?
- Bonded twin line — two hoses run as one and separate cleanly at the ends.
- Reduced outside diameter — fits routing that standard 100R7 twin line will not.
- Nylon tube, polyester braid — medium pressure hydraulic service.
- Perforated black polyurethane cover — abrasion resistant and vented.
4
Which sizes are available?
| Part Number | Hose ID | Hose OD | Working Pressure (lbs) |
Min. Burst Pressure (lbs) |
Min. Bend Radius | Weight per 100ft | Coil Footage |
|---|---|---|---|---|---|---|---|
| 1/4" RD7TL | 1/4" | 0.455" | 2,750 lbs. | 11,000 lbs. | 1.5" | 10 lbs. | 250ft |
| 3/8" RD7TL | 3/8" | 0.618" | 2,250 lbs. | 9,000 lbs. | 2.0" | 21 lbs. | 250ft |
Sold as bulk hose by the reel or coil. Reel and coil footage for each size is listed in the size chart above; cut lengths and hose assemblies are available — contact us for pricing.
Additional Product Data:
Series:
Color(s):
Dash Size:
Internal Diameter:
Outer Diameter:
MAWP:
2750
Tubing Construction:
Cover Construction:
Specifications and Approvals:
Compatible Series:
