1/4" RD7NC by Couplamatic | Non-Conductive | Thermoplastic Hydraulic Hose | Reduced OD | Polyester Braid | SAE 100R7 | 1/4" ID | 250ft
Package Quantity: 250 FT
Buy more, save moreDiscounts applied in cart/checkout.
SAE 100R7 — Reduced OD, Non-Conductive

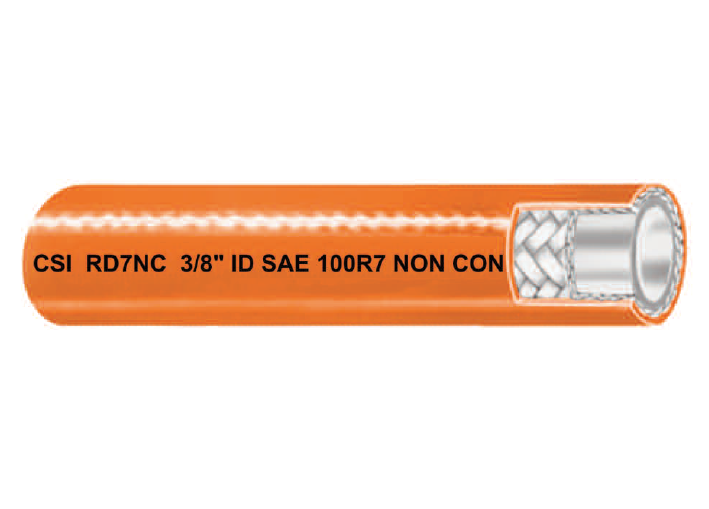

RD7NC Non-Conductive Reduced OD Thermoplastic Hydraulic Hose
Reduced outside diameter SAE 100R7 hose with a non-conductive orange cover meeting ANSI 92.2, for aerial work platform circuits.
1
What is this hose used for?
- Medium Pressure Hydraulics
- Industrial
- Agricultural
2
What are the key specifications?
SAE Rating
SAE 100R7
Cover
Orange Non-Conductive Polyurethane, ANSI 92.2, Non-Perforated
Tube
Nylon
Reinforcement
Polyester Braid
Temperature
-40°F to +212°F (-40°C to +100°C)
Size Range
1/4" to 3/8"
3
What are the main product features?
- Meets ANSI 92.2 — the aerial work platform standard for non-conductive hose.
- Non-conductive cover — orange polyurethane, non-perforated.
- Reduced outside diameter — fits tighter boom routing than standard 100R7.
- Nylon tube, polyester braid — lightweight medium pressure construction.
4
Which sizes are available?
| Part Number | Hose ID | Hose OD | Working Pressure (lbs) |
Min. Burst Pressure (lbs) |
Min. Bend Radius | Weight per 100ft | Coil Footage |
|---|---|---|---|---|---|---|---|
| 1/4" RD7NC | 1/4" | 0.455" | 2,750 lbs. | 11,000 lbs. | 1.5" | 5 lbs. | 250ft |
| 3/8" RD7NC | 3/8" | 0.618" | 2,250 lbs. | 9,000 lbs. | 2.0" | 10 lbs. | 250ft |
Sold as bulk hose by the reel or coil. Reel and coil footage for each size is listed in the size chart above; cut lengths and hose assemblies are available — contact us for pricing.
Additional Product Data:
Series:
Color(s):
Dash Size:
Internal Diameter:
Outer Diameter:
MAWP:
2750
Tubing Construction:
Cover Construction:
Specifications and Approvals:
Compatible Series:
