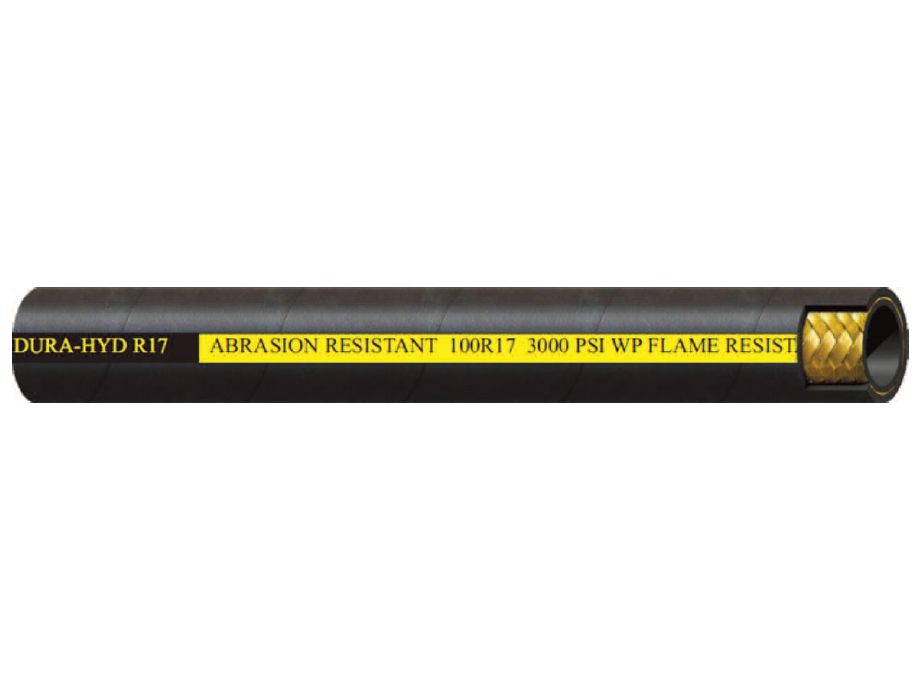

1/2" WDH17 by Couplamatic | Import DURA-HYD Wrapped Cover Abrasion Resistant | One or Two Wire Hydraulic Hose | SAE 100R17 | 1/2" ID | 350ft
Couplamatic Systems Inc.
One or Two Wire Braid - WWDH17 DURA-HYD Abrasion Resistant Wrapped Cover Import Hydraulic Hose (SAE 100R17)
Package Quantity: 350 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $1,142.65 |
| 8–14 | $1,094.03 |
| 15+ | $972.47 |
Discounts applied in cart/checkout.
Product Data:
Series:
Color(s):
Dash Size:
Internal Diameter:
Outer Diameter:
MAWP:
3000
Specifications and Approvals:
Compatible Series:
| Applications: | High Pressure Hydraulics, Industrial or Agricultural | SAE Rating: | SAE 100R17 |
|---|---|---|---|
| Cover: | Flame Resistant, Extra Abrasion Resistant, Yellow layline, MSHA | Reinforcement: | One or Two Wire Braids |
| Temperature: | -40F to +212F (-40C to +100C) |
| Part Number | Hose ID | Hose OD | Working Pressure (lbs) |
Min. Burst Pressure (lbs) |
Min. Bend Radius | Weight per 100ft | Reel Footage |
|---|---|---|---|---|---|---|---|
| 1/4" WDH17 | 1/4" | 0.535" | 3,000 lbs. | 12,000 lbs. | 2" | 16 lbs. | 500ft |
| 3/8" WDH17 | 3/8" | 0.690" | 3,000 lbs. | 12,000 lbs. | 2.5" | 23 lbs. | 500ft |
| 1/2" WDH17 | 1/2" | 0.810" | 3,000 lbs. | 12,000 lbs. | 3.5" | 29 lbs. | 350ft |
| 5/8" WDH17 | 5/8" | 0.950" | 3,000 lbs. | 12,000 lbs. | 5" | 38 lbs. | 250ft |
| 3/4" WDH17 | 3/4" | 1.100" | 3,000 lbs. | 12,000 lbs. | 5" | 55 lbs. | 250ft |
| 1" WDH17 | 1" | 1.410" | 3,000 lbs. | 12,000 lbs. | 6" | 82 lbs. | 200ft |
