1/2" HS8NC by Couplamatic | Non-Conductive | Thermoplastic Hydraulic Hose | Aramid Braid | SAE 100R8 | 1/2" ID | 250ft
Package Quantity: 250 FT
Buy more, save moreDiscounts applied in cart/checkout.
SAE 100R8 — Non-Conductive

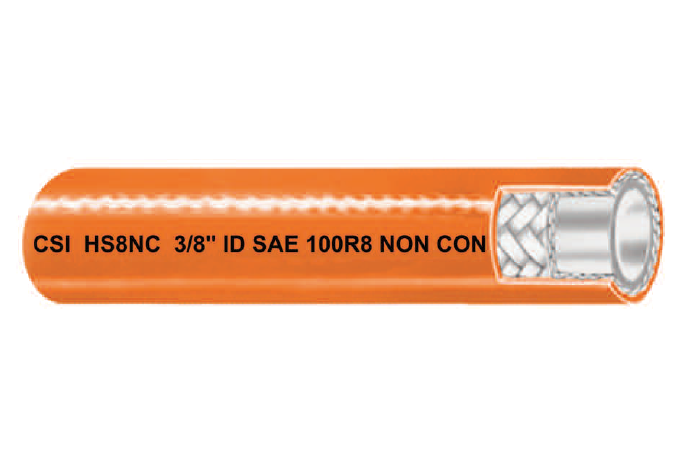

HS8NC Non-Conductive Thermoplastic Hydraulic Hose
High pressure SAE 100R8 thermoplastic hose with an orange non-conductive polyurethane cover, for aerial lifts and other work near energized lines.
1
What is this hose used for?
- High Pressure Hydraulics
- Industrial
- Agricultural
2
What are the key specifications?
SAE Rating
SAE 100R8
Cover
Orange Non-Conductive Polyurethane, Non-Perforated
Tube
Nylon
Reinforcement
Aramid Braid
Temperature
-40°F to +212°F (-40°C to +100°C)
Size Range
1/4" to 1/2"
3
What are the main product features?
- Non-conductive cover — orange polyurethane, non-perforated, for work near energized conductors.
- High visibility orange — the standard identification color for non-conductive hydraulic hose.
- Aramid braid reinforcement — 100R8 pressures with minimal weight.
- Nylon tube — smooth bore, low volumetric expansion.
4
Which sizes are available?
| Part Number | Hose ID | Hose OD | Working Pressure (lbs) |
Min. Burst Pressure (lbs) |
Min. Bend Radius | Weight per 100ft | Coil Footage |
|---|---|---|---|---|---|---|---|
| 1/4" HS8NC | 1/4" | 0.508" | 5,000 lbs. | 20,000 lbs. | 2" | 6 lbs. | 250ft |
| 3/8" HS8NC | 3/8" | 0.650" | 4,000 lbs. | 16,000 lbs. | 2.5" | 8 lbs. | 250ft |
| 1/2" HS8NC | 1/2" | 0.815" | 3,500 lbs. | 14,000 lbs. | 4" | 13 lbs. | 250ft |
Sold as bulk hose by the reel or coil. Reel and coil footage for each size is listed in the size chart above; cut lengths and hose assemblies are available — contact us for pricing.
Additional Product Data:
Series:
Color(s):
Dash Size:
Internal Diameter:
Outer Diameter:
MAWP:
3500
Tubing Construction:
Cover Construction:
Specifications and Approvals:
Compatible Series:
