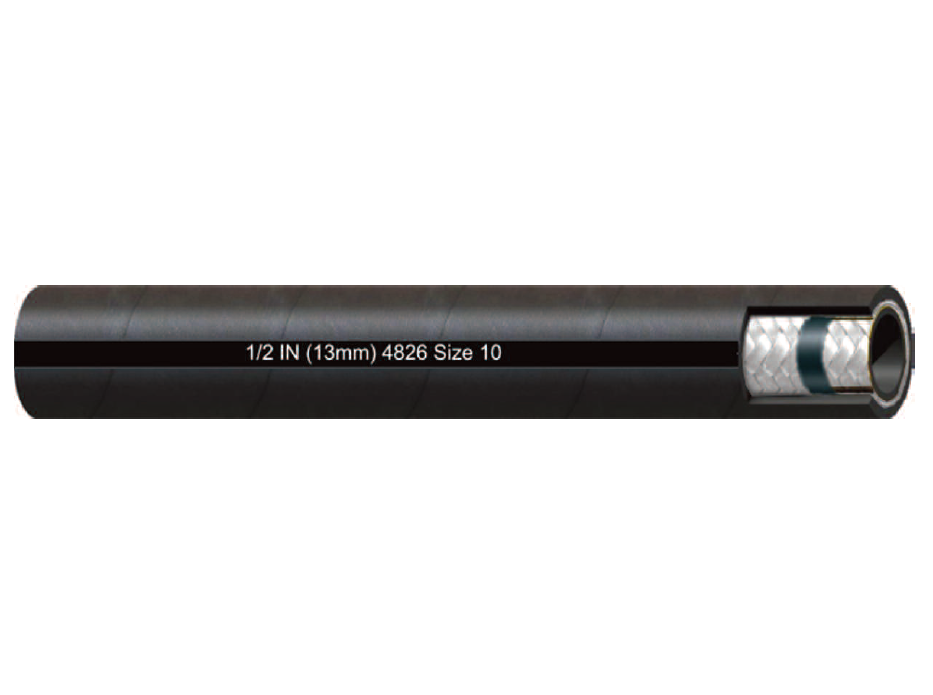

1/2" (-10) F204 by Couplamatic | -10 Refrigerant Hose | Two Fiber Braid | Internal Nylon Barrier | R12 & R134A Compatible | 1/2" ID | 700ft

1/2" (-10) F204 by Couplamatic | -10 Refrigerant Hose | Two Fiber Braid | Internal Nylon Barrier | R12 & R134A Compatible | 1/2" ID | 700ft

Sale price$3,445.20

Couplamatic Systems Inc.
Two Fiber Braid - F204 Refrigerant Hose (R12 & R134A Compatible)

Package Quantity: 700 FT

Buy More, Save More!
Quantity Price Each
2–3 $3,238.49
4–9 $3,100.68
10+ $2,756.16
Discounts applied in cart/checkout.

Product Data:

Series:
  • F204 Series
Color(s):
  • Black
Internal Diameter:
  • 0.50in
Applications: Air Conditioning, Refrigerant SAE Rating: N/A
Cover: Rubber Reinforcement: Two Fiber Braid, Internal Nylon Barrier
Temperature: -22F to +257F (-30C to +125C)
Part Number Hose ID Hose OD Working Pressure
(lbs)		 Min. Burst Pressure
(lbs)		 Min. Bend Radius Weight per 100ft Coil Footage
5/16" (6) F204 5/16"(-06) 0.750" 500 lbs. 2,000 lbs. 4" 20 lbs. 825ft
13/32" (-8) F204 13/32"(-08) 0.910" 500 lbs. 2,000 lbs. 5" 28 lbs. 725ft
1/2" (-10) F204 1/2"(-10) 1.000" 500 lbs. 2,000 lbs. 5" 33 lbs. 700ft
5/8" (-12) F204 5/8"(-12) 1.130" 350 lbs. 1,750 lbs. 6" 38 lbs. 525ft

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
