1/2" 025H by Couplamatic | Rubber Covered Push-on Hose | One Fiber Braid | Black | 1/2" ID | 500ft
Couplamatic Systems Inc.

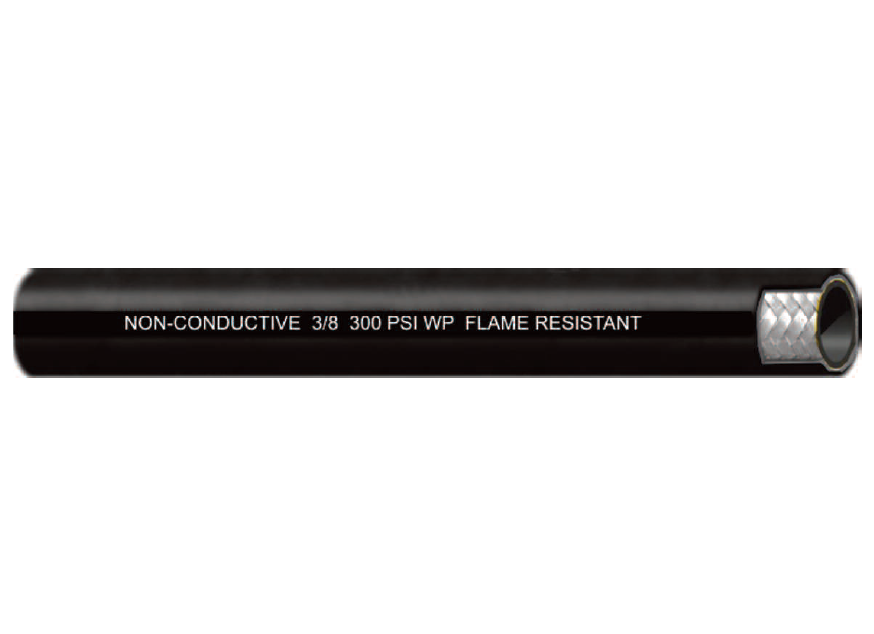

One Fiber Braid - 025H Rubber Covered Push-on Hose
Package Quantity: 500 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $1,634.34 |
| 8–14 | $1,564.79 |
| 15+ | $1,390.93 |
Discounts applied in cart/checkout.
Product Data:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
300
Cover Construction:
| Applications: | Low Pressure | SAE Rating: | N/A |
|---|---|---|---|
| Cover: | Black Oil Resistant Rubber | Reinforcement: | One Fiber Braid |
| Temperature: | -40 to +190F (-40 to +88C) |
| Part Number | Hose ID | Hose OD | Working Pressure (lbs) |
Min. Burst Pressure (lbs) |
Min. Bend Radius | Weight per 100ft | Coil Footage |
|---|---|---|---|---|---|---|---|
| 1/4" 025H | 1/4" | 0.500" | 300 lbs. | 1,200 lbs. | 2.5" | 9 lbs. | 500ft |
| 3/8" 025H | 3/8" | 0.640" | 300 lbs. | 1,200 lbs. | 3" | 11 lbs. | 500ft |
| 1/2" 025H | 1/2" | 0.750" | 300 lbs. | 1,200 lbs. | 5" | 13 lbs. | 500ft |
| 5/8" 025H | 5/8" | 0.910" | 300 lbs. | 1,200 lbs. | 6" | 19 lbs. | 500ft |
| 3/4" 025H | 3/4" | 1.031" | 300 lbs. | 1,200 lbs. | 7" | 21 lbs. | 500ft |
*Cut lengths available. 100ft minimum*
