1/2" 024H by Couplamatic | Rubber Covered Push-on Hose | One Fiber Braid | Blue | 1/2" ID | 500ft
Package Quantity: 500 FT
Buy more, save moreDiscounts applied in cart/checkout.

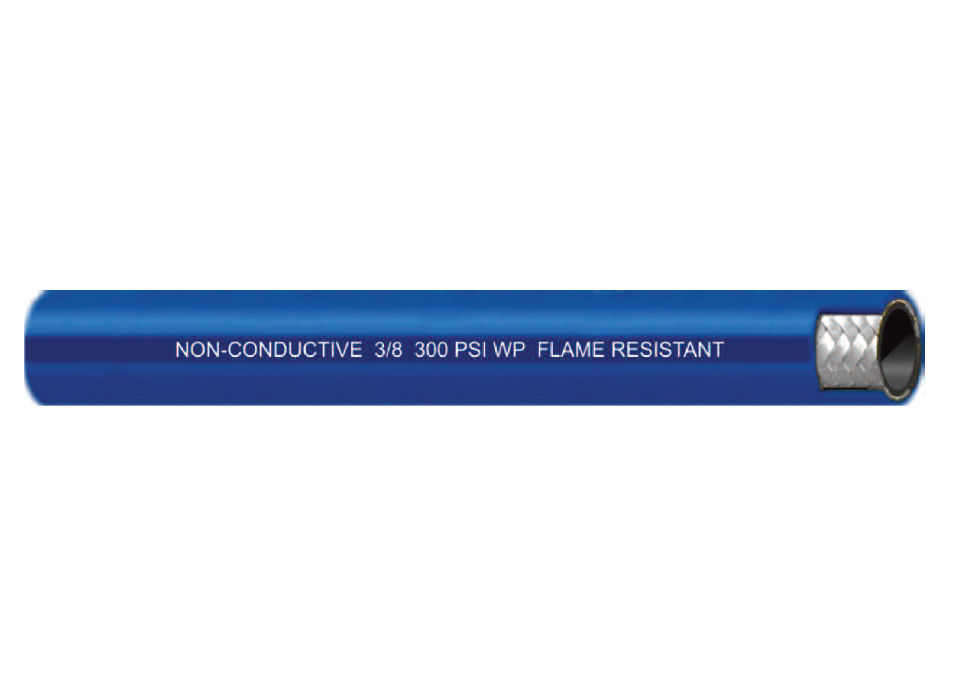

Push-On Hose — Blue Rubber Cover
024H Rubber Covered Push-On Hose
Low pressure one fiber braid push-on hose with a blue oil resistant rubber cover — the blue jacket makes it easy to keep separate from black push-on lines.
1
What is this hose used for?
- Low Pressure
2
What are the key specifications?
Cover
Blue Oil Resistant Rubber
Reinforcement
One Fiber Braid
Temperature
-40 to +190°F (-40 to +88°C)
Size Range
1/4" to 3/4"
3
What are the main product features?
- No clamps or crimping — assembles by hand onto push-on fittings.
- Blue cover — distinguishes this line at a glance from black push-on hose.
- Oil resistant rubber cover — shop air, fuel, oil and general low pressure service.
- Cut lengths available — 100ft minimum.
4
Which sizes are available?
| Part Number | Hose ID | Hose OD | Working Pressure (lbs) |
Min. Burst Pressure (lbs) |
Min. Bend Radius | Weight per 100ft | Coil Footage |
|---|---|---|---|---|---|---|---|
| 1/4" 024H | 1/4" | 0.500" | 300 lbs. | 1,200 lbs. | 2.5" | 9 lbs. | 500ft |
| 3/8" 024H | 3/8" | 0.640" | 300 lbs. | 1,200 lbs. | 3" | 11 lbs. | 500ft |
| 1/2" 024H | 1/2" | 0.750" | 300 lbs. | 1,200 lbs. | 5" | 13 lbs. | 500ft |
| 5/8" 024H | 5/8" | 0.910" | 300 lbs. | 1,200 lbs. | 6" | 19 lbs. | 500ft |
| 3/4" 024H | 3/4" | 1.031" | 300 lbs. | 1,200 lbs. | 7" | 21 lbs. | 500ft |
Cut lengths are available with a 100ft minimum. Sold as bulk hose by the reel or coil. Reel and coil footage for each size is listed in the size chart above; cut lengths and hose assemblies are available — contact us for pricing.
Additional Product Data:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
300
Cover Construction:
