1-1/4" SP580 by Couplamatic | Four Spiral High Pressure Hydraulic Hose | Caterpillar | 4 Spirals | SAE 100R12 | 1-1/4" ID | 50ft
Package Quantity: 50 FT
Buy more, save moreDiscounts applied in cart/checkout.
SAE 100R12 (Caterpillar) — Four Spiral

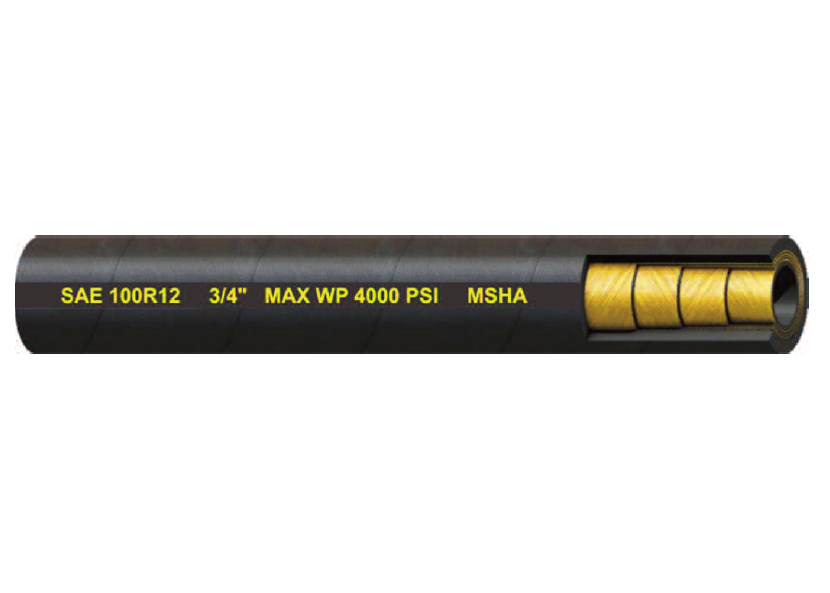

SP580 Four Spiral High Pressure Hydraulic Hose
Four-spiral SAE 100R12 hose built to Caterpillar dimensions, for high pressure circuits on Cat and Cat-compatible equipment.
1
What is this hose used for?
- High Pressure Hydraulics
- Industrial
- Agricultural
2
What are the key specifications?
SAE Rating
SAE 100R12
Cover
Abrasion and Flame Resistant Black Cover, MSHA approved
Reinforcement
4 Spirals
Temperature
-40°F to +250°F (-40°C to +121°C)
3
What are the main product features?
- Caterpillar dimensions — matches Cat hose sizing for direct replacement.
- Four steel spirals — full SAE 100R12 pressure and impulse capability.
- MSHA approved cover — abrasion and flame resistant black cover.
- +250°F service temperature — suited to hot hydraulic systems.
4
Which sizes are available?
| Part Number | Hose ID | Hose OD | Working Pressure (lbs) |
Min. Burst Pressure (lbs) |
Min. Bend Radius | Weight per 100ft | Coil Footage |
|---|---|---|---|---|---|---|---|
| 1/2" SP580 | 1/2" | 0.935" | 4,000 lbs. | 16,000 lbs. | 3.5" | 50 lbs. | 50ft |
| 3/4" SP580 | 3/4" | 1.210" | 4,000 lbs. | 16,000 lbs. | 4.75" | 81 lbs. | 50ft |
| 1" SP580 | 1" | 1.495" | 4,000 lbs. | 16,000 lbs. | 6" | 119 lbs. | 50ft |
| 1-1/4" SP580 | 1-1/4" | 1.850" | 3,000 lbs. | 12,000 lbs. | 8.25" | 155 lbs. | 50ft |
| 1-1/2" SP580 | 1-1/2" | 2.105" | 2,500 lbs. | 10,000 lbs. | 10" | 181 lbs. | 50ft |
| 2" SP580 | 2" | 2.626" | 2,500 lbs. | 10,000 lbs. | 12.5" | 256 lbs. | 50ft |
Sold as bulk hose by the reel or coil. Reel and coil footage for each size is listed in the size chart above; cut lengths and hose assemblies are available — contact us for pricing.
Additional Product Data:
Series:
Color(s):
Dash Size:
Internal Diameter:
Outer Diameter:
MAWP:
3000
Specifications and Approvals:
Compatible Series:
