1-1/4" 4SH - EN856 by Couplamatic | Four Spiral Extra High Pressure | Import Hydraulic Hose | 1-1/4" ID | 50ft Bulk Length
Buy more, save moreDiscounts applied in cart/checkout.
DIN 4SH — Four Spiral

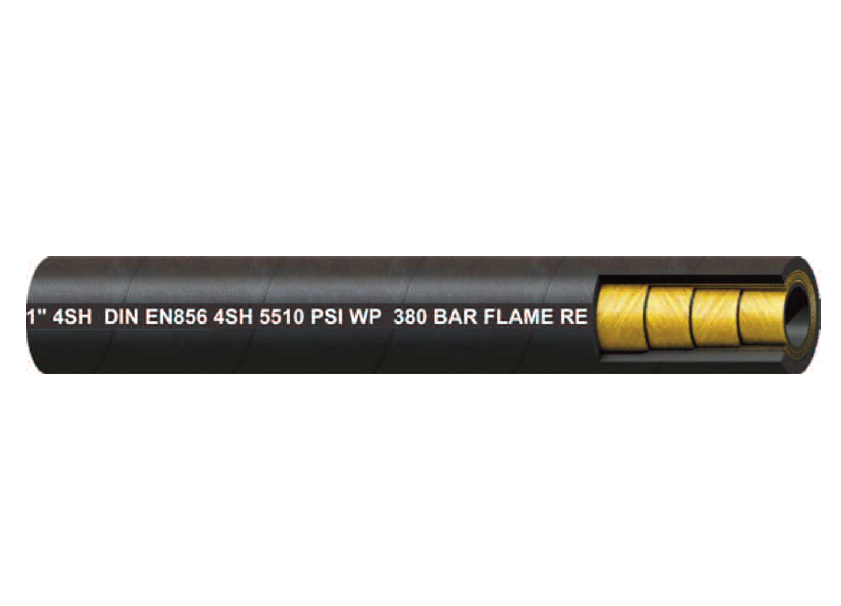

4SH Four Spiral Extra High Pressure Hydraulic Hose
DIN 4SH four-spiral hose for the very highest pressure hydraulic circuits, with a white layline and an MSHA approved abrasion and flame resistant cover.
1
What is this hose used for?
- Very High Pressure Hydraulics
- Industrial
- Agricultural
2
What are the key specifications?
Cover
Abrasion and Flame Resistant Black Cover, MSHA Approved, White Layline
Reinforcement
4 High Tensile Steel Spirals
Temperature
-40°F to +212°F (-40°C to +100°C)
Size Range
5/8" to 1-1/2"
3
What are the main product features?
- Four high tensile steel spirals — extra high pressure hydraulic capability.
- DIN 4SH construction — exceeds standard SAE spiral hose ratings.
- White layline — clear identification on the equipment.
- MSHA approved cover — abrasion and flame resistant black cover.
- No skive required — terminates with 4SH Series and 6GC Series no-skive couplings.
4
Which sizes are available?
| Part Number | Hose ID | Hose OD | Working Pressure (lbs) |
Min. Burst Pressure (lbs) |
Min. Bend Radius | Weight per 100ft | Coil Footage |
|---|---|---|---|---|---|---|---|
| 5/8" 4SH | 5/8" | 1.130" | 6,090 lbs. | 24,360 lbs. | 9.5" | 97 lbs. | Bulk |
| 3/4" 4SH | 3/4" | 1.268" | 6,090 lbs. | 24,360 lbs. | 11" | 112 lbs. | Bulk |
| 1" 4SH | 1" | 1.523" | 5,510 lbs. | 22,040 lbs. | 13.5" | 131 lbs. | Bulk |
| 1-1/4" 4SH | 1-1/4" | 1.791" | 5,075 lbs. | 20,300 lbs. | 18" | 181 lbs. | Bulk |
| 1-1/2" 4SH | 1-1/2" | 2.085" | 4,205 lbs. | 16,820 lbs. | 22" | 241 lbs. | Bulk |
Sold as bulk hose by the reel or coil. Reel and coil footage for each size is listed in the size chart above; cut lengths and hose assemblies are available — contact us for pricing.
Additional Product Data:
Series:
Color(s):
Dash Size:
Internal Diameter:
Outer Diameter:
MAWP:
5075
Specifications and Approvals:
Compatible Series:
