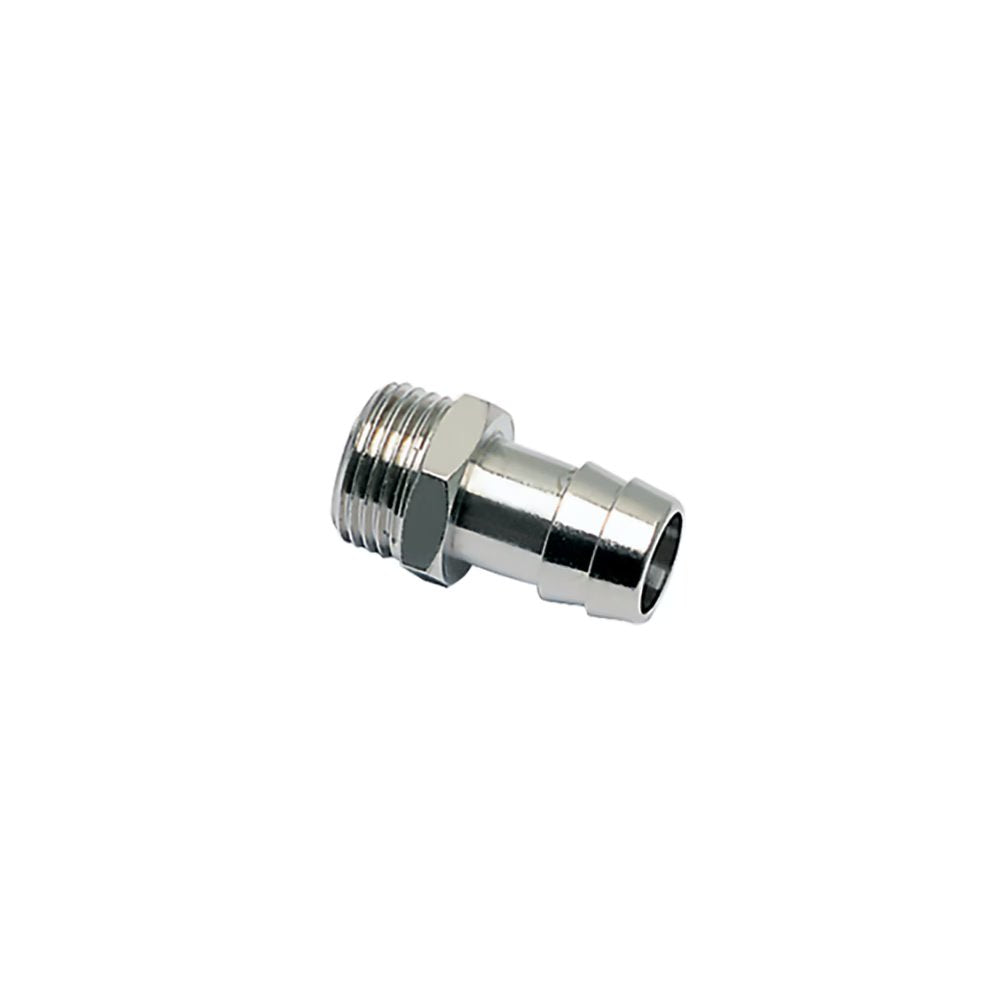

0931 08 17 by Parker | Legris Tailpiece Adapter for Rubber Hose | 9 mm Barb x 3/8" Male BSPP Thread | 19 mm Hex | 33 mm Length | Straight | Nickel-Plated Brass | Pack of 50
by Parker Hannifin
Nickel-Plated Brass Adapters:0931 Tailpiece Adaptor for Rubber Hose, Male BSPP Thread
Package Quantity: 50 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $373.42 |
| 15–29 | $337.67 |
| 30+ | $297.95 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
| Adapters and Manifolds: | ||||||||
|---|---|---|---|---|---|---|---|---|
 |
||||||||
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | ØD | ØD1 | C | E | F | K | L | Kg |
| 0931 06 10 | 6 mm | 7,3 mm | 1/8" | 6 mm | 12 mm | 4.5 mm | 19 mm | .009 Kg |
| 0931 06 13 | 6 mm | 7,3 mm | 1/4" | 8 mm | 14 mm | 5 mm | 19 mm | .013 Kg |
| 0931 07 10 | 7 mm | 8,3 mm | 1/8" | 6 mm | 12 mm | 4 mm | 19 mm | .009 Kg |
| 0931 07 13 | 7 mm | 8,3 mm | 1/4" | 8 mm | 14 mm | 5 mm | 19 mm | .014 Kg |
| 0931 07 17 | 7 mm | 8,3 mm | 3/8" | 9 mm | 19 mm | 5 mm | 19 mm | .021 Kg |
| 0931 08 10 | 8/9 mm | 9,3 mm | 1/8" | 6 mm | 12 mm | 4 mm | 19 mm | .009 Kg |
| 0931 08 13 | 8/9 mm | 9,3 mm | 1/4" | 8 mm | 14 mm | 5 mm | 19 mm | .014 Kg |
| 0931 08 17 | 8/9 mm | 9,3 mm | 3/8" | 9 mm | 19 mm | 5 mm | 19 mm | .022 Kg |
| 0931 10 13 | 10 mm | 12,5 mm | 1/4" | 8 mm | 14 mm | 5 mm | 19 mm | .016 Kg |
| 0931 10 17 | 10 mm | 12,5 mm | 3/8" | 9 mm | 19 mm | 5 mm | 19 mm | .024 Kg |
| 0931 10 21 | 10 mm | 12,5 mm | 1/2" | 10 mm | 22 mm | 6 mm | 20 mm | .031 Kg |
| 0931 15 17 | 15/16 mm | 17,5 mm | 3/8" | 9 mm | 19 mm | 6 mm | 24 mm | .030 Kg |
| 0931 15 21 | 15/16 mm | 17,5 mm | 1/2" | 10 mm | 22 mm | 6 mm | 24 mm | .036 Kg |
| 0931 18 21 | 18 mm | 20,6 mm | 1/2" | 10 mm | 22 mm | 6 mm | 24 mm | .040 Kg |
