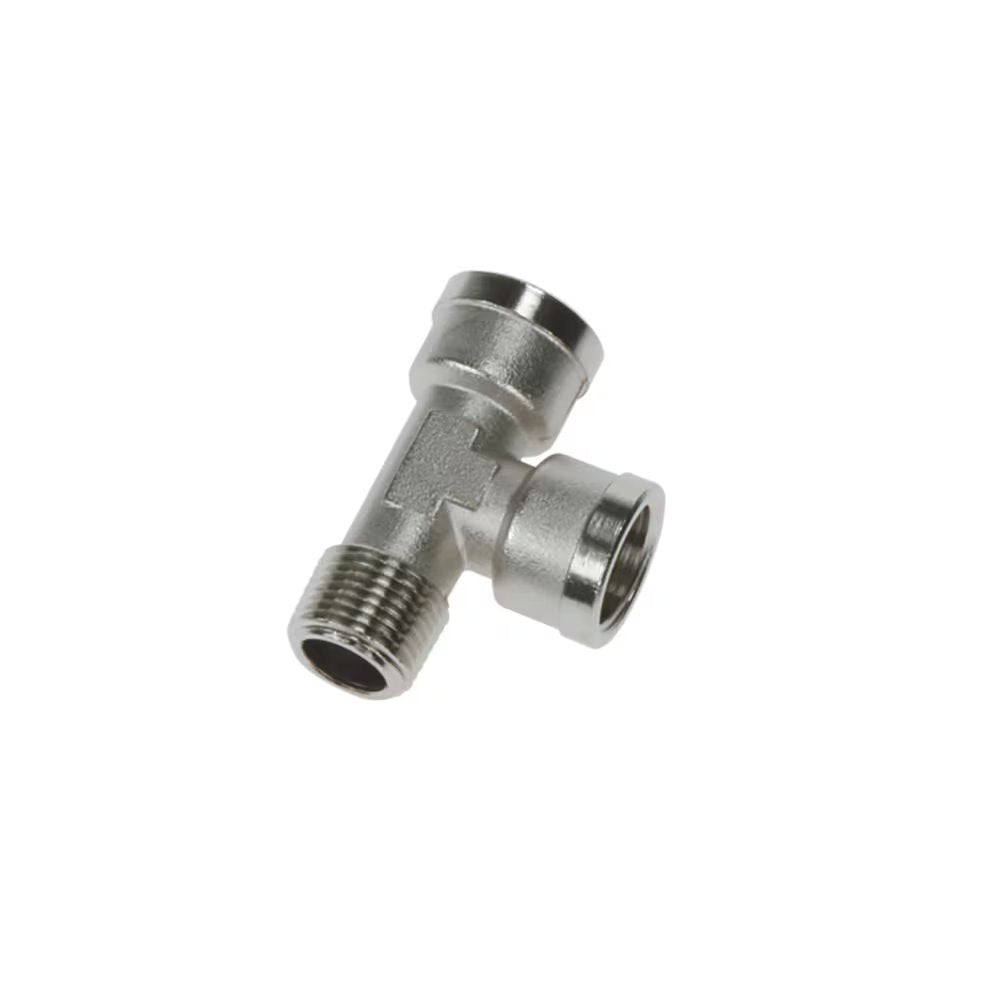

0917 00 13 by Parker | Legris Stud Fitting | 1/4" Male BSPT Thread x 1/4" Female BSSP Thread | 45 mm Length | Tee | Nickel-Plated Brass | Pack of 50
by Parker Hannifin
Nickel-Plated Brass Adapters:0917 Equal Stud Run Tee, Female BSPP/Male BSPT Thread
Package Quantity: 50 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $477.13 |
| 15–29 | $431.45 |
| 30+ | $380.69 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Tee
Ends Configuration:
Material(s):
| Adapters and Manifolds: | |||||||||
|---|---|---|---|---|---|---|---|---|---|
 |
|||||||||
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | C1 | C2 | E | G | H | H1 | J | L | Kg |
| 0917 00 10 | 1/8" | 1/8" | 8 mm | 13 mm | 17 mm | 18.5 mm | 10 mm | 18.5 mm | .019 Kg |
| 0917 00 13 | 1/4" | 1/4" | 11 mm | 17 mm | 22.5 mm | 22.5 mm | 12 mm | 22.5 mm | .038 Kg |
| 0917 00 17 | 3/8" | 3/8" | 11.5 mm | 21 mm | 25.5 mm | 25.5 mm | 15 mm | 25.5 mm | .058 Kg |
| 0917 00 21 | 1/2" | 1/2" | 14 mm | 26 mm | 30 mm | 30 mm | 19 mm | 30 mm | .089 Kg |
| 0917 00 27 | 3/4" | 3/4" | 16.5 mm | 32 mm | 34.5 mm | 35.5 mm | 22 mm | 35.5 mm | .136 Kg |
