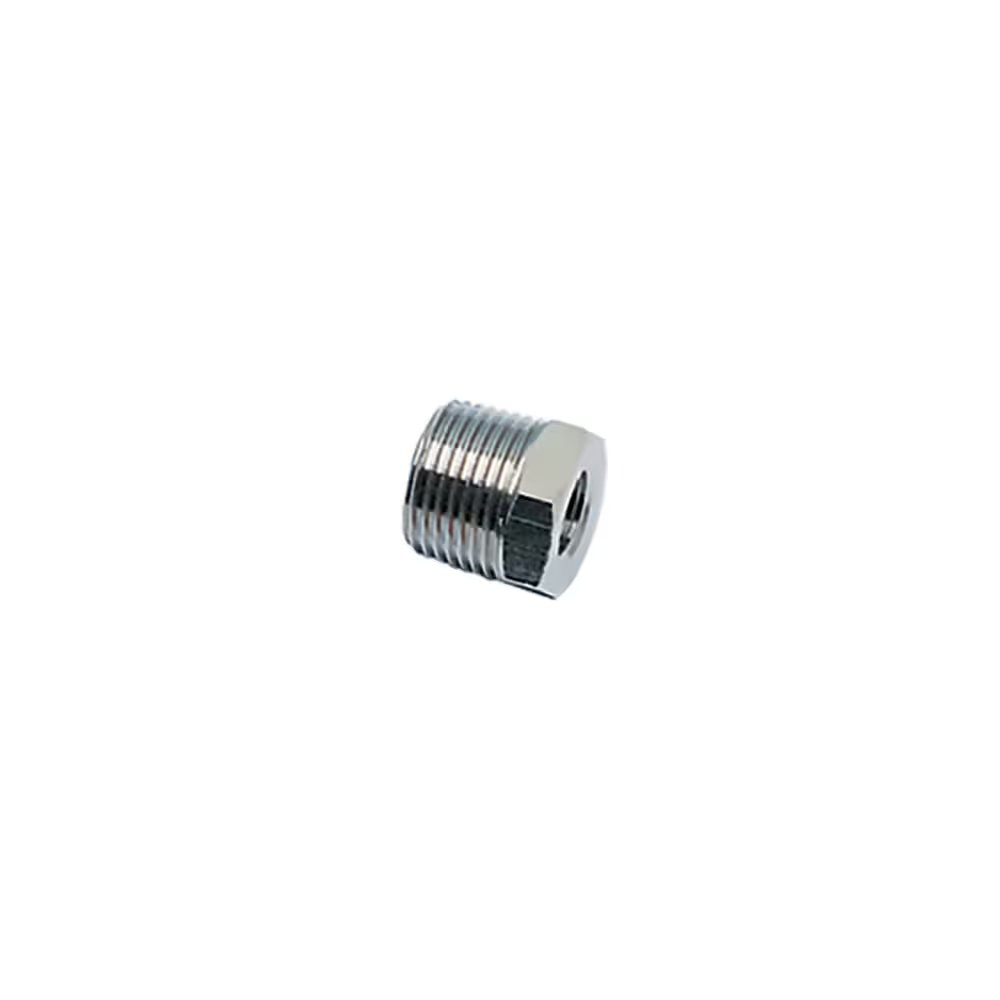

0904 13 17 by Parker | Legris Reducer | 3/8" Male BSPT Thread x 1/4" Female BSPP Thread | 17 mm Hex | 16.5 mm Length | Straight | Nickel-Plated Brass | Pack of 50
by Parker Hannifin
Nickel-Plated Brass Adapters:0904 Reducer, Male BSPT/Female BSPP Thread
Package Quantity: 50 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $181.25 |
| 20–59 | $163.90 |
| 60+ | $144.62 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
| Adapters and Manifolds: | ||||||
|---|---|---|---|---|---|---|
 |
||||||
 |
|||||
|---|---|---|---|---|---|
| Part Number | C1 | C2 | F | L | Kg |
| 0904 10 13 | 1/4" | 1/8" | 14 mm | 16 mm | .010 Kg |
| 0904 10 17 | 3/8" | 1/8" | 17 mm | 16.5 mm | .020 Kg |
| 0904 13 17 | 3/8" | 1/4" | 17 mm | 16.5 mm | .015 Kg |
| 0904 13 21 | 1/2" | 1/4" | 22 mm | 19.5 mm | .031 Kg |
| 0904 17 21 | 1/2" | 3/8" | 22 mm | 19.5 mm | .024 Kg |
| 0904 17 27 | 3/4" | 3/8" | 27 mm | 23 mm | .056 Kg |
| 0904 21 27 | 3/4" | 1/2" | 27 mm | 23 mm | .045 Kg |
| 0904 21 34 | 1" | 1/2" | 34 mm | 27 mm | .101 Kg |
| 0904 27 34 | 1" | 3/4" | 34 mm | 27 mm | .074 Kg |
