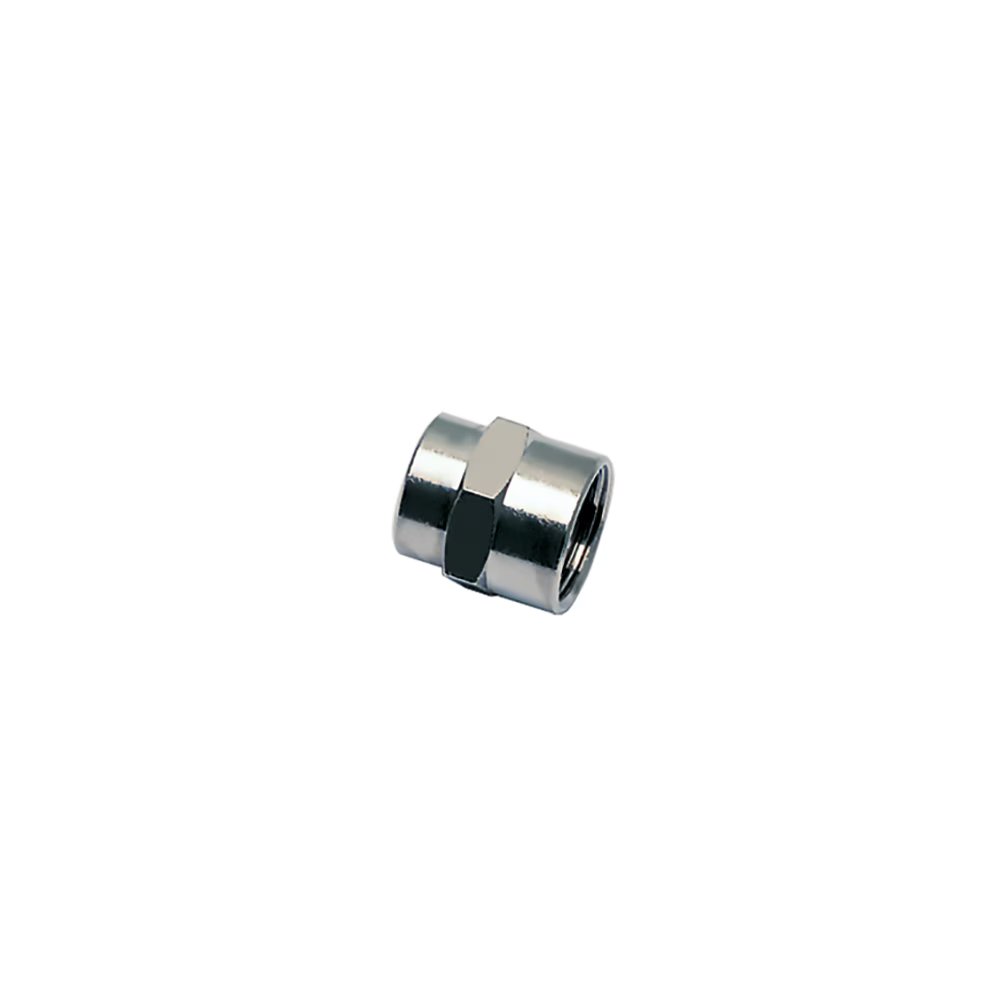

0902 13 17 by Parker | Legris Unequal Adapter | 1/4" Female BSPP Thread x 3/8" Female BSPP Thread | 22 mm Hex | 22.5 mm Length | Straight | Nickel-Plated Brass | Pack of 50
by Parker Hannifin
Nickel-Plated Brass Adapters:0902 Equal and Unequal Adaptor, Female BSPP and Metric Thread
Package Quantity: 50 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $195.57 |
| 20–59 | $176.84 |
| 60+ | $156.04 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
| Adapters and Manifolds: | ||||||
|---|---|---|---|---|---|---|
 |
||||||
 |
|||||
|---|---|---|---|---|---|
| Part Number | C1 | C2 | F | L | Kg |
| 0902 00 19 | M5x0.8 | M5x0.8 | 8 mm | 11 mm | .003 Kg |
| 0902 19 10 | M5x0.8 | 1/8" | 14 mm | 13.5 mm | .009 Kg |
| 0902 00 10 | 1/8" | 1/8" | 14 mm | 15 mm | .010 Kg |
| 0902 10 13 | 1/8" | 1/4" | 17 mm | 19 mm | .017 Kg |
| 0902 10 17 | 1/8" | 3/8" | 22 mm | 20 mm | .028 Kg |
| 0902 00 13 | 1/4" | 1/4" | 17 mm | 22 mm | .019 Kg |
| 0902 13 17 | 1/4" | 3/8" | 22 mm | 22.5 mm | .031 Kg |
| 0902 13 21 | 1/4" | 1/2" | 26 mm | 24 mm | .033 Kg |
| 0902 00 17 | 3/8" | 3/8" | 22 mm | 23 mm | .035 Kg |
| 0902 17 21 | 3/8" | 1/2" | 24 mm | 26 mm | .036 Kg |
| 0902 00 21 | 1/2" | 1/2" | 26 mm | 28 mm | .049 Kg |
| 0902 21 27 | 1/2" | 3/4" | 32 mm | 30 mm | .078 Kg |
| 0902 00 27 | 3/4" | 3/4" | 32 mm | 32 mm | .076 Kg |
