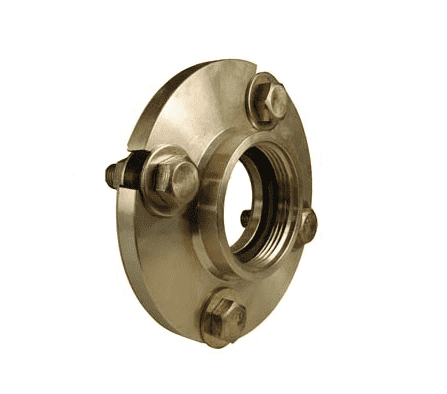

09-319-00001 Dixon Valve Brass International Shore Connection - Ship Side

09-319-00001 Dixon Valve Brass International Shore Connection - Ship Side

Sale price$324.65
Buy more, save moreDiscounts applied in cart/checkout.
Application
  • Makes possible the connection of two different threads between ship and shore or between ships.
Features:
  • Meets US Coast Guard specifications for vessels 1000 gross tons or more
  • 7" OD brass flange with 4-3/4" holes
  • Solid wedge disc with tapered seats
  • Includes 8 washers, 4 hexagon brass nuts, 4 hex head bolts, 1 washer, 1 fiber gasket
  • Working pressure: 300 PSI
Part Number Description Weight (Lbs.)
09-318-00001 Shore Side 7.3800
09-319-00001 Ship Side 7.1400
WARNING: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.

Additional Product Data:

Shape:

Straight

Ends Configuration:
  • 2-1/2in Female NST
Material(s):
  • Brass

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.

Explore Dixon Valve & Coupling
