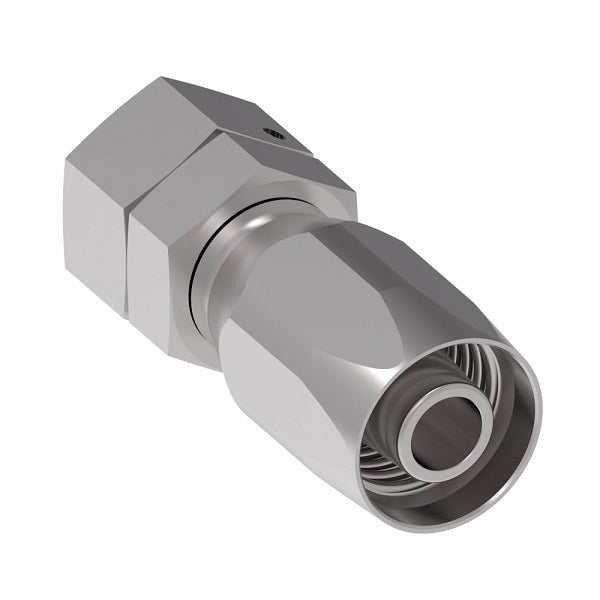

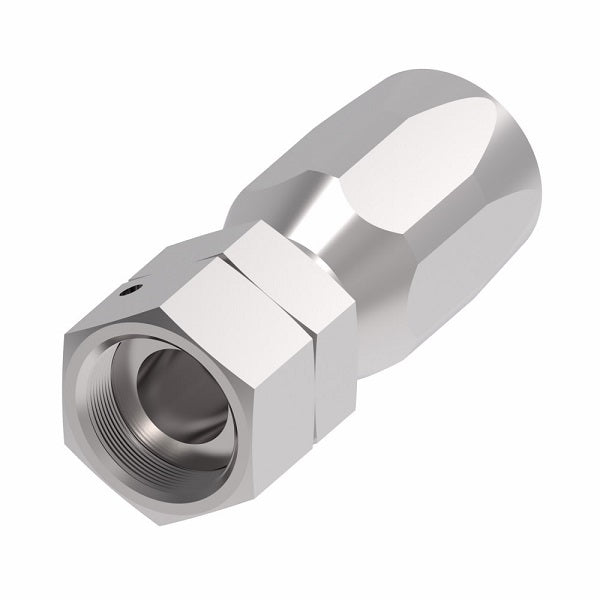

07.420-4-4 Aeroquip by Danfoss | Female BSP Swivel 100R2 Skive Style Reusable Hose Fitting | -04 Female BSP Swivel x -04 Reusable Hose End | Steel
07.420-4-4 Aeroquip by Danfoss | Female BSP Swivel 100R2 Skive Style Reusable Hose Fitting | -04 Female BSP Swivel x -04 Reusable Hose End | Steel
07.420-4-4 Aeroquip by Danfoss | Female BSP Swivel 100R2 Skive Style Reusable Hose Fitting | -04 Female BSP Swivel x -04 Reusable Hose End | Steel

07.420-4-4 Aeroquip by Danfoss | Female BSP Swivel 100R2 Skive Style Reusable Hose Fitting | -04 Female BSP Swivel x -04 Reusable Hose End | Steel

Sale price$47.86
Buy more, save moreDiscounts applied in cart/checkout.
Technical Info:
Note:
  • For use with hose: 2766.
  • Also for use with 2781 and FC195 ONLY at SAE 100R2 pressures.
Steel
Part Number 		Hose Size Thread A D EØ
07.420-4-4 -04 1/4-19 2.72" 1.48" 0.16"
07.420-6-6 -06 3/8-19 2.97" 1.50" 0.31"
07.420-8-8 -08 1/2-14 3.11" 1.59" 0.39"
07.420-12-12 -12 3/4-14 3.70" 1.83" 0.61"

Additional Product Data:

Shape:

Straight

Ends Configuration:
  • 1/4in Female BSPP
  • 1/4in Reusable Hose End
Material(s):
  • Steel

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
