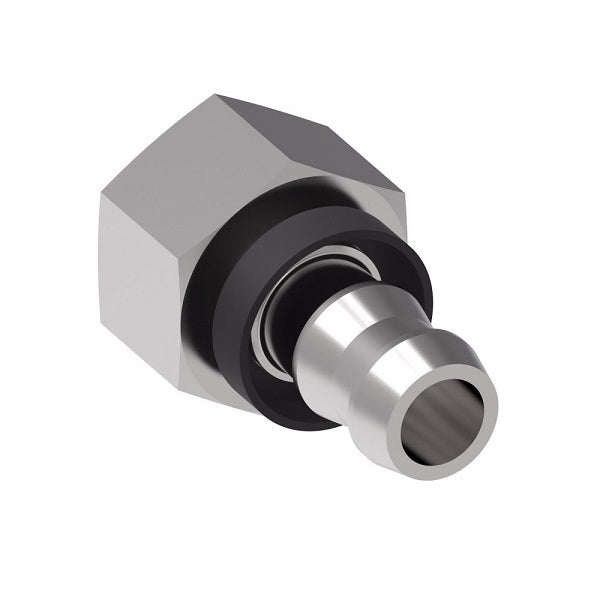

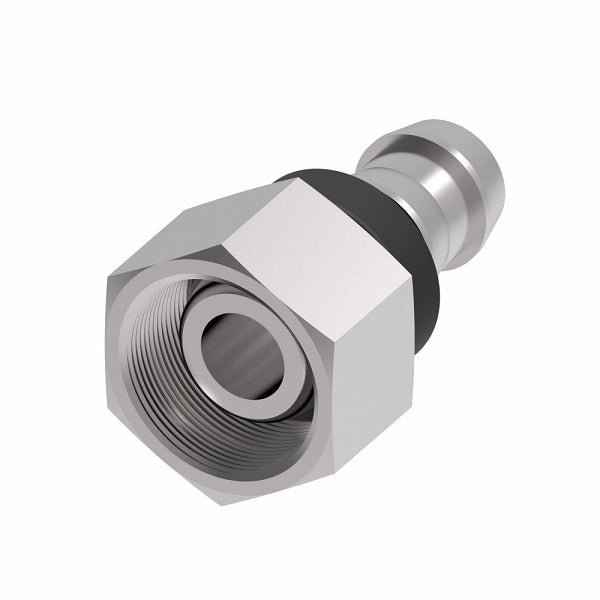

07.001-13-8 Aeroquip by Danfoss | Metric Female 24° Swivel DIN 3901/3902 Socketless Reusable Hose Fitting | L13 Female DKO/DIN x -08 Push-On Hose Barb | Steel
07.001-13-8 Aeroquip by Danfoss | Metric Female 24° Swivel DIN 3901/3902 Socketless Reusable Hose Fitting | L13 Female DKO/DIN x -08 Push-On Hose Barb | Steel
07.001-13-8 Aeroquip by Danfoss | Metric Female 24° Swivel DIN 3901/3902 Socketless Reusable Hose Fitting | L13 Female DKO/DIN x -08 Push-On Hose Barb | Steel

07.001-13-8 Aeroquip by Danfoss | Metric Female 24° Swivel DIN 3901/3902 Socketless Reusable Hose Fitting | L13 Female DKO/DIN x -08 Push-On Hose Barb | Steel

Sale price$17.12

Aeroquip® by Danfoss
Socketless (Push-On Hose Barb) Reusable Hose Fitting - Metric Female 24° Swivel DIN 3901/3902 - Straight

l.Rh.

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
10–39 $16.09
40–79 $14.55
80+ $12.84
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • L13 Female DIN
  • 1/2in Push-On Hose Barb
Material(s):
  • Steel
Technical Info:
Steel
Part Number 		Hose Size Thread A D EØ RØ
07.001-6-4 -04 M14 x 1.5 1.38" 0.63" 0.16" 0.31"
07.001-13-8 -08 M22 x 1.5 1.67" 0.66" 0.39" 0.59"

* RØ is tube O.D. and refers to mating component when not called out on the illustration.

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
