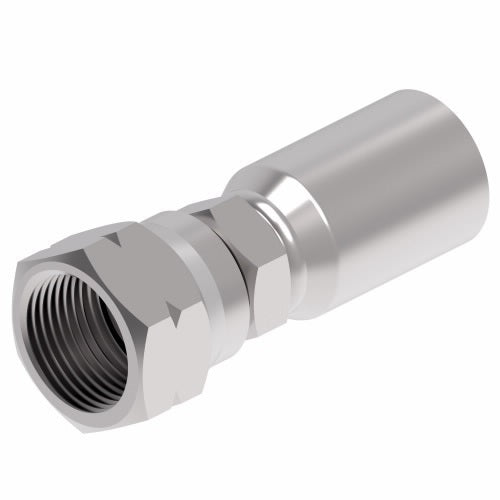

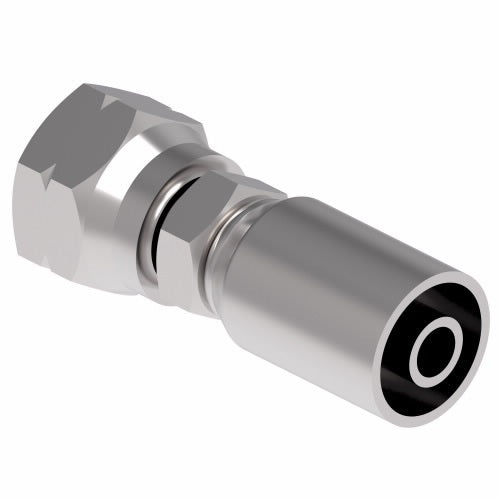

06E-406 Weatherhead by Danfoss | Everflex E Series | Female SAE 45° Swivel Crimp Fitting | -06 Female SAE 45° x -06 Hose Barb | Steel
06E-406 Weatherhead by Danfoss | Everflex E Series | Female SAE 45° Swivel Crimp Fitting | -06 Female SAE 45° x -06 Hose Barb | Steel
06E-406 Weatherhead by Danfoss | Everflex E Series | Female SAE 45° Swivel Crimp Fitting | -06 Female SAE 45° x -06 Hose Barb | Steel

06E-406 Weatherhead by Danfoss | Everflex E Series | Female SAE 45° Swivel Crimp Fitting | -06 Female SAE 45° x -06 Hose Barb | Steel

Sale price$13.11

Weatherhead by Danfoss
Everflex 'E' Series Crimp Fitting - Female SAE 45° Swivel - Straight
Buy More, Save More!
Quantity Price Each
10–39 $12.32
40–79 $11.14
80+ $9.83
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Weatherhead
Series:
  • Everflex E Series
Shape:

Straight
Applications:
  • General purpose low and medium pressure hydraulics.
  • Use H277 where shock hazards exist.
Pressure:
  • Determined by maximum operating pressure for hose size and hose end configuration whichever is lesser.
Material:
  • Low carbon steel
  • Plating: Zinc; clear trivalent chromate
Compatible Hose:
  • H009, H243, H275, H277, H285
Warning:
  • For PTFE hose applications, 'E' series fittings must be used with H243 and H277 0.030" thin wall hose only
Steel
Part Number		 Hose I.D. Tube Size Thread Size A Hose Cut-Off
Factor		 Hole Dia. Hex E Hex F
05E-406 5/16" 3/8" 5/8-18 2.03" 1.13" 0.22" 9/16" 3/4"
06E-406 3/8" 3/8" 5/8-18 2.06" 1.13" 0.27" 9/16" 3/4"
12E-412 3/4" 3/4" 1-1/16-14 2.76" 1.56" 0.61" 1" 1-1/4"

Note: Drawings may differ from actual parts.
