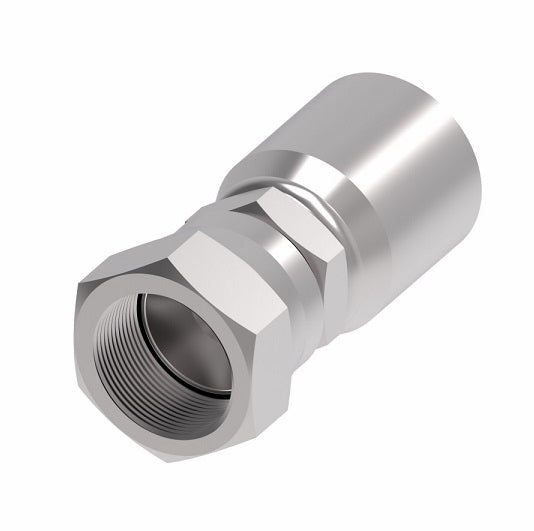

06E-06L Weatherhead by Danfoss | Everflex E Series | Female JIS 30° Flare Parallel Pipe Swivel Crimp Fitting | -06 Female JIS 30° Flare Parallel Pipe Swivel x -06 Hose Barb | Steel
06E-06L Weatherhead by Danfoss | Everflex E Series | Female JIS 30° Flare Parallel Pipe Swivel Crimp Fitting | -06 Female JIS 30° Flare Parallel Pipe Swivel x -06 Hose Barb | Steel

06E-06L Weatherhead by Danfoss | Everflex E Series | Female JIS 30° Flare Parallel Pipe Swivel Crimp Fitting | -06 Female JIS 30° Flare Parallel Pipe Swivel x -06 Hose Barb | Steel

Sale price$34.84

Weatherhead by Danfoss
Everflex 'E' Series Crimp Fitting - Female JIS 30° Flare Parallel Pipe Swivel - Straight
Buy More, Save More!
Quantity Price Each
10–39 $32.75
40–79 $29.61
80+ $26.13
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Weatherhead
Series:
  • Everflex E Series
Shape:

Straight
Applications:
  • General purpose low and medium pressure hydraulics.
  • Use H277 where shock hazards exist.
Pressure:
  • Determined by maximum operating pressure for hose size and hose end configuration whichever is lesser.
Material:
  • Low carbon steel
  • Plating: Zinc; clear trivalent chromate
Compatible Hose:
  • H009, H243, H275, H277, H285
Warning:
  • For PTFE hose applications, 'E' series fittings must be used with H243 and H277 0.030" thin wall hose only
Steel
Part Number		 Hose I.D. Tube Size Thread Size A Hose Cut-Off
Factor		 Hole Dia. Hex E Hex F
04E-04L 1/4" 1/4" G-1/4-19* 2.03" 1.19" 0.16" 9/16" 3/4"
06E-06L 3/8" 3/8" G-3/8-19* 2.22" 1.25" 0.27" 11/16" 7/8"
08E-08L 1/2" 1/2" G-1/2-14* 2.30" 1.25" 0.39" 13/16" 1-1/16"
12E-12L 3/4" 3/4" G-3/4-14* 2.75" 1.50" 0.81" 1" 1-5/16"
16E-16L 1" 1" G-1-11* 3.15" 1.81" 0.84" 1-1/4" 1-1/2"

* G as part of thread size is ISO designation for parallel thread.

Note: Drawings may differ from actual parts.
