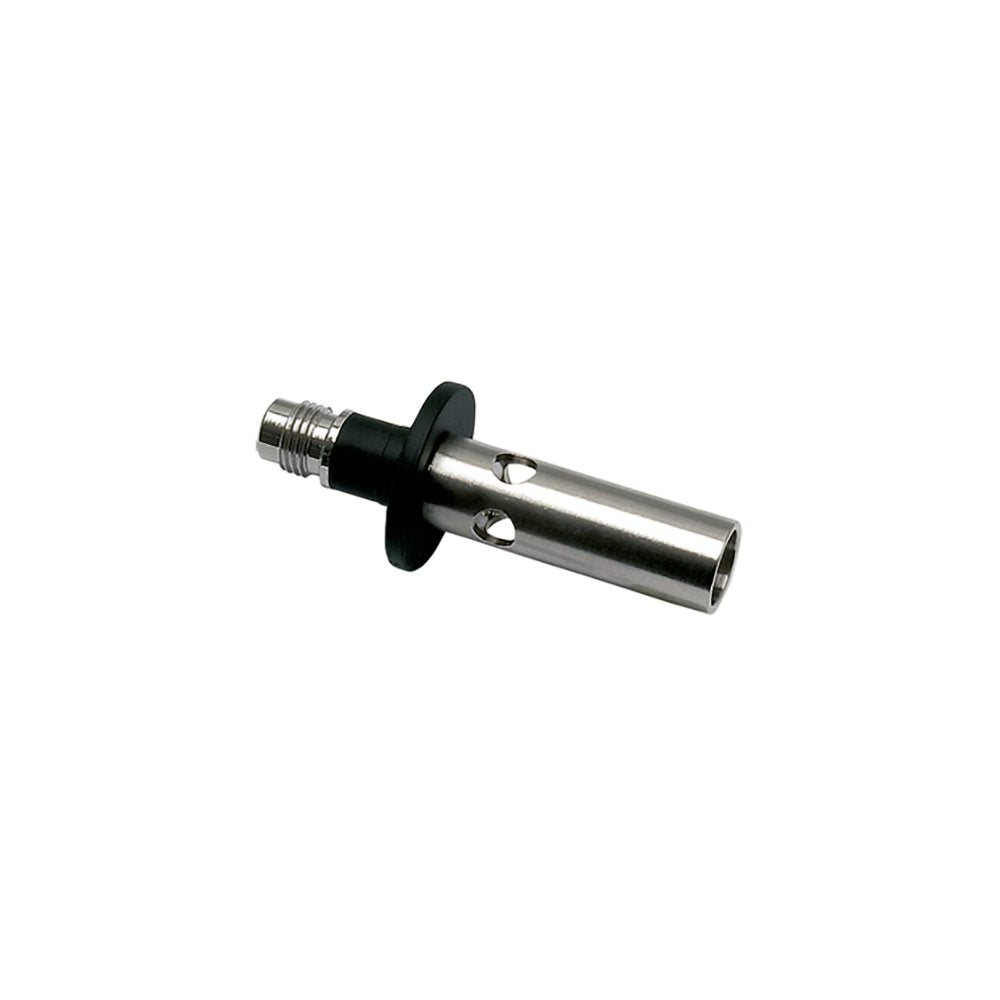

0690 11 00 by Parker | Legris Safety Booster Nozzle w/ Air Screen | M12x1.25 Male Metric Thread | 76 mm Length | Straight | Nickel-Plated Brass | Pack of 5

0690 11 00 by Parker | Legris Safety Booster Nozzle w/ Air Screen | M12x1.25 Male Metric Thread | 76 mm Length | Straight | Nickel-Plated Brass | Pack of 5

Sale price$120.93

by Parker Hannifin
Value-Added Polymer Blowguns:0690 11 Safety Booster Nozzle with Air Screen

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
20–29 $113.67
30–59 $102.79
60+ $90.70
Discounts applied in cart/checkout.

Product Data:

Series:
  • 0690 Series
Shape:

Straight

Material(s):
  • Nickel-Plated Brass
  • Polymer
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 0 to 10 bar
  • Working Temperature: Air: -15°C to +50°C
    Dry Air: -20°C to +80°C
  • Tubes: Tubes and hoses
Advantages:
      Basic & standard blowguns:
  • In compliance with international noise and pressure regulations
  • Swivel nozzles for directional jet
      • Safety blowguns:
  • Meets OSHA or SUVA standards according to model and complies with:
      • - noise exposure requirements
      - provisions relating to outlet pressure
  • Energy-saving blowguns
  • Limited flow for lower energy consumption
  • Kits and nozzles: to ensure a suitable product
Regulations:
  • RoHS
  • PED
  • REACH
  • OSHA
  • Protection of design:
    All designs and models of Parker Legris blowguns have been registered with the following numbers: 13 224 / 13 225 / 13 226
  • DI: 2003/10/CE
    Regulation relating to exposure to noise, particularly with regard to risks to hearing. The noise level must be less than 87 dBA.
Component Materials:
  • Body: Technical Polymer
  • Connection: Nickel-Plated Brass
  • Nozzle:
    - Aluminum (standard blowgun)
    - Nickel-Plated Brass (Safety and other blowguns)
  • Trigger: Technical Polymer
Part Number Diameter Nominal (DN) C G G1 L L1 Kg
0690 11 00 2.5 mm M12x1.25 30 mm 15 mm 76 mm 54 mm .045 Kg

Deflector: technical polymer

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
