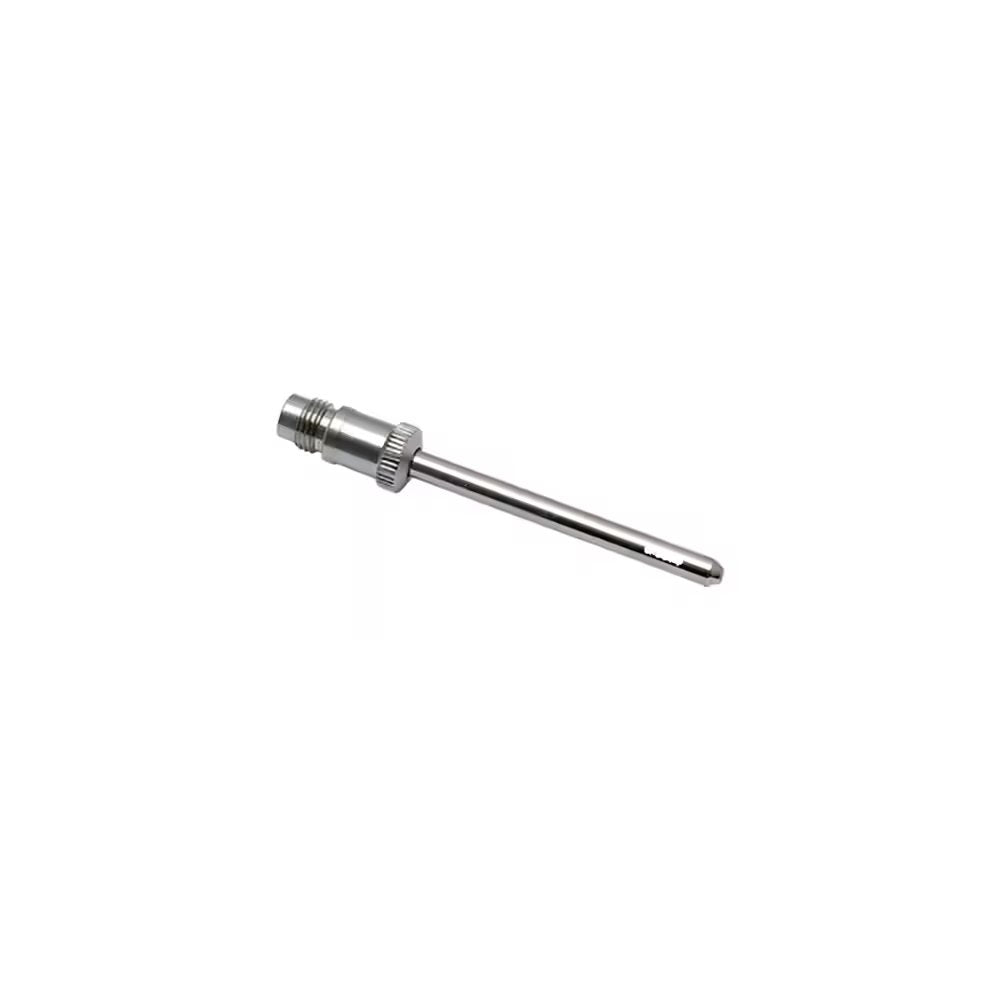

0690 04 00 by Parker | Legris Safety Nozzle | M12x1.25 Male Metric Thread | 102 mm Length | Straight | Nickel-Plated Brass | Pack of 5

0690 04 00 by Parker | Legris Safety Nozzle | M12x1.25 Male Metric Thread | 102 mm Length | Straight | Nickel-Plated Brass | Pack of 5

Sale price$78.02

by Parker Hannifin
Value-Added Polymer Blowguns:0690 04 Safety Straight Nozzle (Short)

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
20–29 $73.34
30–59 $66.32
60+ $58.52
Discounts applied in cart/checkout.

Product Data:

Series:
  • 0690 Series
Shape:

Straight

Material(s):
  • Nickel-Plated Brass
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 0 to 10 bar
  • Working Temperature: Air: -15°C to +50°C
    Dry Air: -20°C to +80°C
  • Tubes: Tubes and hoses
Advantages:
      Basic & standard blowguns:
  • In compliance with international noise and pressure regulations
  • Swivel nozzles for directional jet
      • Safety blowguns:
  • Meets OSHA or SUVA standards according to model and complies with:
      • - noise exposure requirements
      - provisions relating to outlet pressure
  • Energy-saving blowguns
  • Limited flow for lower energy consumption
  • Kits and nozzles: to ensure a suitable product
Regulations:
  • RoHS
  • PED
  • REACH
  • OSHA
  • Protection of design:
    All designs and models of Parker Legris blowguns have been registered with the following numbers: 13 224 / 13 225 / 13 226
  • DI: 2003/10/CE
    Regulation relating to exposure to noise, particularly with regard to risks to hearing. The noise level must be less than 87 dBA.
Component Materials:
  • Body: Technical Polymer
  • Connection: Nickel-Plated Brass
  • Nozzle:
    - Aluminum (standard blowgun)
    - Nickel-Plated Brass (Safety and other blowguns)
  • Trigger: Technical Polymer
Part Number Diameter Nominal (DN) C G L L1 Kg
0690 04 00 2.5 mm M12x1.25 15 mm 102 mm 77 mm .034 Kg
