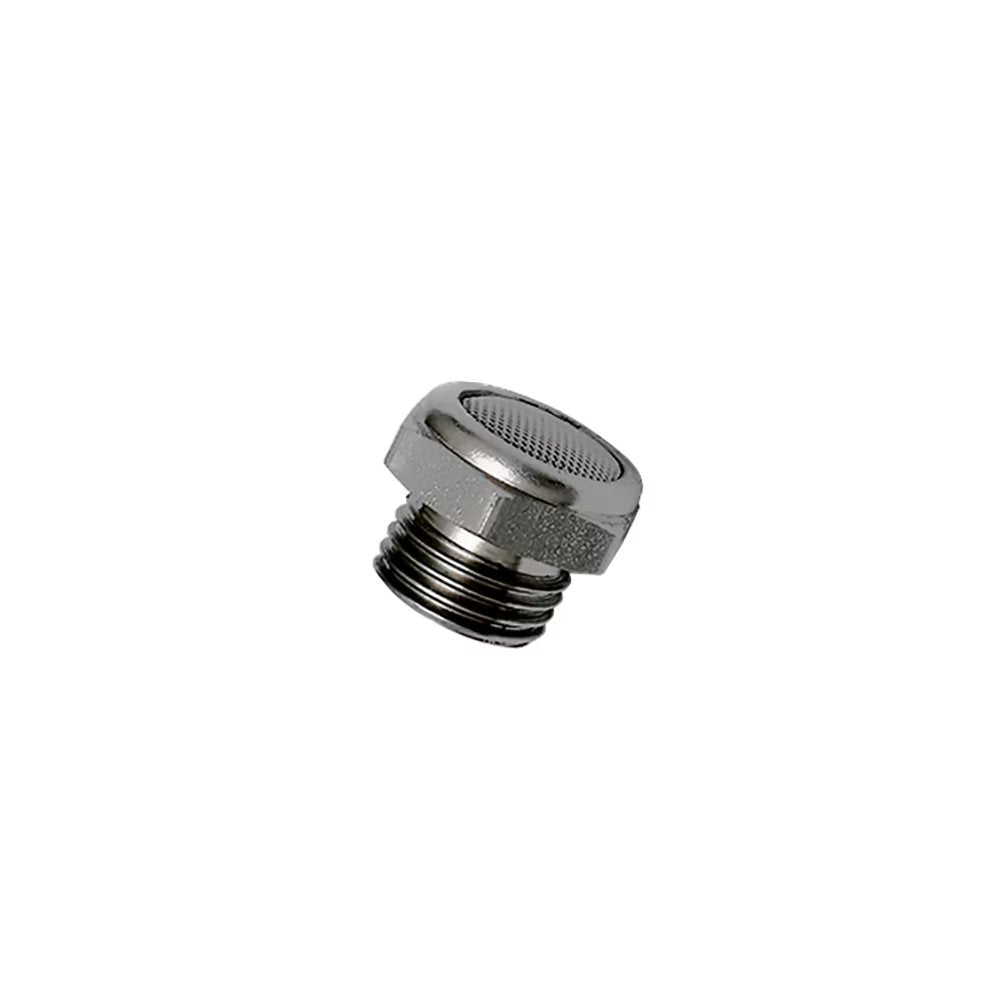

0682 00 21 by Parker | Legris Threaded Silencer | G1/2" Male BSPP Thread | 22 mm length | Stainless Steel

0682 00 21 by Parker | Legris Threaded Silencer | G1/2" Male BSPP Thread | 22 mm length | Stainless Steel

Sale price$53.45

by Parker Hannifin
Silencers:0682 Compact Silencer, Male BSPP Thread
Buy More, Save More!
Quantity Price Each
20–39 $50.24
40–79 $45.43
80+ $40.09
Discounts applied in cart/checkout.

Product Data:

Series:
  • 0682 Series
Shape:

No Orientation

Ends Configuration:
  • 1/2in Male BSPP
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Polyethylene: 0 to 10 bar
    Sintered bronze: 0 to 12 bar
    316L Stainless Steel:     0 to 12 bar
  • Working Temperature: Polyethylene: -10°C to +80°C
    Sintered bronze: -20°C to +150°C
    316L Stainless Steel:     -20°C to +180°C
Advantages:
      3 materials available
      - Polyethylene: optimum exhaust flow rate and noise attention
      - Sintered bronze: robust and economic
      - 316L stainless Steel: increased chemical and mechanical resistance
  • incorporated flow control regulator on 2 versions
Regulations:
  • RoHS
  • PED
  • REACH
  • 2003/10/CE
  • OSHA
Component Materials:
  • Body: Brass (0670-0673-0675-0671-0677-0672)
    Polymer (0674-0676)
    Stainless Steel (0682-0683)
  • Silencer: Sintered Bronze (0670-0673-0675-0671-0677-0672)
    Polymer (0674-0676)
    Stainless Steel (0682-0683)
Part Number BSPP (C) E F G H Wt (Kg)
0682 00 10 G1/8" 8 mm 7 mm 14 mm 15 mm .009 kg
0682 00 13 G1/4" 8 mm 7 mm 17 mm 15 mm .013 kg
0682 00 17 G3/8" 10 mm 8 mm 22 mm 18 mm .020 kg
0682 00 21 G1/2" 12 mm 10 mm 27 mm 22 mm .038 kg
0682 00 27 G3/4" 15 mm 12 mm 32 mm 27 mm .066 kg
0682 00 34 G1" 18 mm 14 mm 38 mm 32 mm .118 kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
