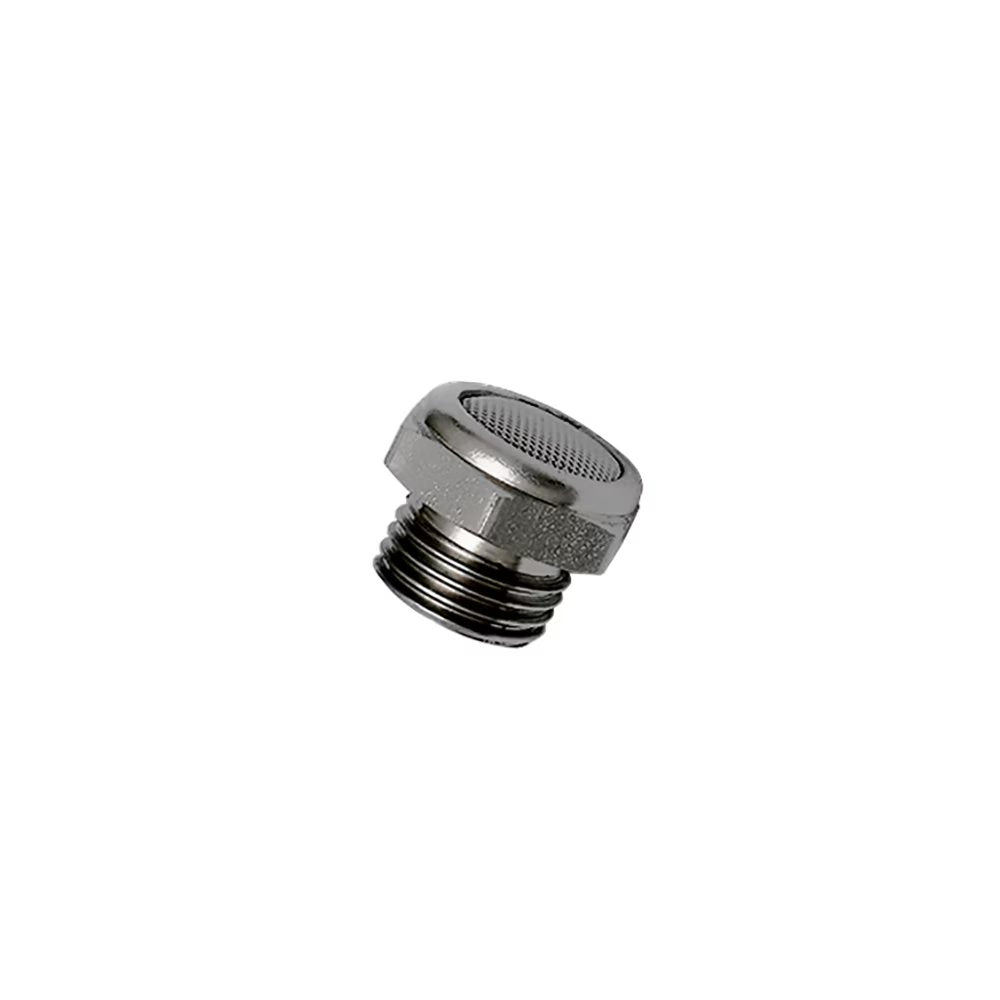

0682 00 10 by Parker | Legris Threaded Silencer | G1/8" Male BSPP Thread | 15 mm length | Stainless Steel | Pack of 5
by Parker Hannifin
Silencers:0682 Compact Silencer, Male BSPP Thread
Package Quantity: 5 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–29 | $86.25 |
| 30–59 | $78.00 |
| 60+ | $68.82 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
No Orientation
Ends Configuration:
Material(s):
Special Properties:
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | BSPP (C) | E | F | G | H | Wt (Kg) |
| 0682 00 10 | G1/8" | 8 mm | 7 mm | 14 mm | 15 mm | .009 kg |
| 0682 00 13 | G1/4" | 8 mm | 7 mm | 17 mm | 15 mm | .013 kg |
| 0682 00 17 | G3/8" | 10 mm | 8 mm | 22 mm | 18 mm | .020 kg |
| 0682 00 21 | G1/2" | 12 mm | 10 mm | 27 mm | 22 mm | .038 kg |
| 0682 00 27 | G3/4" | 15 mm | 12 mm | 32 mm | 27 mm | .066 kg |
| 0682 00 34 | G1" | 18 mm | 14 mm | 38 mm | 32 mm | .118 kg |
