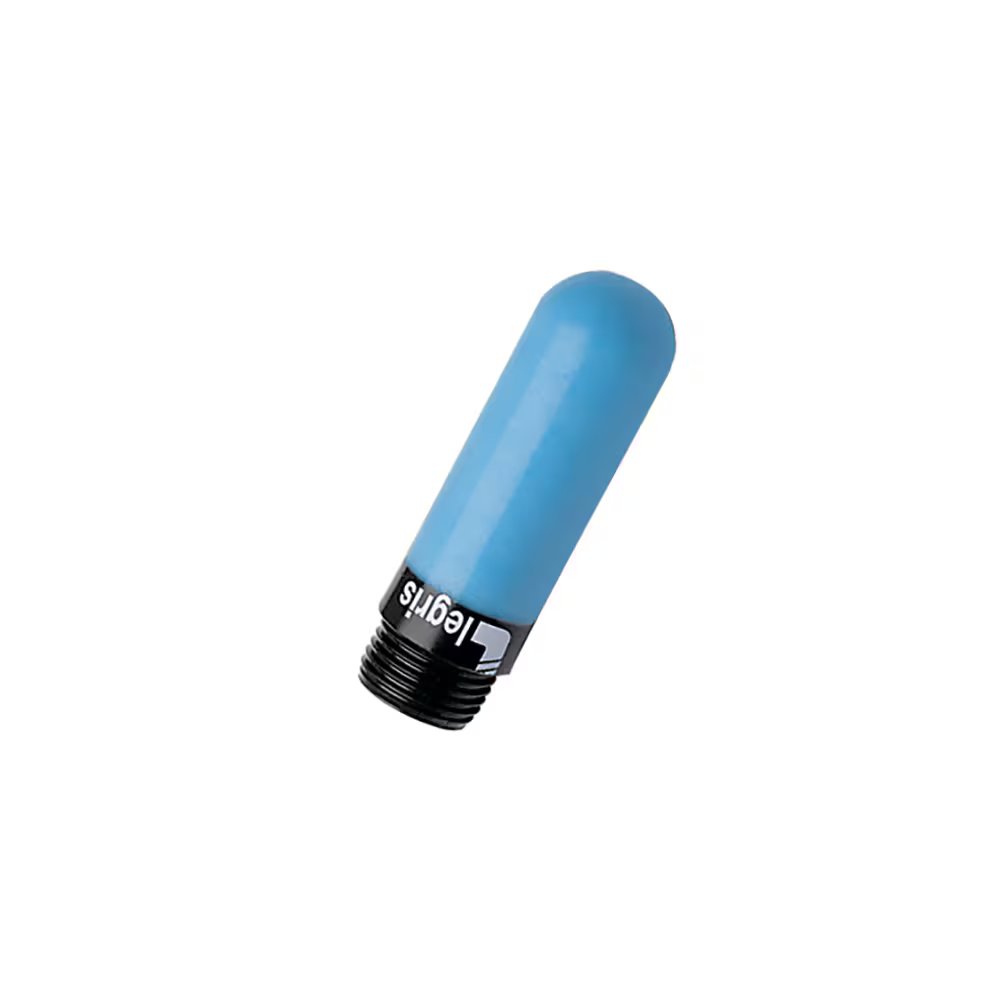

0674 00 10 by Parker | Legris Threaded Silencer | G1/8" Male BSPP Thread | 34 mm Length | Polyethylene | Pack of 10

0674 00 10 by Parker | Legris Threaded Silencer | G1/8" Male BSPP Thread | 34 mm Length | Polyethylene | Pack of 10

Sale price$45.98

by Parker Hannifin
Silencers:0674 Polymer Silencer, Male BSPP and Metric Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
20–39 $43.22
40–79 $39.08
80+ $34.49
Discounts applied in cart/checkout.

Product Data:

Series:
  • 0674 Series
Shape:

No Orientation

Ends Configuration:
  • 1/8in Male BSPP
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Polyethylene: 0 to 10 bar
    Sintered bronze: 0 to 12 bar
    316L Stainless Steel:     0 to 12 bar
  • Working Temperature: Polyethylene: -10°C to +80°C
    Sintered bronze: -20°C to +150°C
    316L Stainless Steel:     -20°C to +180°C
Advantages:
      3 materials available
      - Polyethylene: optimum exhaust flow rate and noise attention
      - Sintered bronze: robust and economic
      - 316L stainless Steel: increased chemical and mechanical resistance
  • incorporated flow control regulator on 2 versions
Regulations:
  • RoHS
  • PED
  • REACH
  • 2003/10/CE
  • OSHA
Component Materials:
  • Body: Brass (0670-0673-0675-0671-0677-0672)
    Polymer (0674-0676)
    Stainless Steel (0682-0683)
  • Silencer: Sintered Bronze (0670-0673-0675-0671-0677-0672)
    Polymer (0674-0676)
    Stainless Steel (0682-0683)
Part Number NPT (C) E G L Wt (Oz)
0611 00 11 1/8" .24" .49" 1.34" .07 oz
0611 00 14 1/4" .28" .61" 1.67" .11 oz
0611 00 22 1/2" .43" .93" 3.07" .35 oz
Part Number BSPP (C) E G L Wt (Kg)
0674 00 19 M5X0.8 4 mm 6.5 mm 23 mm .001 Kg
0674 00 10 G1/8" 6 mm 12.5 mm 34 mm .002 Kg
0674 00 13 G1/4" 7 mm 15.5 mm 42.5 mm .003 Kg
0674 00 17 G3/8" 11.5 mm 181.5 mm 67.5 mm .006 Kg
0674 00 21 G1/2" 11 mm 23.5 mm 78 mm .010 Kg
0674 00 27 G3/4" 15.5 mm 38.5 mm 131 mm .040 Kg
0674 00 34 G1" 19.5 mm 49 mm 160 mm .050 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
