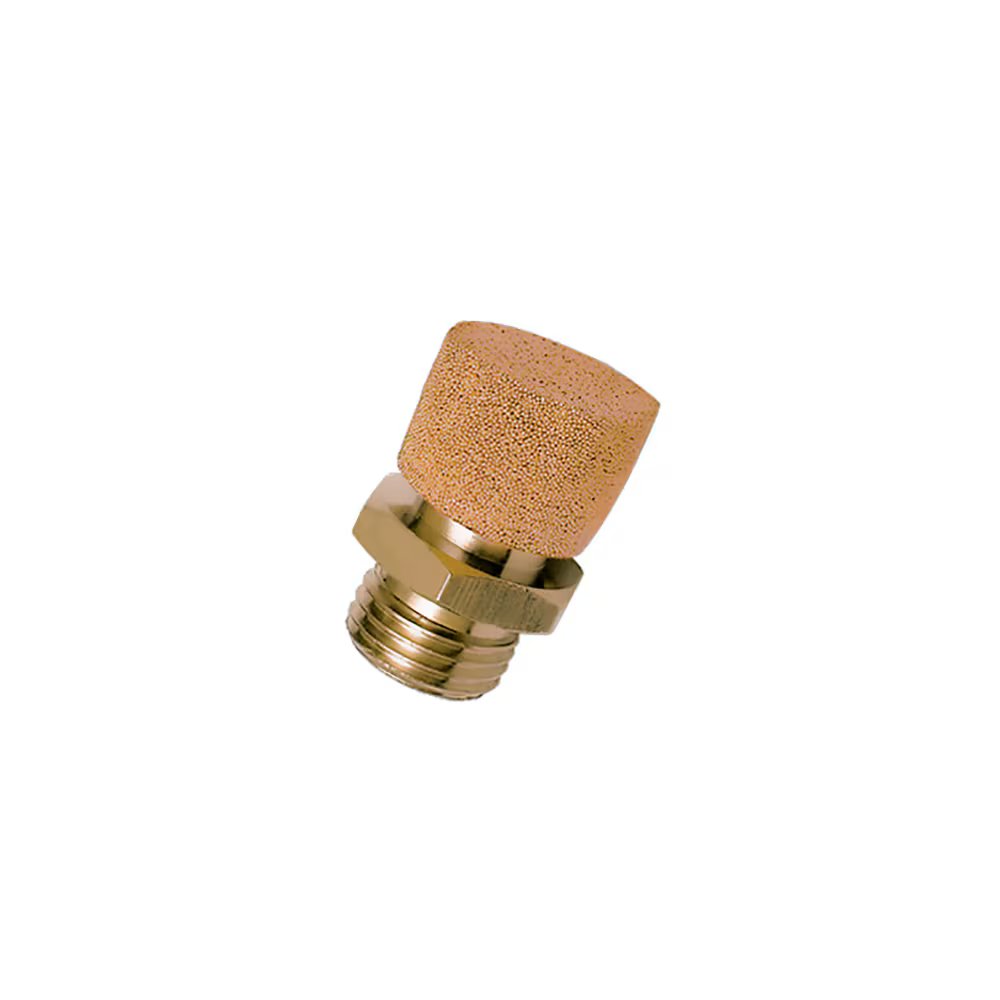

0672 00 17 by Parker | Legris Flow Control Silencer | 3/8" Male BSPP Thread | 33 mm Max Length | Brass | Pack of 10

0672 00 17 by Parker | Legris Flow Control Silencer | 3/8" Male BSPP Thread | 33 mm Max Length | Brass | Pack of 10

Sale price$221.05

by Parker Hannifin
Silencers:0672 Flow Control Silencer, Male BSPP Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
20–29 $207.79
30–59 $187.89
60+ $165.79
Discounts applied in cart/checkout.

Product Data:

Series:
  • 0672 Series
Shape:

No Orientation

Ends Configuration:
  • 3/8in Male BSPP
Technical Characteristics):
  • Compatible Fluids: Compressed air
  • Working Pressure: Polyethylene: 0 to 10 bar
    Sintered bronze: 0 to 12 bar
    316L Stainless Steel:     0 to 12 bar
  • Working Temperature: Polyethylene: -10°C to +80°C
    Sintered bronze: -20°C to +150°C
    316L Stainless Steel:     -20°C to +180°C
Advantages:
      3 materials available
      - Polyethylene: optimum exhaust flow rate and noise attention
      - Sintered bronze: robust and economic
      - 316L stainless Steel: increased chemical and mechanical resistance
  • incorporated flow control regulator on 2 versions
Regulations:
  • RoHS
  • PED
  • REACH
  • 2003/10/CE
  • OSHA
Component Materials:
  • Body: Brass (0670-0673-0675-0671-0677-0672)
    Polymer (0674-0676)
    Stainless Steel (0682-0683)
  • Silencer: Sintered Bronze (0670-0673-0675-0671-0677-0672)
    Polymer (0674-0676)
    Stainless Steel (0682-0683)
Part Number NPT (C) E F G H (Min) H (Max) H1 Wt (Oz) 0672 00 10 1/8" 8 mm 14 mm 14 mm 24 mm 27 mm 18 mm .012 Kg 0672 00 13 1/4" 8 mm 17 mm 17 mm 25 mm 28 mm 19 mm .023 Kg 0672 00 17 3/8" 10 mm 22 mm 22 mm 30 mm 33 mm 24 mm .033 Kg 0672 00 21 1/2" 12 mm 27 mm 27 mm 39 mm 42 mm 33 mm .044 Kg
