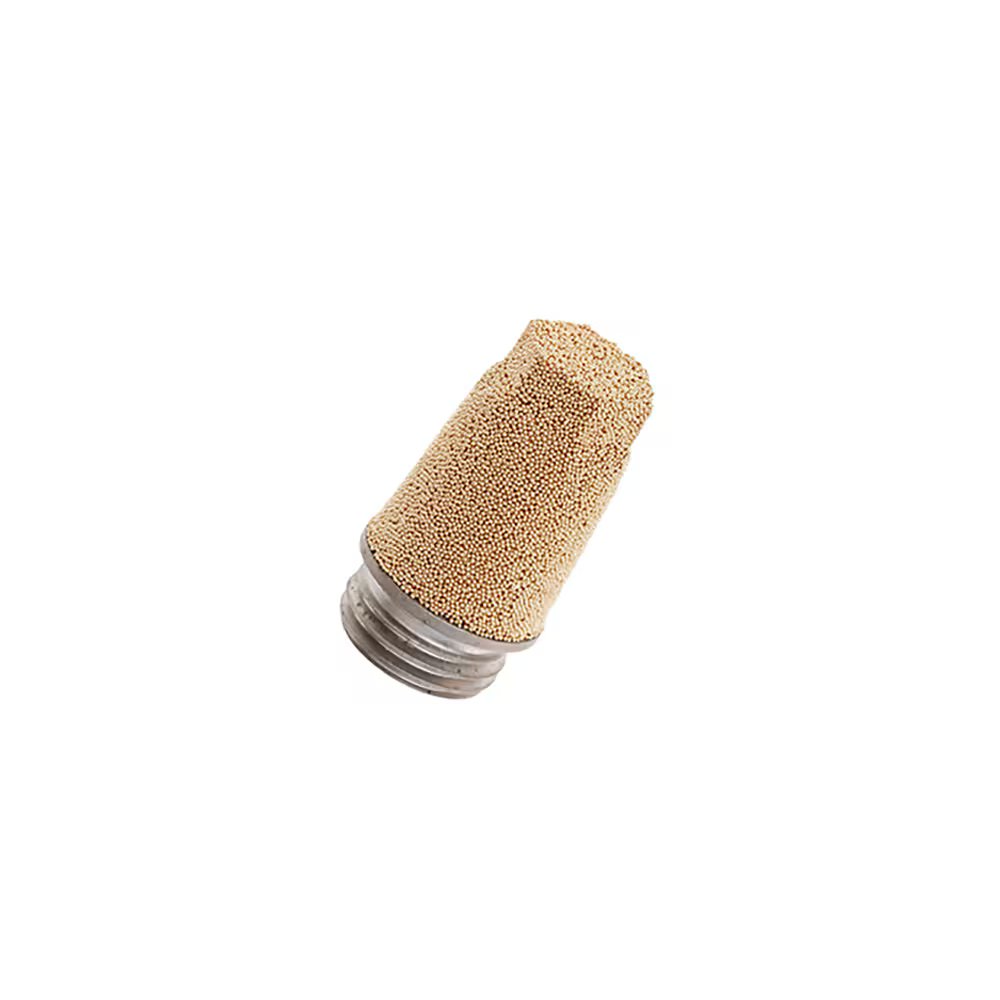

0670 00 34 by Parker | Legris Silencer | G1" Male BSPP Thread | 60 mm Length | Bronze | Pack of 5

0670 00 34 by Parker | Legris Silencer | G1" Male BSPP Thread | 60 mm Length | Bronze | Pack of 5

Sale price$258.71

by Parker Hannifin
Silencers:0670 Threaded Silencer, Male BSPP Thread

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
5–14 $243.19
15–29 $219.90
30+ $194.03
Discounts applied in cart/checkout.

Product Data:

Series:
  • 0670 Series
Shape:

No Orientation

Ends Configuration:
  • 1in Male BSPP
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Polyethylene: 0 to 10 bar
    Sintered bronze: 0 to 12 bar
    316L Stainless Steel:     0 to 12 bar
  • Working Temperature: Polyethylene: -10°C to +80°C
    Sintered bronze: -20°C to +150°C
    316L Stainless Steel:     -20°C to +180°C
Advantages:
      3 materials available
      - Polyethylene: optimum exhaust flow rate and noise attention
      - Sintered bronze: robust and economic
      - 316L stainless Steel: increased chemical and mechanical resistance
  • incorporated flow control regulator on 2 versions
Regulations:
  • RoHS
  • PED
  • REACH
  • 2003/10/CE
  • OSHA
Component Materials:
  • Body: Brass (0670-0673-0675-0671-0677-0672)
    Polymer (0674-0676)
    Stainless Steel (0682-0683)
  • Silencer: Sintered Bronze (0670-0673-0675-0671-0677-0672)
    Polymer (0674-0676)
    Stainless Steel (0682-0683)
Part Number UNF/NPT (C) J G L L1 Wt (Oz)
0670 00 10 G1/8" 7 mm 12 mm 20.5 mm 15 mm .007 Kg
0670 00 13 G1/4" 8 mm 15 mm 24.5 mm 18.5 mm .013 Kg
0670 00 17 G3/8" 10 mm 19 mm 37 mm 29 mm .033 Kg
0670 00 21 G1/2" 14 mm 23 mm 40 mm 31 mm .049 Kg
0670 00 27 G3/4" 16.5 mm 39.5 mm 51 mm 40.5 mm .092 Kg
0670 00 34 G1" 20 mm 36 mm 60 mm 49.5 mm .140 Kg
