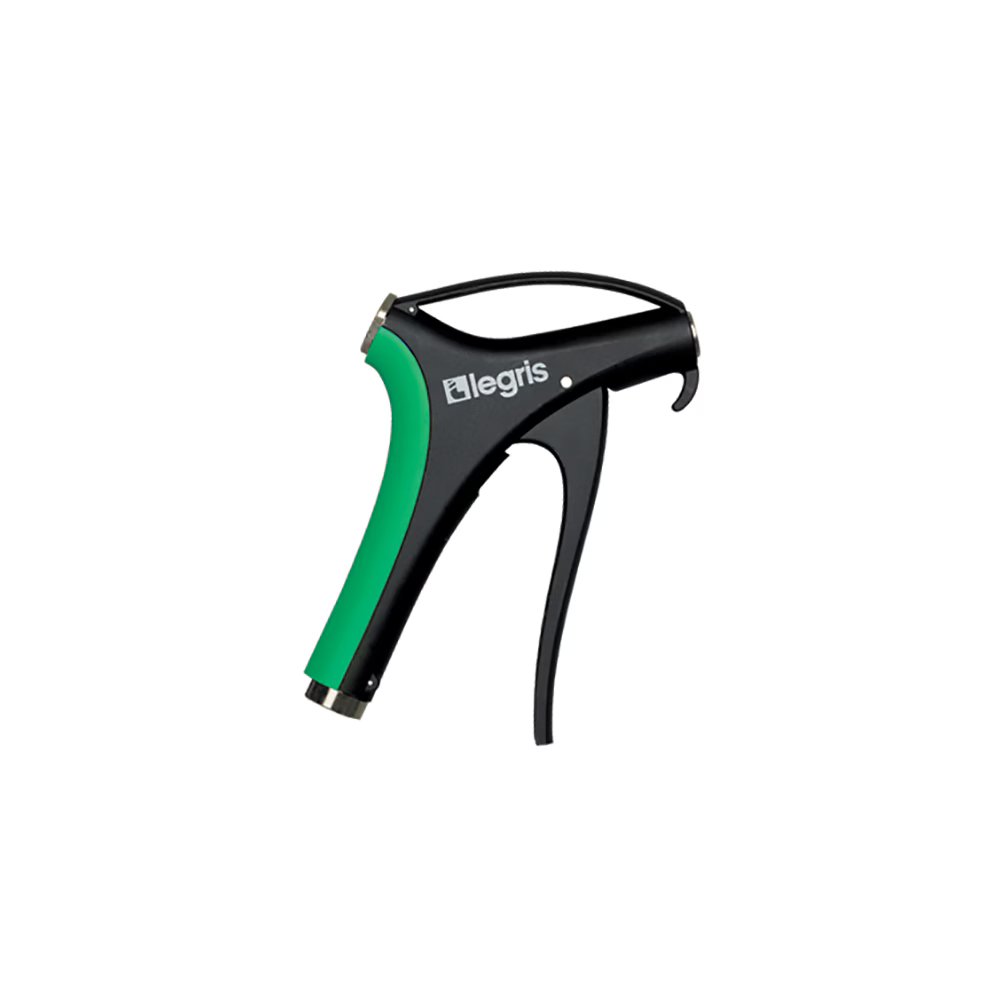

0653 66 13 by Parker | Legris Blowgun w/ Interchangeable Pillars | 1/4" Female BSPP x M12.1.25 Nozzle Thread | 151 mm Length | Polymer | Pack of 5

0653 66 13 by Parker | Legris Blowgun w/ Interchangeable Pillars | 1/4" Female BSPP x M12.1.25 Nozzle Thread | 151 mm Length | Polymer | Pack of 5

Sale price$189.26

by Parker Hannifin
Value-Added Polymer Blowguns:0653 Energy Saving Blowgun, Lower Connection with Interchangeable Nozzle, Female BSPP Thread

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
20–29 $177.90
30–59 $160.87
60+ $141.95
Discounts applied in cart/checkout.

Product Data:

Shape:

No Orientation

Material(s):
  • Polymer
  • Nickel-Plated Brass
Seal Material(s):
  • Buna-N/Nitrile Rubber
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 0 to 10 bar
  • Working Temperature: Air: -15°C to +50°C
    Dry Air: -20°C to +80°C
  • Tubes: Tubes and hoses
Advantages:
      Basic & standard blowguns:
  • In compliance with international noise and pressure regulations
  • Swivel nozzles for directional jet
      • Safety blowguns:
  • Meets OSHA or SUVA standards according to model and complies with:
      • - noise exposure requirements
      - provisions relating to outlet pressure
  • Energy-saving blowguns
  • Limited flow for lower energy consumption
  • Kits and nozzles: to ensure a suitable product
Regulations:
  • RoHS
  • PED
  • REACH
  • OSHA
  • Protection of design:
    All designs and models of Parker Legris blowguns have been registered with the following numbers: 13 224 / 13 225 / 13 226
  • DI: 2003/10/CE
    Regulation relating to exposure to noise, particularly with regard to risks to hearing. The noise level must be less than 87 dBA.
Component Materials:
  • Body: Technical Polymer
  • Connection: Nickel-Plated Brass
  • Nozzle:
    - Aluminum (standard blowgun)
    - Nickel-Plated Brass (Safety and other blowguns)
  • Trigger: Technical Polymer
Part Number C C1 F H H1 L Kg
0653 66 13 1/4" M12x1.25 20 mm 117 mm 34 mm 147 mm .144 Kg

Flow characteristics depend on the type of nozzle used, delivered without nozzle.
An energy saving calculator is available.
