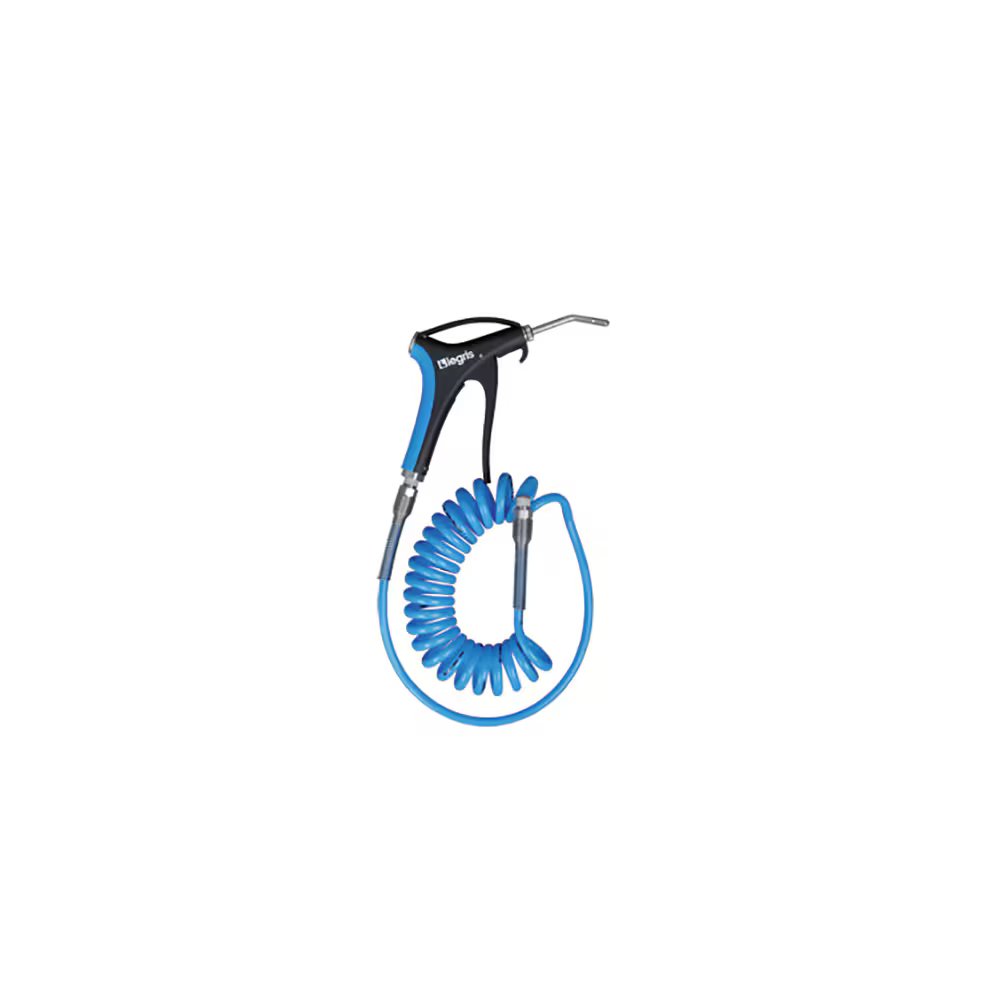

0631 00 05 by Parker | Legris Blowgun Kit w/ Short Angled Nozzle | 1/4" Male BSPT Thread | 16 mm Hex | Blue | Polymer

0631 00 05 by Parker | Legris Blowgun Kit w/ Short Angled Nozzle | 1/4" Male BSPT Thread | 16 mm Hex | Blue | Polymer

Sale price$180.38

by Parker Hannifin
Blowgun Kits:0631..05 Blowgun Kit Lower Connection with Short Angled Nozzle, Male BSPT Thread
Buy More, Save More!
Quantity Price Each
20–29 $169.56
30–59 $153.32
60+ $135.29
Discounts applied in cart/checkout.

Product Data:

Series:
  • 0631 Series
Shape:

No Orientation

Material(s):
  • Polymer
  • Nickel-Plated Brass
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 0 to 10 bar
  • Working Temperature: Air: -15°C to +50°C
    Dry Air: -20°C to +80°C
  • Tubes: Recoil tubing
Advantages:
      Kit contents:
      - one blowgun
      - a 4 meter recoil tube
      - one R1/4 threaded fitting, external diameter 8 mm
  • Safety
  • Optimization of your energy consumption
  • Minimum pressure drop
Regulations:
  • RoHS
  • PED
  • REACH
  • OSHA
  • Protection of design:
    All designs and models of Parker Legris blowguns have been registered with the following numbers: 13 224 / 13 225 / 13 226
  • DI: 2003/10/CE
    Regulation relating to exposure to noise, particularly with regard to risks to hearing. The noise level must be less than 87 dBA.
Component Materials:
  • Body: Technical Polymer
  • Insert: Nickel-Plated Brass
  • Nozzle:
    - Aluminum (standard blowgun)
    - Nickel-Plated Brass (Safety and other blowguns)
  • Trigger: Technical Polymer
  • Tube: Recoil Polyurethane
Part Number C F H H1 L Kg
0631 00 05 1/4" 16 mm 195.5 mm 148.5 mm 163 mm .536 Kg

Flow characteristics, noise level and norm compliance are identical to those of our blowguns ((0656 66 13).

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
