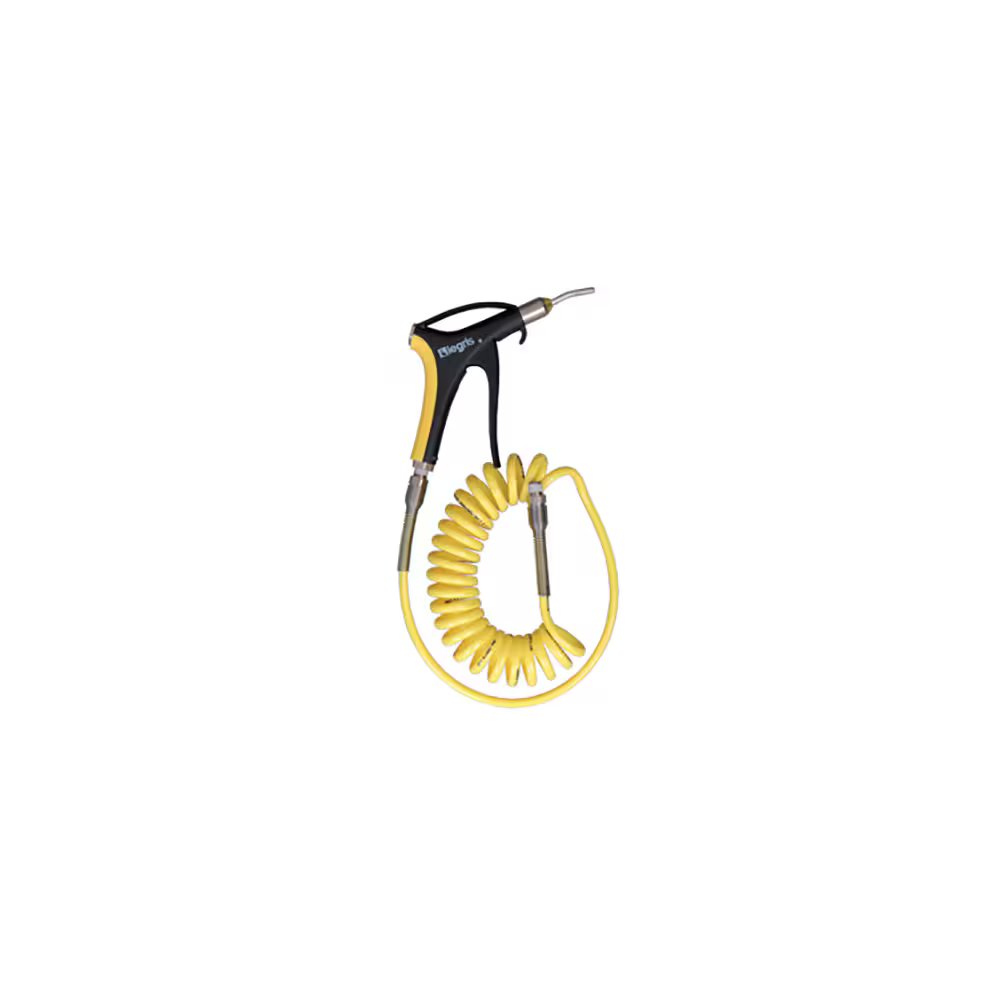

0631 00 01 by Parker | Legris Safety Blowgun Kit | 1/4" Male BSPT Thread | 16 mm Hex | Yellow | Polymer

0631 00 01 by Parker | Legris Safety Blowgun Kit | 1/4" Male BSPT Thread | 16 mm Hex | Yellow | Polymer

Sale price$267.16

by Parker Hannifin
Blowgun Kits:0631..01 Safety Blowgun Kit, Lower Connection, Male BSPT Thread
Buy More, Save More!
Quantity Price Each
5–14 $251.13
15–29 $227.09
30+ $200.37
Discounts applied in cart/checkout.

Product Data:

Series:
  • 0631 Series
Shape:

No Orientation

Material(s):
  • Polymer
  • Nickel-Plated Brass
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 0 to 10 bar
  • Working Temperature: Air: -15°C to +50°C
    Dry Air: -20°C to +80°C
  • Tubes: Recoil tubing
Advantages:
      Kit contents:
      - one blowgun
      - a 4 meter recoil tube
      - one R1/4 threaded fitting, external diameter 8 mm
  • Safety
  • Optimization of your energy consumption
  • Minimum pressure drop
Regulations:
  • RoHS
  • PED
  • REACH
  • OSHA
  • Protection of design:
    All designs and models of Parker Legris blowguns have been registered with the following numbers: 13 224 / 13 225 / 13 226
  • DI: 2003/10/CE
    Regulation relating to exposure to noise, particularly with regard to risks to hearing. The noise level must be less than 87 dBA.
Component Materials:
  • Body: Technical Polymer
  • Insert: Nickel-Plated Brass
  • Nozzle:
    - Aluminum (standard blowgun)
    - Nickel-Plated Brass (Safety and other blowguns)
  • Trigger: Technical Polymer
  • Tube: Recoil Polyurethane
Part Number C F H H1 L Kg
0631 00 01 1/4" 16 mm 198.5 mm 148.5 mm 154 mm .575 Kg

Flow characteristics, noise level and norm compliance are identical to those of our blowguns (0654 00 13).
