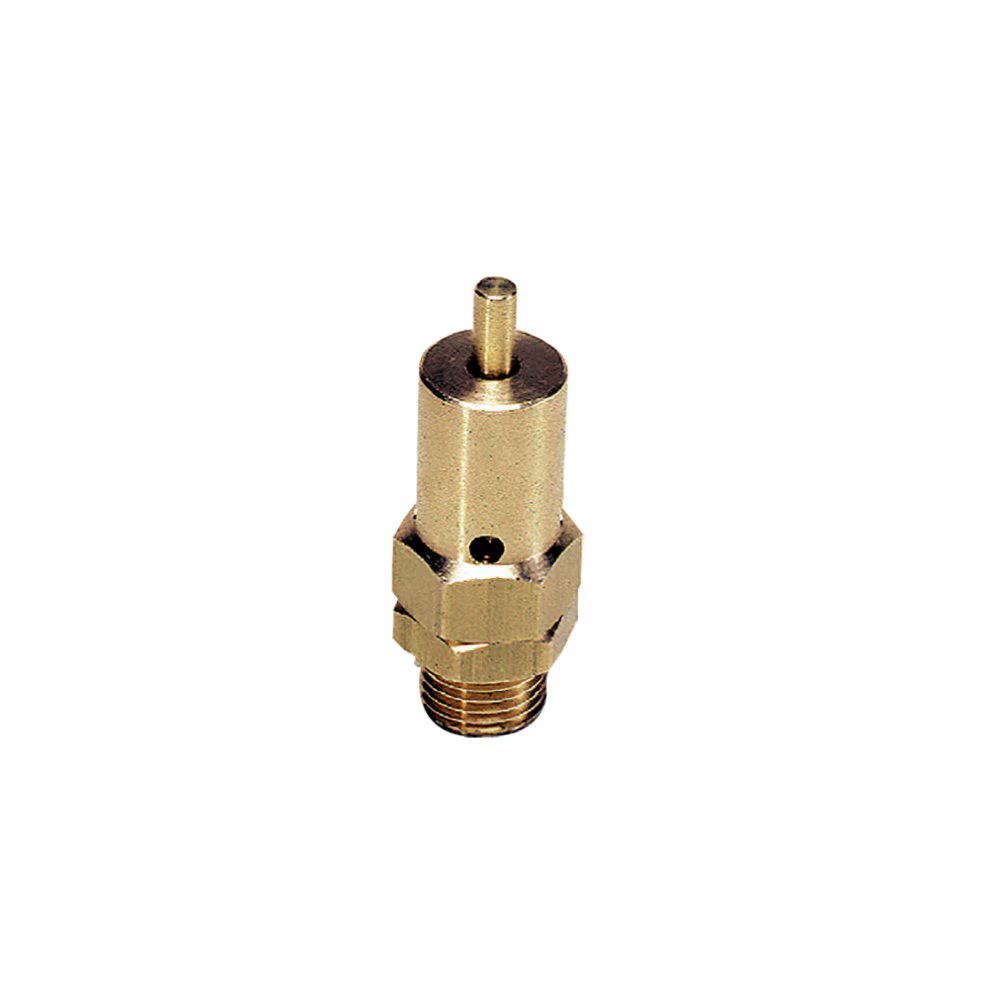

0630 06 13 by Parker | Pressure Relief Valve | 1/4" Male BSPP Thread | 17 mm Hex | Straight | Brass

0630 06 13 by Parker | Pressure Relief Valve | 1/4" Male BSPP Thread | 17 mm Hex | Straight | Brass

Sale price$32.04

by Parker Hannifin
Needle Valve Series:0630 Pressure Relief Valve, Male BSPP Thread
Buy More, Save More!
Quantity Price Each
20–39 $30.12
40–79 $27.23
80+ $24.03
Discounts applied in cart/checkout.

Product Data:

Series:
  • 0630 Series
Shape:

Straight

Material(s):
  • Brass
Technical Characteristics:
  • Compatible Fluids: Compressed air, water, industrial fluids, etc.
  • Working Pressure: 0 to 120 bar
  • Working Temperature: -20°C to +100°C (except model 0510)
Advantages:
  • Manual flow adjustment
  • Numerous valve and safety accessory configurations
Regulations:
  • PED
  • RoHS
  • REACH
Component Materials:
  • Stem nut: Nickel-plated brass or 316L Stainless Steel (0591)
  • Top packing washer: Brass or 316L Stainless Steel (0591)
  • Body: Nickel-plated brass or 316L Stainless Steel (0591)
  • Lever: Zamak, Nickel-plated brass or 316L Stainless Steel (0591)
  • Locking nut: Nickel-plated brass or 316L Stainless Steel (0591)
  • Needle: Nickel-plated brass or 316L Stainless Steel (0591)
  • Bottom packing washer: Mineral Fiber
Part Number C E F H Kg
0630 06 13 1/4" 9 mm 17 mm 42.5 mm .032 Kg

This valve is delivered without calibration, but can be adjusted by inserting metal washers into the hexagon (F).
Maximum working pressure: 10 bar
Calibration from 1 to 10 bar (not below)
