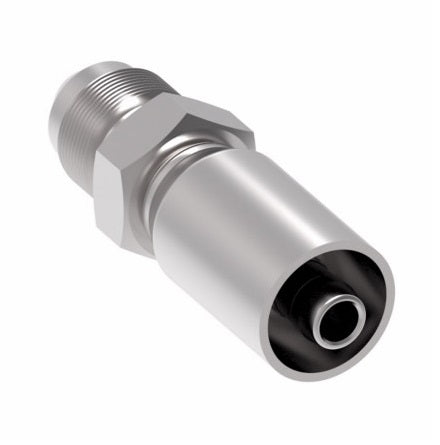

05E-505 Weatherhead by Danfoss | Everflex E Series | Male 37° JIC Rigid Crimp Fitting | -05 Male 37° JIC x -05 Hose Barb | Steel
Weatherhead by Danfoss
Everflex 'E' Series Crimp Fitting - Male 37° JIC Rigid - Straight
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $36.21 |
| 40–79 | $32.74 |
| 80+ | $28.89 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Applications: | |||
|---|---|---|---|
|
|||
| Pressure: | |||
|
|||
| Material: | |||
|
|||
| Compatible Hose: | |||
|
|||
| Warning: | |||
|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Steel Part Number |
Hose I.D. | Tube Size | Thread Size | A | Hose Cut-Off Factor |
Hole Dia. | Hex E |
| 04E-504 | 1/4" | 1/4" | 7/16-20 | 1.78" | 0.94" | 0.16" | 1/2" |
| 04E-505 | 1/4" | 5/16" | 1/2-20 | 1.78" | 0.94" | 0.19" | 9/16" |
| 04E-506 | 1/4" | 3/8" | 9/16-18 | 1.82" | 1.00" | 0.22" | 5/8" |
| 05E-505 | 5/16" | 5/16" | 1/2-20 | 1.86" | 0.94" | 0.22" | 9/16" |
| 06E-506 | 3/8" | 3/8" | 9/16-18 | 1.92" | 1.00" | 0.27" | 5/8" |
| 06E-508 | 3/8" | 1/2" | 3/4-16 | 2.08" | 1.19" | 0.27" | 13/16" |
| 08E-508 | 1/2" | 1/2" | 3/4-16 | 2.18" | 1.19" | 0.27" | 13/16" |
| 08E-510 | 1/2" | 5/8" | 7/8-14 | 2.31" | 1.25" | 0.42" | 15/16" |
| 12E-512 | 3/4" | 3/4" | 1-1/16-12 | 2.63" | 1.44" | 0.61" | 1-1/8" |
| 16E-516 | 1" | 1" | 1-5/16-12 | 2.83" | 1.50" | 0.84" | 1-3/8" |
Note: Drawings may differ from actual parts.
