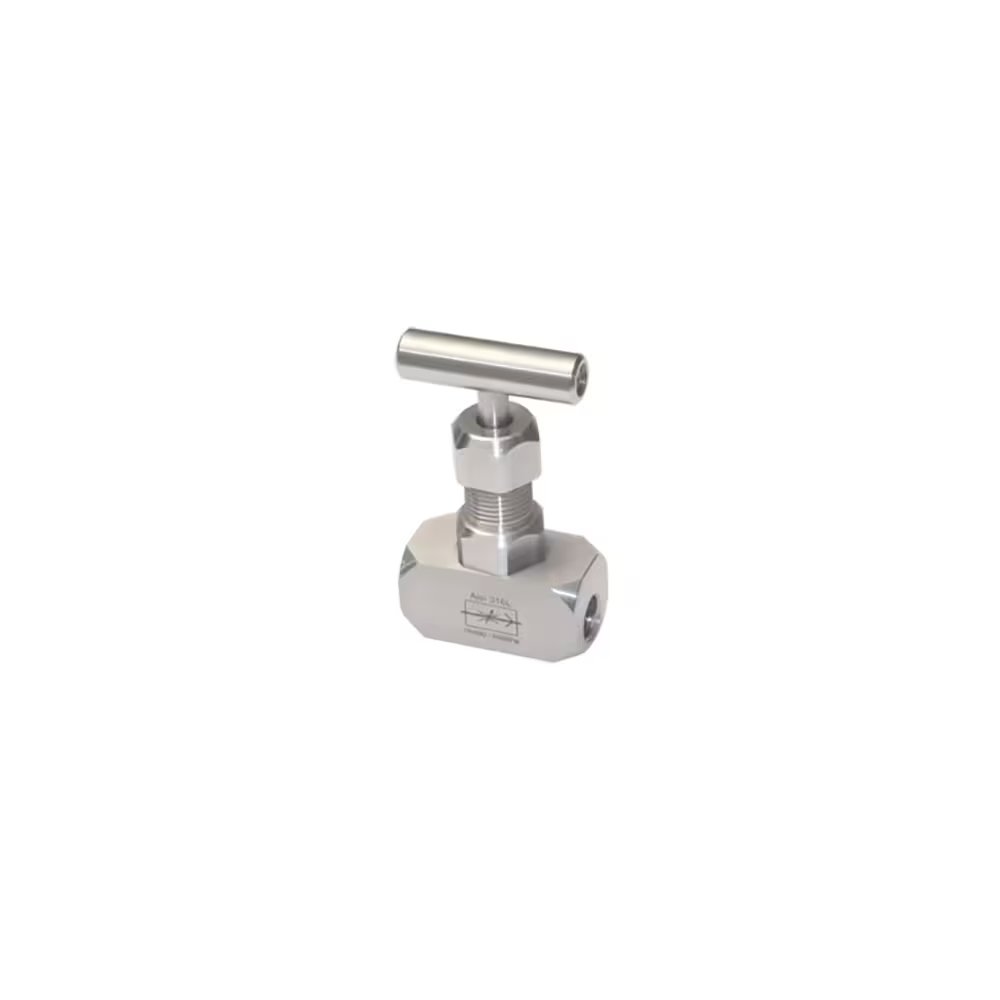

0591 05 17 by Parker | Needle Valve | 3/8" Female BSPP Thread | 22mm Hex | 104mm Length | Straight | 316L Stainless Steel

0591 05 17 by Parker | Needle Valve | 3/8" Female BSPP Thread | 22mm Hex | 104mm Length | Straight | 316L Stainless Steel

Sale price$345.65

by Parker Hannifin
Needle Valve Series:0591 Needle Valve, Female BSPP Thread
Buy More, Save More!
Quantity Price Each
5–14 $324.91
15–29 $293.80
30+ $259.24
Discounts applied in cart/checkout.

Product Data:

Series:
  • 0591 Series
Shape:

Straight

Ends Configuration:
  • 3/8in Female BSPP
  • 3/8in Female BSPP
  • Some Ends Match
Technical Characteristics:
  • Compatible Fluids: Many fluids
  • Working Pressure: 0 to 400 bar
  • Working Temperature: -20°C to +180°C
Advantages:
  • Manual flow adjustment
  • Numerous valve and safety accessory configurations
Regulations:
  • PED
  • RoHS
  • REACH
Component Materials:
  • Stem nut: Nickel-plated brass or 316L Stainless Steel (0591)
  • Top packing washer: Brass or 316L Stainless Steel (0591)
  • Body: Nickel-plated brass or 316L Stainless Steel (0591)
  • Lever: Zamak, Nickel-plated brass or 316L Stainless Steel (0591)
  • Locking nut: Nickel-plated brass or 316L Stainless Steel (0591)
  • Needle: Nickel-plated brass or 316L Stainless Steel (0591)
  • Bottom packing washer: Mineral Fiber
Part Number Diameter Nominal (DN) C F H (min) H (max) H1 L L1 Kg
0591 05 17 5 mm 3/8" 22 mm 90 mm 104 mm 30 mm 56 mm 48 mm .430 Kg
0591 06 21 6 mm 1/2" 22 mm 90 mm 104 mm 30 mm 62 mm 48 mm .478 Kg
