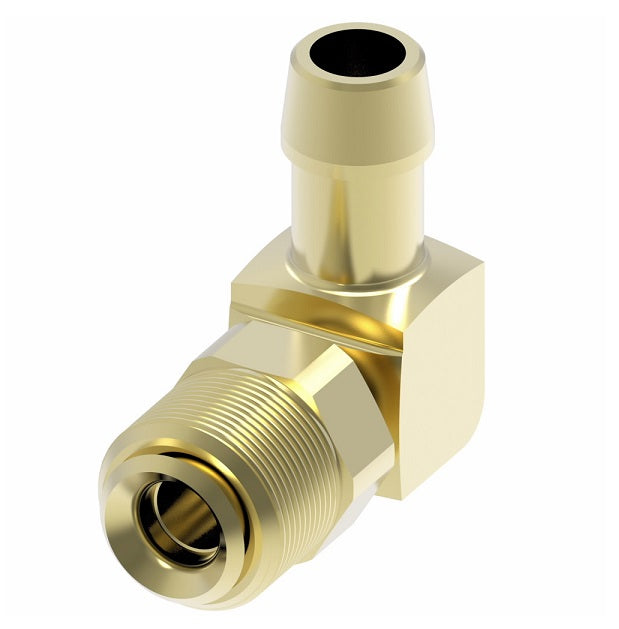

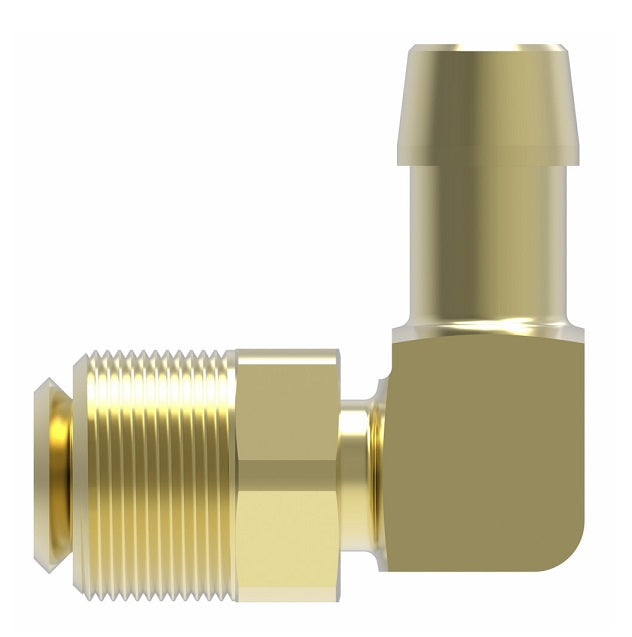

05706B-B66 Weatherhead by Danfoss | Inverted Male Swivel 90° Elbow Field Attachable Fitting | 057 'B' Series | 3/8" Male UNF x -06 Reusable Hose End | Brass
05706B-B66 Weatherhead by Danfoss | Inverted Male Swivel 90° Elbow Field Attachable Fitting | 057 'B' Series | 3/8" Male UNF x -06 Reusable Hose End | Brass
05706B-B66 Weatherhead by Danfoss | Inverted Male Swivel 90° Elbow Field Attachable Fitting | 057 'B' Series | 3/8" Male UNF x -06 Reusable Hose End | Brass

05706B-B66 Weatherhead by Danfoss | Inverted Male Swivel 90° Elbow Field Attachable Fitting | 057 'B' Series | 3/8" Male UNF x -06 Reusable Hose End | Brass

Sale price$12.85

Weatherhead by Danfoss
Field Attachable Fitting - 057 'B' Series - Male UNF x Reusable Hose End - 90° Elbow

Ideal Fitting for low pressure air, fuel and oil applications. Generally used for automotive, light truck, and small engine fuel lines.
Buy More, Save More!
Quantity Price Each
10–39 $12.08
40–79 $10.92
80+ $9.64
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Material(s):
  • Brass
Special Properties:
  • Swivel
Advantages:
  • Easy to assemble - just push the Fitting into the hose and clamp. Good selection of configurations at reasonable cost.
Note:
  • Pressure: Determined by maximum working pressure for hose size.
  • Warning: Hose can be cut or damaged if overtightened.
Material:
  • CA360 Brass.
Compatible Hose:
  • H057
  • H0105 - for air applications only.
  • H0106 - for air applications only.
  • H115 - for air applications only.
Assembly instructions:
  • 1. Slide clamp over hose.
  • 2. Insert barbed end of Fitting into hose.
  • 3. Locate band clamp in the middle of 057 'B' Series inserts and tighten.
  • 4. Position wire clamp behind bump on 057 'B' Series insert with H057 hose only.
Brass
Part Number 		Chrome Plated
Brass
Part Number 		Hose I.D. Tube Size
05704B-B64 - 1/4" 1/4"
05706B-B65 - 3/8" 5/16"
05706B-B66 - 3/8" 3/8"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
