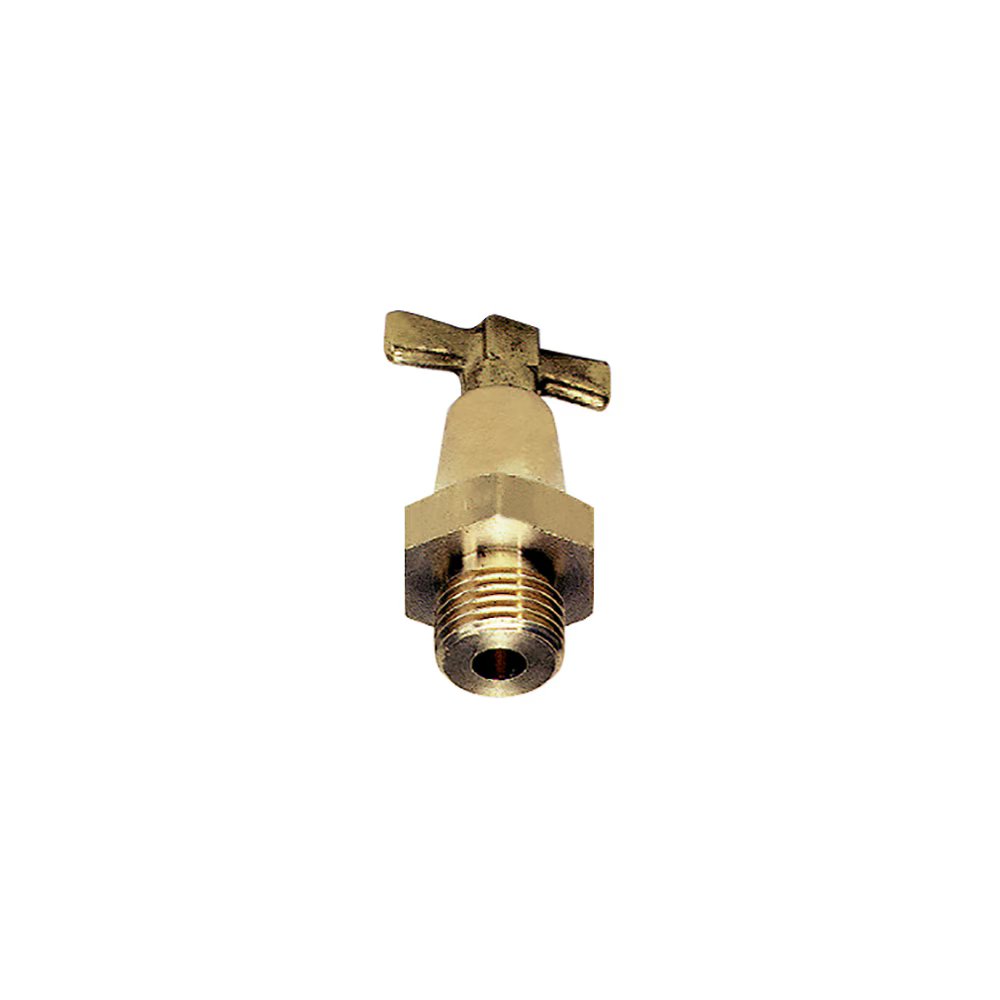

0562 05 13 by Parker | Needle Drain Valve | 1/4" Male BSPP Thread | 16mm Hex | 42.5mm Length | Straight | Brass | Pack of 10

0562 05 13 by Parker | Needle Drain Valve | 1/4" Male BSPP Thread | 16mm Hex | 42.5mm Length | Straight | Brass | Pack of 10

Sale price$200.83

by Parker Hannifin
Needle Valve Series:0562 Needle Drain Valve, Male BSPP and Metric Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
20–29 $188.78
30–59 $170.71
60+ $150.62
Discounts applied in cart/checkout.

Product Data:

Series:
  • 0562 Series
Shape:

Straight

Material(s):
  • Brass
Technical Characteristics:
  • Compatible Fluids: Compressed air, water, industrial fluids, etc.
  • Working Pressure: 0 to 120 bar
  • Working Temperature: -20°C to +100°C (except model 0510)
Advantages:
  • Manual flow adjustment
  • Numerous valve and safety accessory configurations
Regulations:
  • PED
  • RoHS
  • REACH
Component Materials:
  • Stem nut: Nickel-plated brass or 316L Stainless Steel (0591)
  • Top packing washer: Brass or 316L Stainless Steel (0591)
  • Body: Nickel-plated brass or 316L Stainless Steel (0591)
  • Lever: Zamak, Nickel-plated brass or 316L Stainless Steel (0591)
  • Locking nut: Nickel-plated brass or 316L Stainless Steel (0591)
  • Needle: Nickel-plated brass or 316L Stainless Steel (0591)
  • Bottom packing washer: Mineral Fiber
Part Number Diameter Nominal (DN) C E F H (min) H (max) Kg
0562 05 13 5 mm 1/4" 10 mm 19 mm 38.5 mm 42.5 mm .040 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
