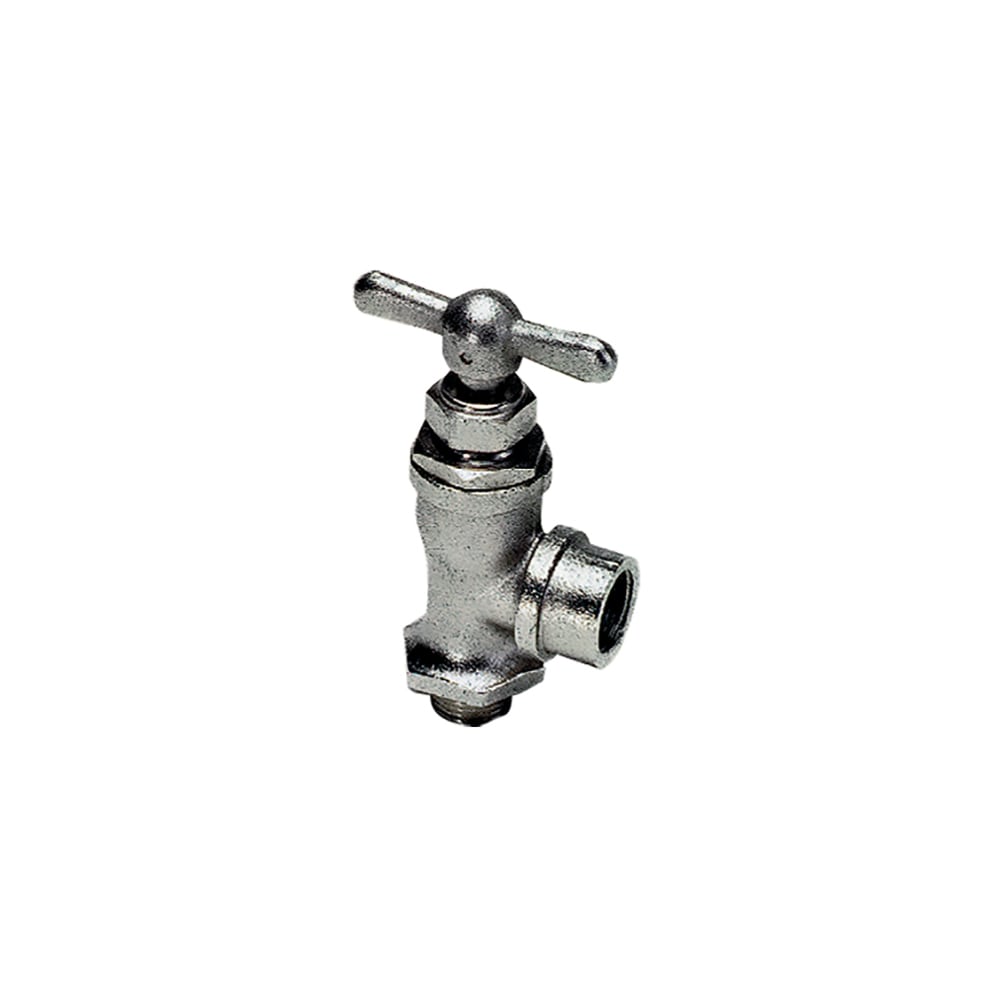

0531 06 17 by Parker | In-Line Needle Valve | 3/8" Male BSPP Thread x 3/8" Female BSPP Thread | 88mm Length | 90° Elbow | Nickel-Plated Brass

0531 06 17 by Parker | In-Line Needle Valve | 3/8" Male BSPP Thread x 3/8" Female BSPP Thread | 88mm Length | 90° Elbow | Nickel-Plated Brass

Sale price$157.90

by Parker Hannifin
Needle Valve Series:0531 Right-Angle Needle Valve, Male/Female BSPP Thread
Buy More, Save More!
Quantity Price Each
20–29 $148.43
30–59 $134.22
60+ $118.43
Discounts applied in cart/checkout.

Product Data:

Series:
  • 0531 Series
Shape:

90° Elbow

Ends Configuration:
  • 3/8in Male BSPP
  • 3/8in Female BSPP
Technical Characteristics:
  • Compatible Fluids: Compressed air, water, industrial fluids, etc.
  • Working Pressure: 0 to 120 bar
  • Working Temperature: -20°C to +100°C (except model 0510)
Advantages:
  • Manual flow adjustment
  • Numerous valve and safety accessory configurations
Regulations:
  • PED
  • RoHS
  • REACH
Component Materials:
  • Stem nut: Nickel-plated brass or 316L Stainless Steel (0591)
  • Top packing washer: Brass or 316L Stainless Steel (0591)
  • Body: Nickel-plated brass or 316L Stainless Steel (0591)
  • Lever: Zamak, Nickel-plated brass or 316L Stainless Steel (0591)
  • Locking nut: Nickel-plated brass or 316L Stainless Steel (0591)
  • Needle: Nickel-plated brass or 316L Stainless Steel (0591)
  • Bottom packing washer: Mineral Fiber
Part Number DN C E E1 H min H max H1 J L Kg
0531 04 10 4 G1/8 7 9 46 52 19 17 19 0.082
0531 06 17 6 G3/8 9.5 12 55 63 25 22 27 0.153
0531 10 21 10 G1/2 13 16 62 72 34 26 33 0.329

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
