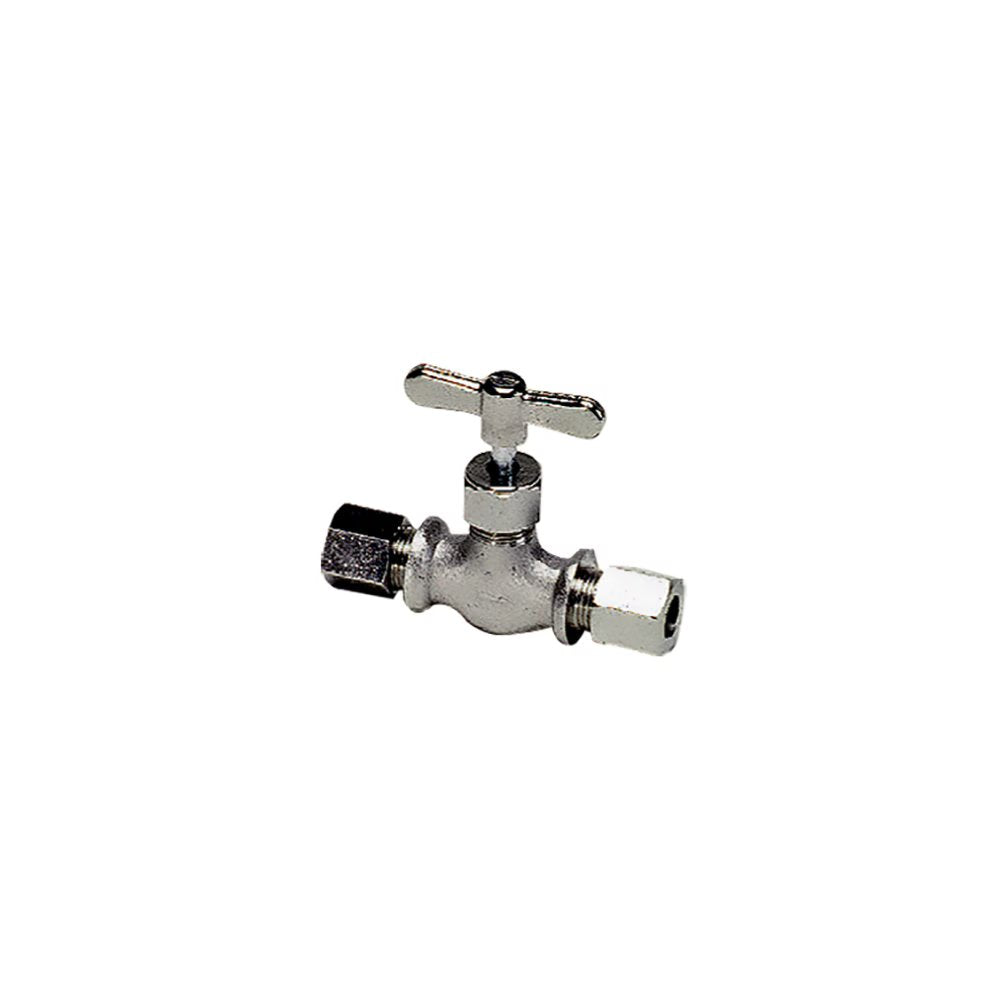

0510 05 10 by Parker | In-Line Needle Valve | 10 mm Tube Size x M16x1.5 Metric Thread | 13 mm Hex | Straight | Nickel-Plated Brass

0510 05 10 by Parker | In-Line Needle Valve | 10 mm Tube Size x M16x1.5 Metric Thread | 13 mm Hex | Straight | Nickel-Plated Brass

Sale price$72.82

by Parker Hannifin
Needle Valve Series:0510 In-Line Needle Valve with Compression Connections
Buy More, Save More!
Quantity Price Each
20–39 $68.45
40–79 $61.90
80+ $54.62
Discounts applied in cart/checkout.

Product Data:

Series:
  • 0510 Series
Shape:

Straight

Material(s):
  • Nickel-Plated Brass
  • Brass
Technical Characteristics:
  • Compatible Fluids: Compressed air, water, industrial fluids, etc.
  • Working Pressure: 0 to 120 bar
  • Working Temperature: -20°C to +100°C (except model 0510)
Advantages:
  • Manual flow adjustment
  • Numerous valve and safety accessory configurations
Regulations:
  • PED
  • RoHS
  • REACH
Component Materials:
  • Stem nut: Nickel-plated brass or 316L Stainless Steel (0591)
  • Top packing washer: Brass or 316L Stainless Steel (0591)
  • Body: Nickel-plated brass or 316L Stainless Steel (0591)
  • Lever: Zamak, Nickel-plated brass or 316L Stainless Steel (0591)
  • Locking nut: Nickel-plated brass or 316L Stainless Steel (0591)
  • Needle: Nickel-plated brass or 316L Stainless Steel (0591)
  • Bottom packing washer: Mineral Fiber
Part Number Diameter Nominal (DN) ØD C F H (min) H (max) L/2 Kg
0510 04 06 4 mm 6 mm M10x1 13 mm 42 mm 46 mm 29 mm .083 Kg
0510 05 08 8 mm 8 mm M12x1 14 mm 42 mm 46 mm 30 mm .083 Kg
0510 05 10 5 mm 10 mm M16x1.5 19 mm 42 mm 46 mm 31 mm .134 Kg
